Q-100-0042

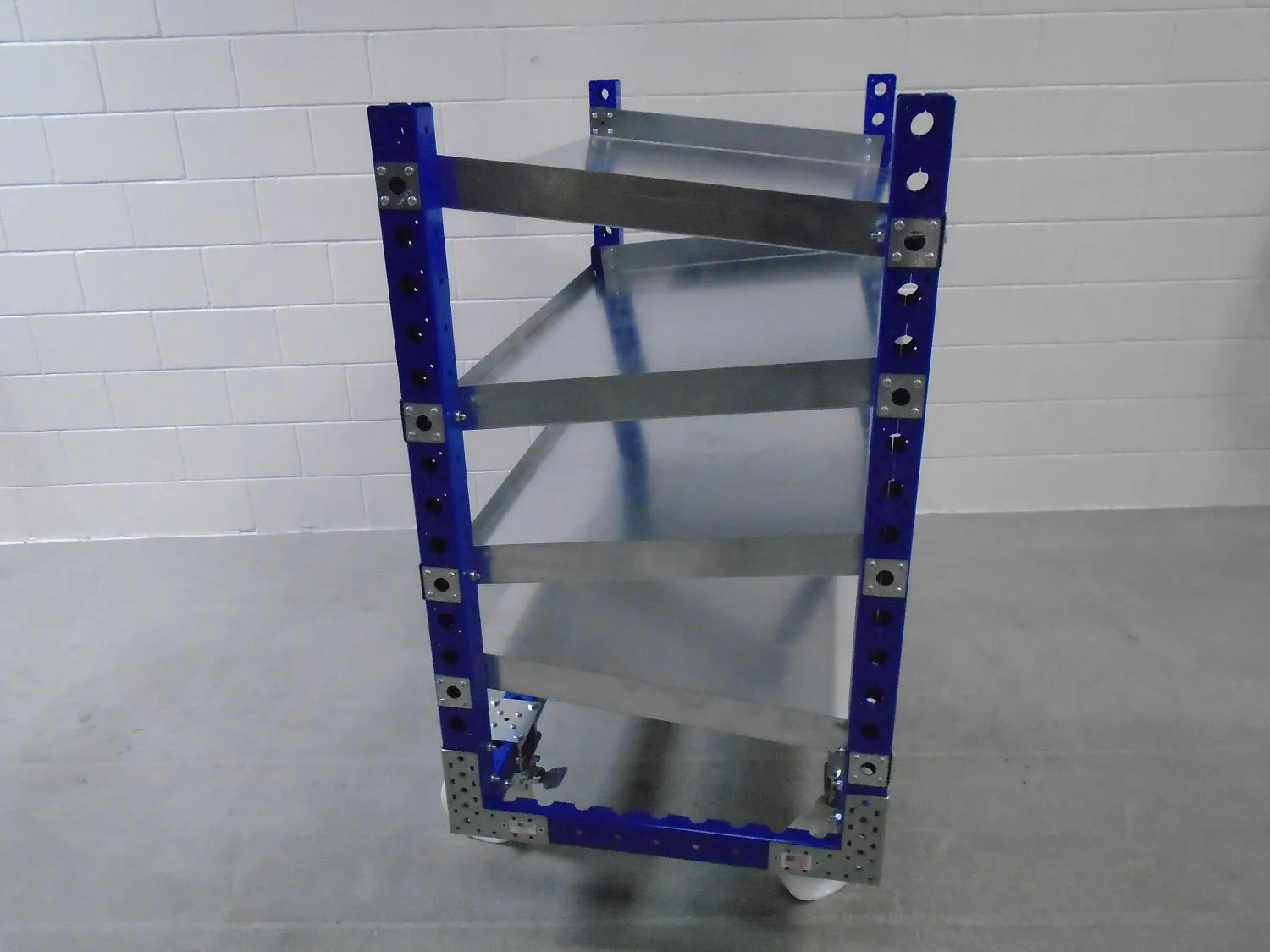

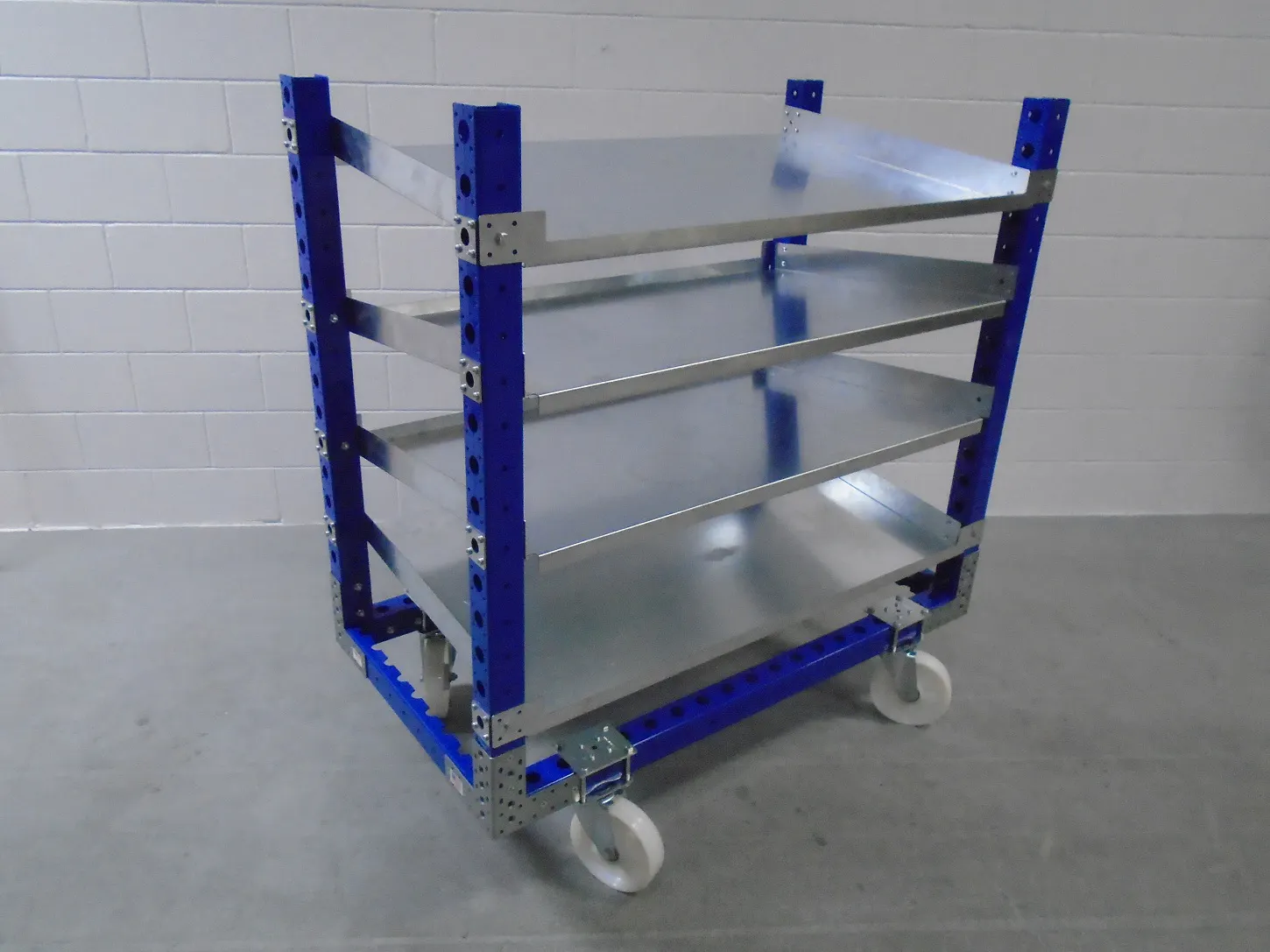

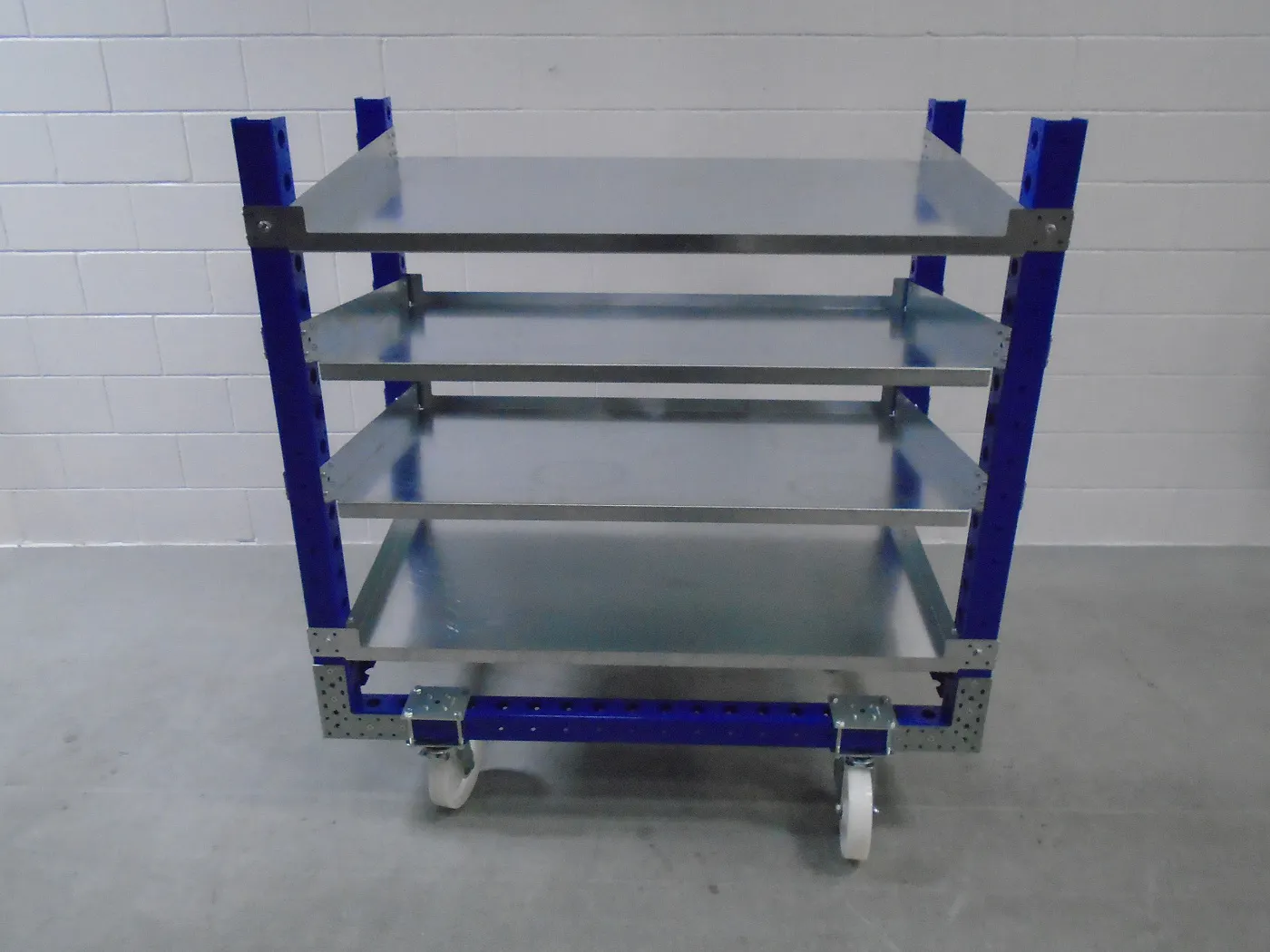

Shelf Cart 55 x 30 inch

Flow shelf cart with four flow shelves.

Technical specifications

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Transportation method: Manual

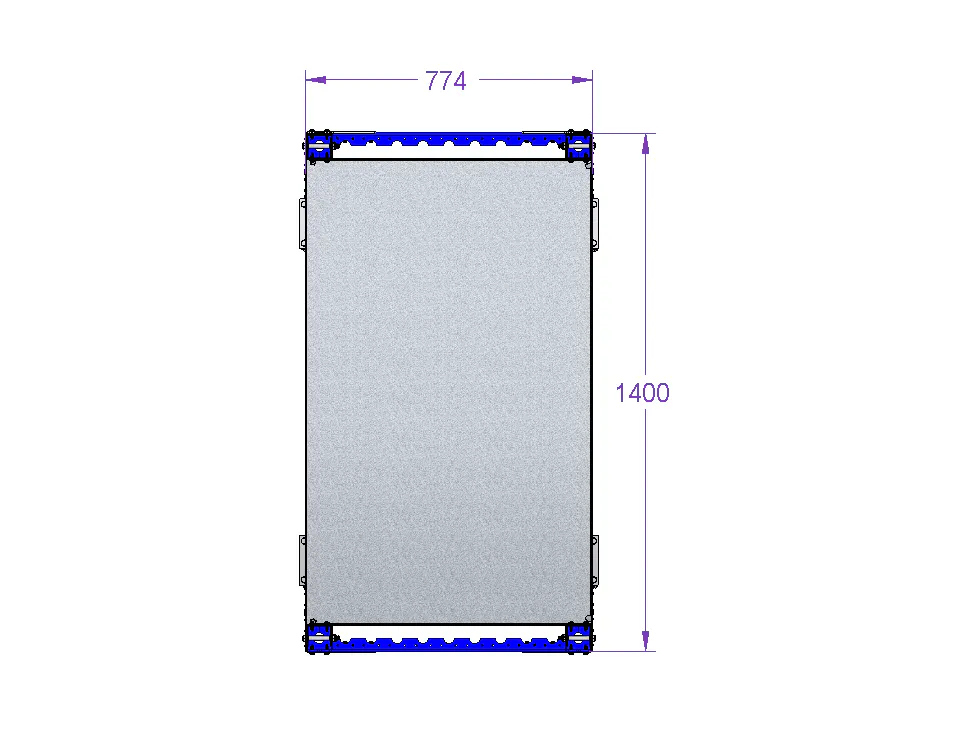

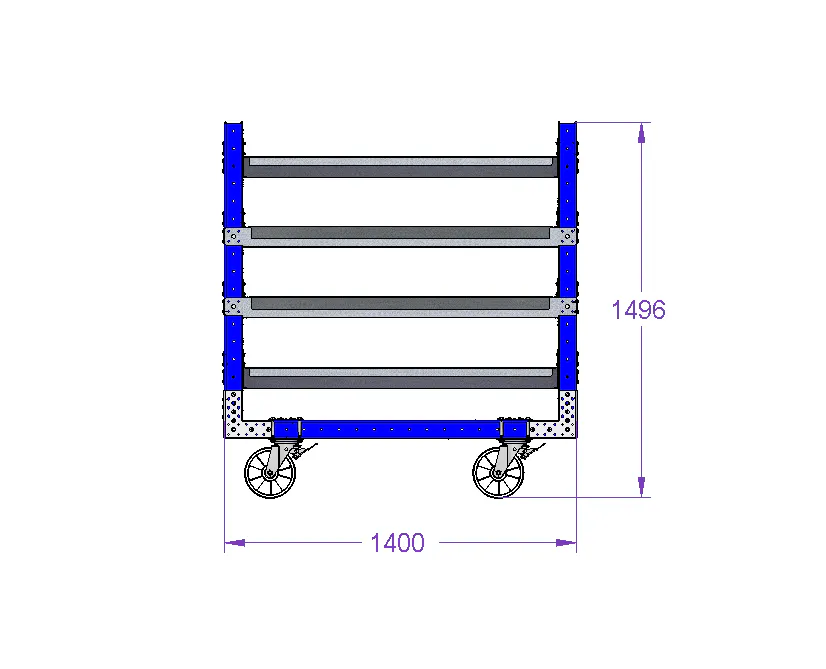

Length: 55 inch

Width: 30 inch

Caster size: 8 inch

More info

This flow shelf cart was designed to improve the presenting of materials to the operators. The shelves are equipped to transport and store totes, bins and boxes. The height of the shelves can be easily adjusted thigher or lower depending on your materials. This solution has three shelves which are used for presenting materials and the fourth shelf acts as a return shelf.

Parts included

FlexBeam™ - 1330 mm 4 Q-001-1298

FlexBeam™ 1190 mm FE 8 Q-001-1400

FlexBeam™ 770 mm FE 2 Q-001-1406

FlexPlate™ 16 Q-002-1001

Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065

Polyamide Caster 200 mm with Brake 2 Q-004-1351

Polyamide Caster 200 mm without Brake 2 Q-004-1352

Beam to Beam Corner Plate 4 Q-005-1356

64 mm FlexBeam™ Collet 8 Q-005-1426

Locking Nut M10 48 Q-006-1042

Hex Head - M10 x 90 mm 24 Q-006-1132

Extra Low Head - M10 x 90 mm 16 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 128 Q-006-1384

Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410

FlowShelf - 1400 x 772 mm 4 Q-016-0019
