Shelf Cart - 63 x 33 inch
Shelf Cart - 63 x 33 inch
Shelf Cart - 63 x 33 inch
Shelf Cart - 63 x 33 inch
Shelf Cart - 63 x 33 inch
Shelf Cart - 63 x 33 inch
Shelf Cart - 63 x 33 inch
Q-100-0633

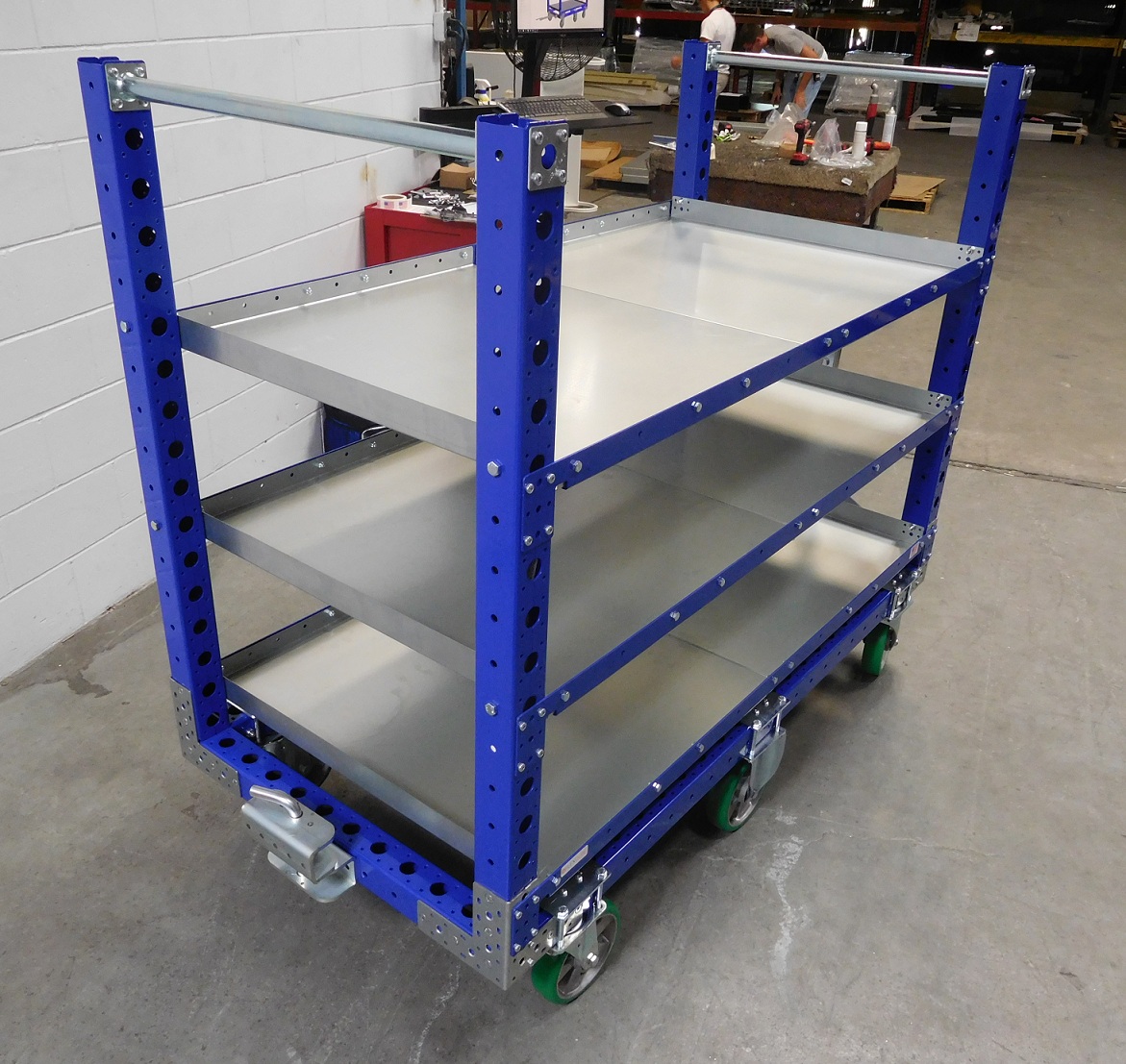

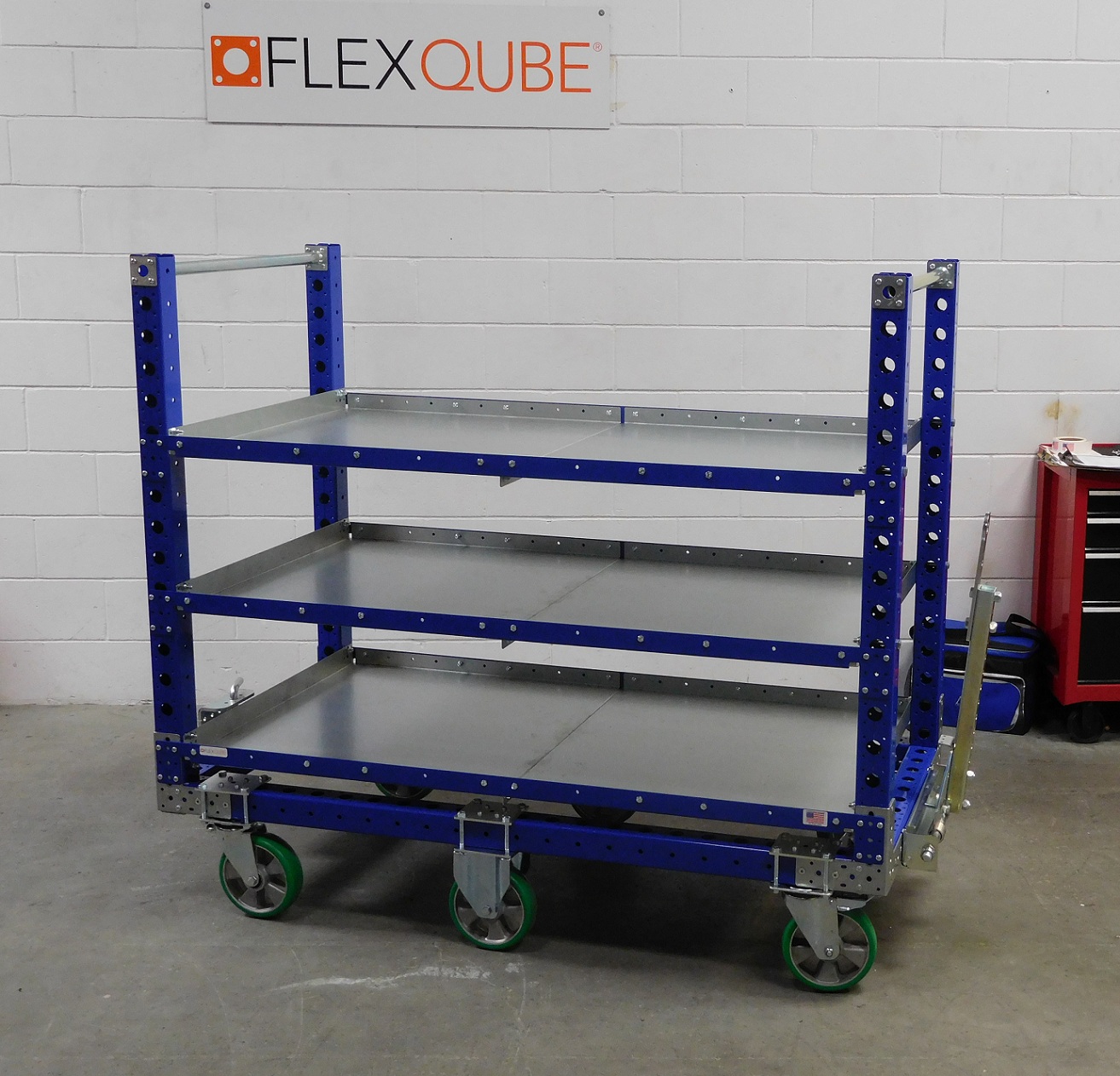

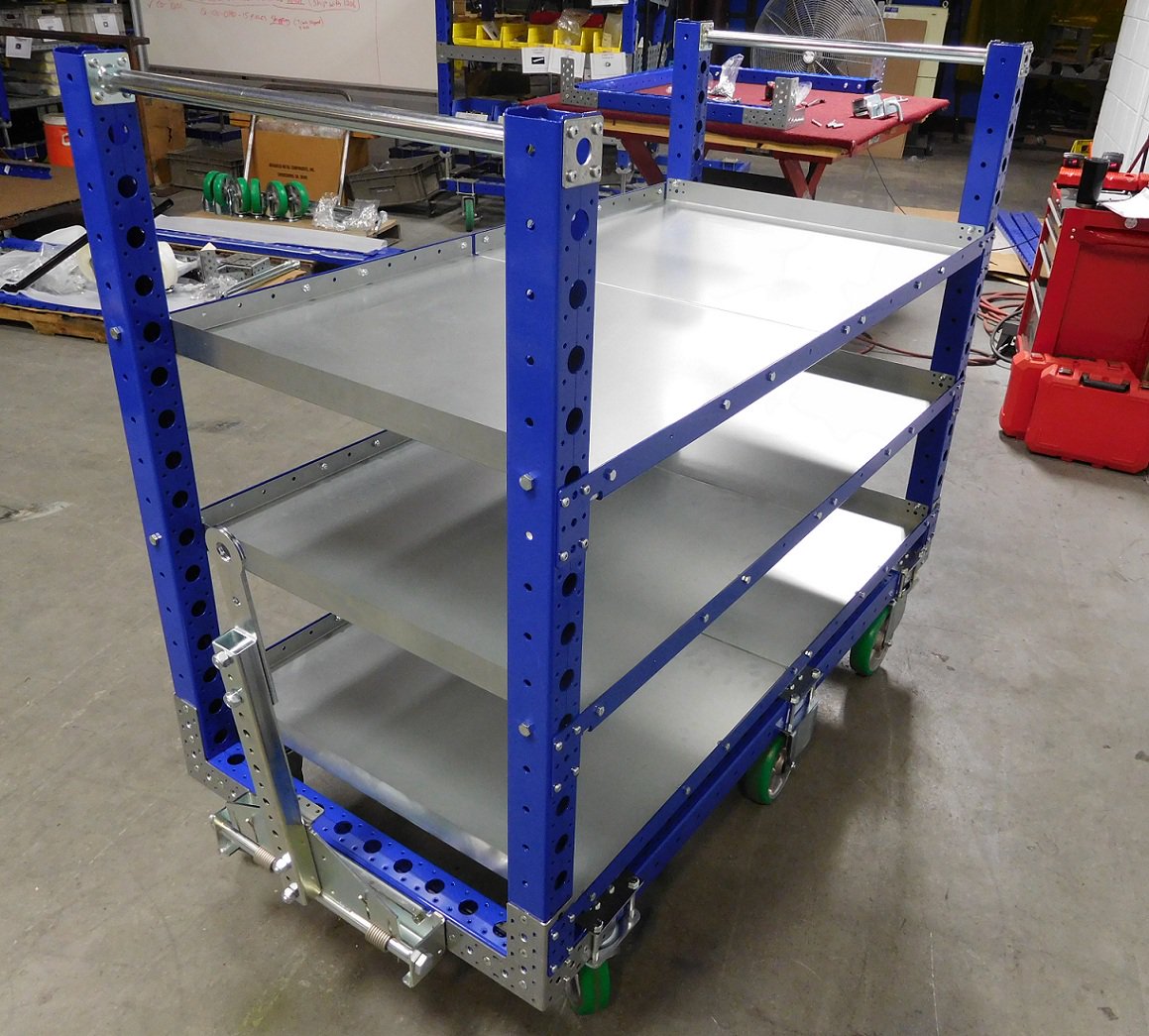

Shelf Cart - 63 x 33 inch

Standard flat shelf cart equipped with three flat shelves.

Technical specifications

Category: Flat Shelf

Type of tow bar: Tongue and Hitch

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 33 inch

Levels: 3

Load capacity: 899 lbs

Load Capacity per Level: 300 lbs

Transportation method: Tugger

Caster size: 8 inch

Caster Type: Polyurethane

Type of Load: Bins, Boxes, Misc parts, Totes

More info

This flat shelf cart was designed to transport totes, bins, and boxes more efficiently. The three shelves can have their height adjusted higher or lower easily depending on your materials. It also comes equipped with a drop pin and hitch tow bar for transportation via a tugger train system.

Parts included
FlexTube™ 700 mm 2 Q-000-1002
FlexBeam™ - 1610 mm 4 Q-001-1294
FlexBeam™ 1190 mm FE 8 Q-001-1400
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexPlate™ 12 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
Towing Hole 2 Q-005-1056
Spring for Tow Bar 2 Q-005-1070
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 36 Q-005-1426
Allen Head - M6 x 30 mm 1 Q-006-1012
Hex Head - M20 x 500 mm 1 Q-006-1016
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Locking Nut M10 69 Q-006-1042
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 95 mm 8 Q-006-1088
Hex Head - M8 x 16 mm 66 Q-006-1120
Hex Head - M10 x 90 mm 30 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 66 Q-006-1181
M8 Washer 32 Q-006-1183
Nut M10 1 Q-006-1195
Hex Head Fully Threaded - M10 x 50 mm 1 Q-006-1343
Extra Low Head - M10 x 90 mm 24 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 144 Q-006-1384
M20 Locking Nut 1 Q-006-1405
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Compression Spring for US Tow Hitch 1 Q-012-0007
Flat shelf - 770 x 840 mm 6 Q-016-0292
Angled plate - 1668 mm 6 Q-016-1092
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Towing Lip - 28 mm 1 Q-017-1010
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
