Tugger shelf cart with rollers

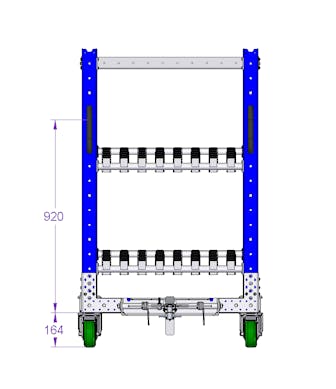

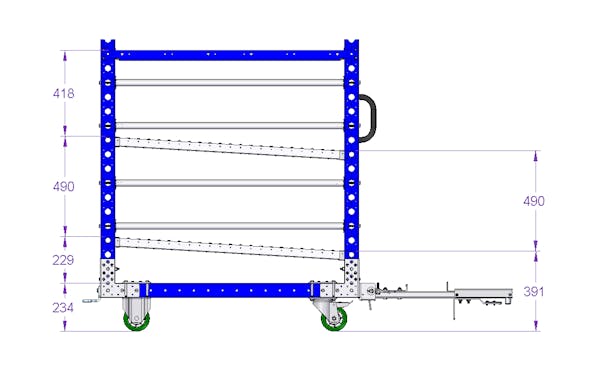

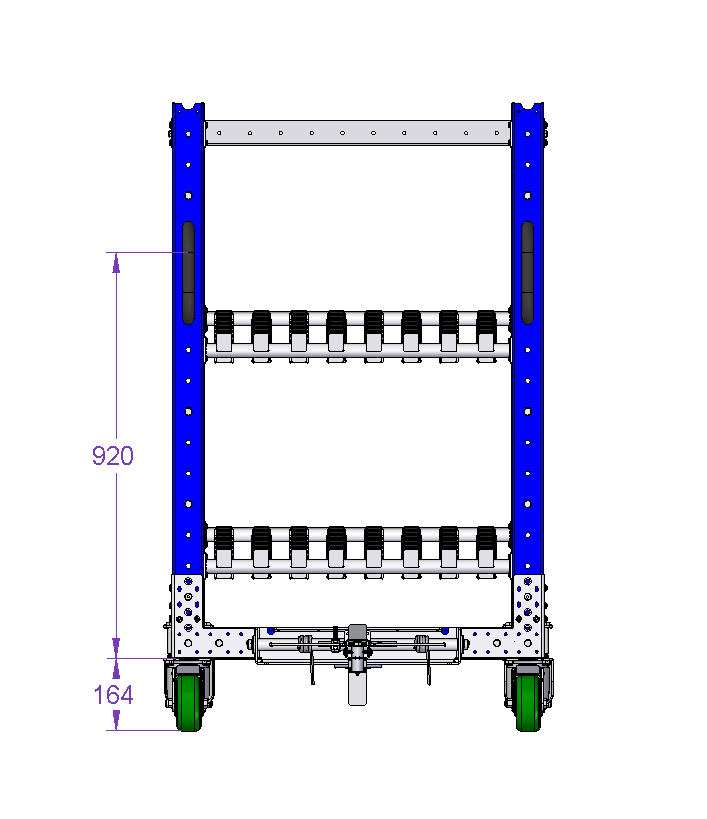

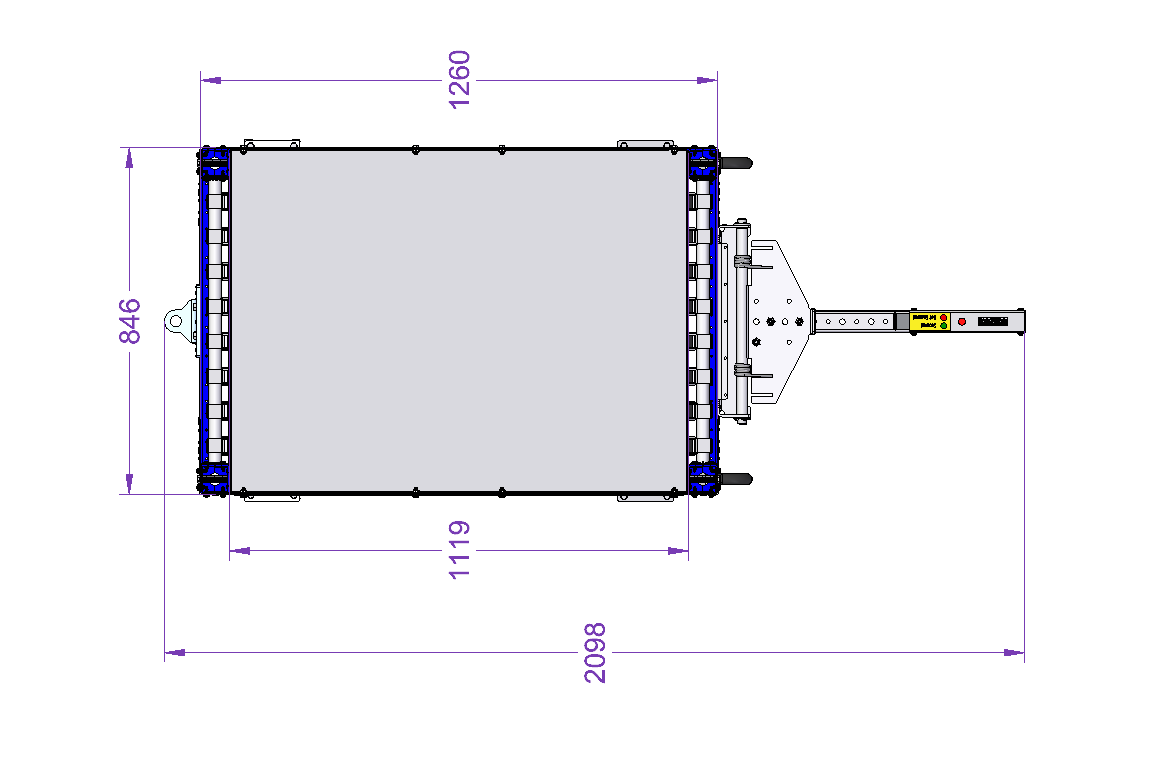

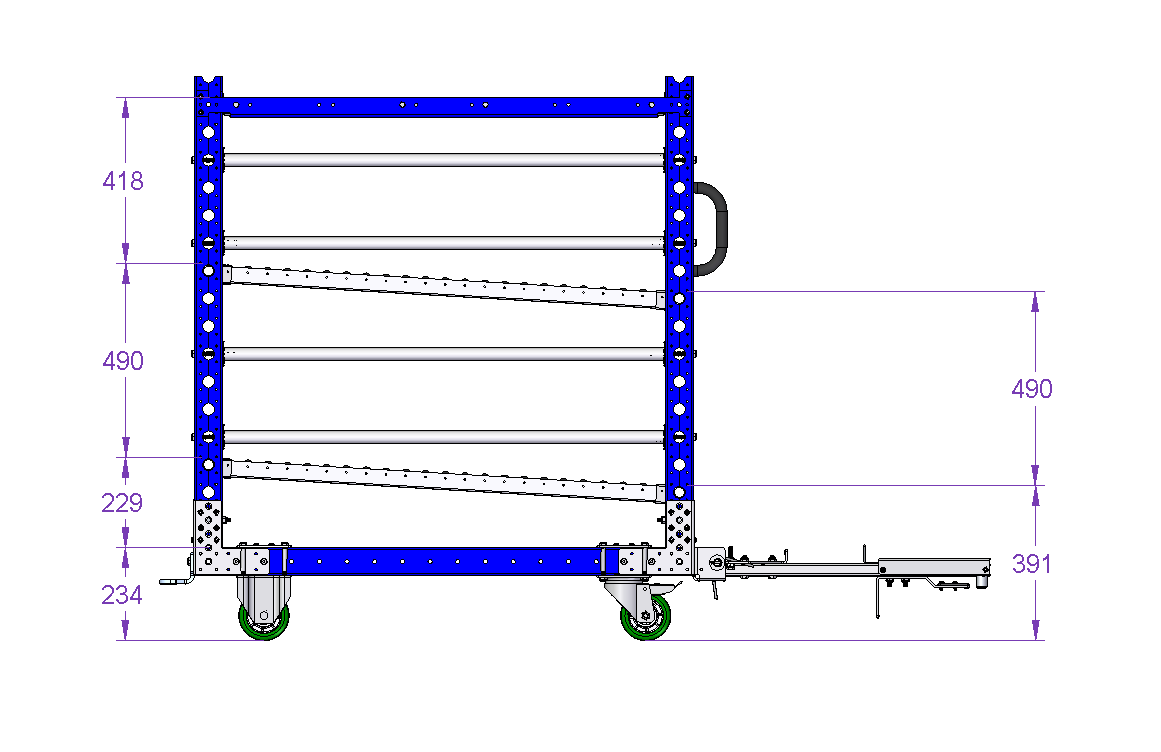

Shelf Cart With Rollers 1260 x 840 mm
Shelf Cart With Rollers 1260 x 840 mm
Shelf Cart With Rollers 1260 x 840 mm
Q-007-1940

Shelf Cart With Rollers 1260 x 840 mm

Custom designed shelf cart with both roller shelves and a flat shelf.

Technical specifications

Transportation method: Manual, Tugger

Category: Flow Shelf

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Length: 50 inch

Width: 33 inch

Load capacity: 441 lbs

Caster size: 8 inch

Caster Type: Polyurethane

More info

This shelf cart was designed to help present materials to operators. It is designed to transported bins, totes and boxes. The lower two shelves are roller shelves for presenting and the top shelf is a standard flat shelf for stroing materials. This cart also comes with a foot release tow bar for transportation via a tugger train system.

Parts included
FlexTube™ 700 mm 4 Q-000-1002
FlexTube™ 1120 mm 8 Q-000-1258
FlexBeam™ 1190 mm 12 Q-001-1300
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexPlate™ 4 Q-002-1001
Delivery Connector Without Endstop 16 Q-003-1012
Roller Trax Attachment Stop 16 Q-003-1037
Roller Rail - 1150 mm 16 Q-003-1051
Wheel Attachment - 105 x 77,5 mm 4 Q-004-1065
Caster Polyurethane 125 mm w. Brake 2 Q-004-1105
Caster Polyurethane 125 mm Fixed 2 Q-004-1107
Collet - 31 mm 2 Q-005-1008
Spring Cover Plate 1 Q-005-1025
Spring for Tow Bar 2 Q-005-1070
RTE Plug 16 Q-005-1289
Beam to Beam Corner Plate 4 Q-005-1356
Sticker Green/Red 1 Q-005-1659
Washer M20 2 Q-006-0016
Fully Threaded - M10 x 120 mm 16 Q-006-1037
Hex Head - M10 x 25 mm 6 Q-006-1041
Locking Nut M10 84 Q-006-1042
Countersunk - M10 x 70 mm 1 Q-006-1112
Hex Head - M8 x 16 mm 12 Q-006-1120
Hex Head - M10 x 90 mm 16 Q-006-1132
Locking Nut M8 8 Q-006-1181
Nut M10 1 Q-006-1195
Hex Head Fully Threaded - M10 x 50 mm 3 Q-006-1343
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 78 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 2 Q-006-1502
Spring 1,5 x 15yd x 70 1 Q-012-1141
Handle Bar 210 mm M8 2 Q-015-1037
Flat Shelf - 1119 x 840 mm 1 Q-016-1237
Shelf Edge Lip - 1250 mm 2 Q-016-1239
Countersunk Towing Lock Pin - 25 mm 1 Q-017-0010
EUR Modular Tow Bar Foot Release VKR - 670 mm 1 Q-017-0016
Cotter Pin - 3,2 x 32 mm 2 Q-017-0023
Foot Release Locking Lip 1 Q-017-0024
Locking lip attachment 1 Q-017-1043
Tow Bar Lock Tube - 498 mm 1 Q-017-1061
Tow Hole 28 mm - Symmetric 1 Q-017-1066
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
