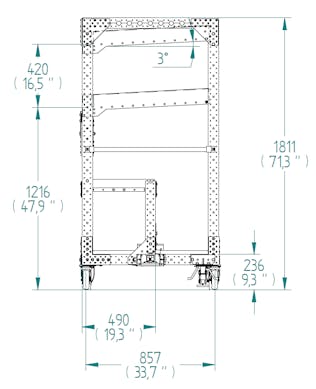

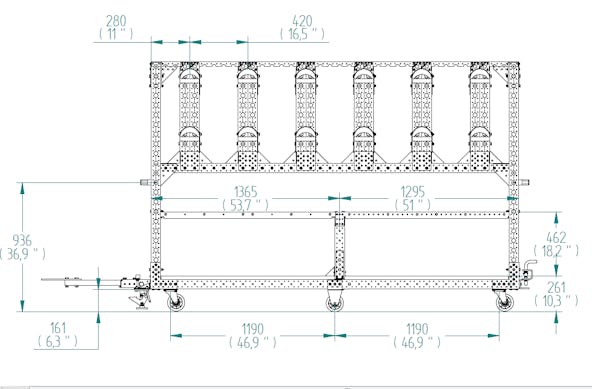

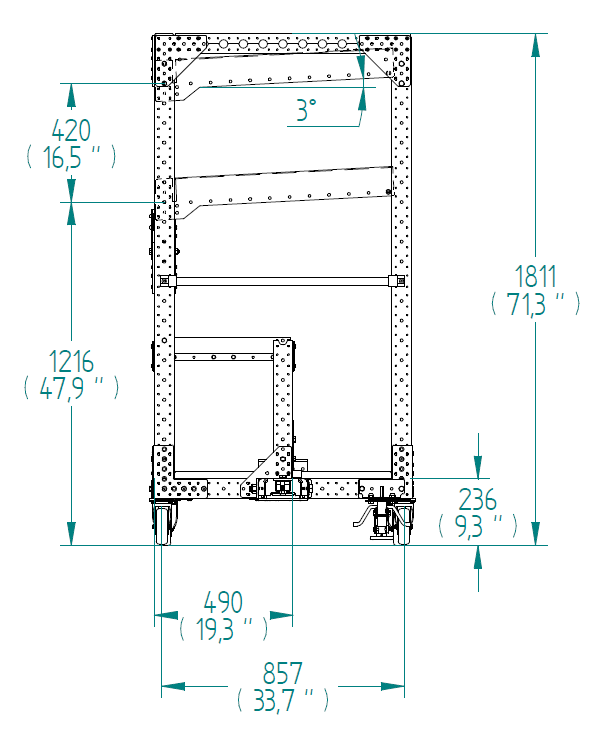

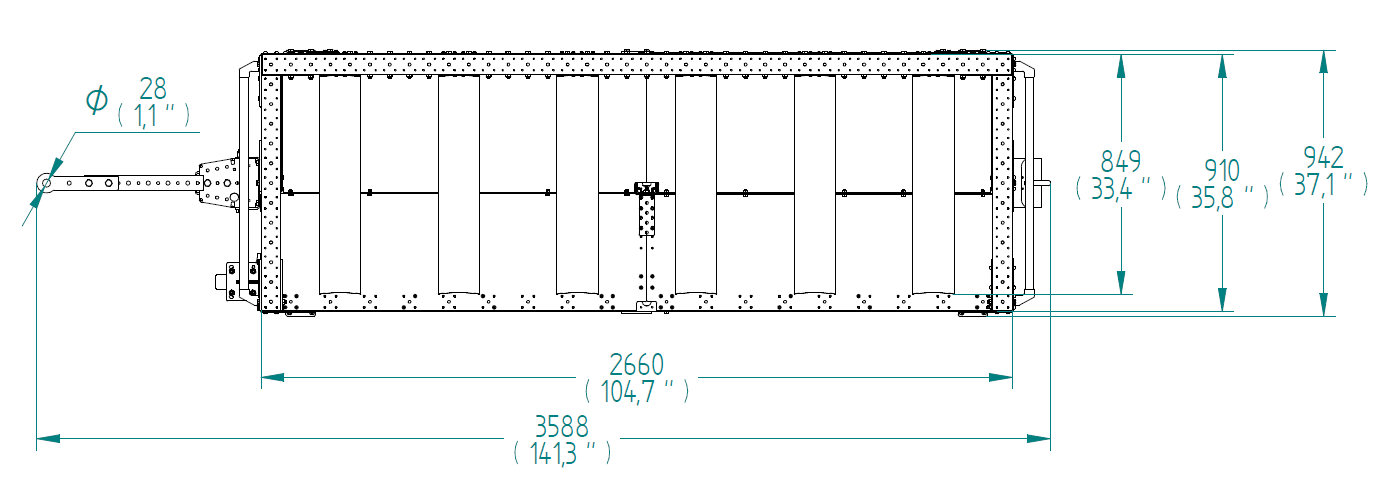

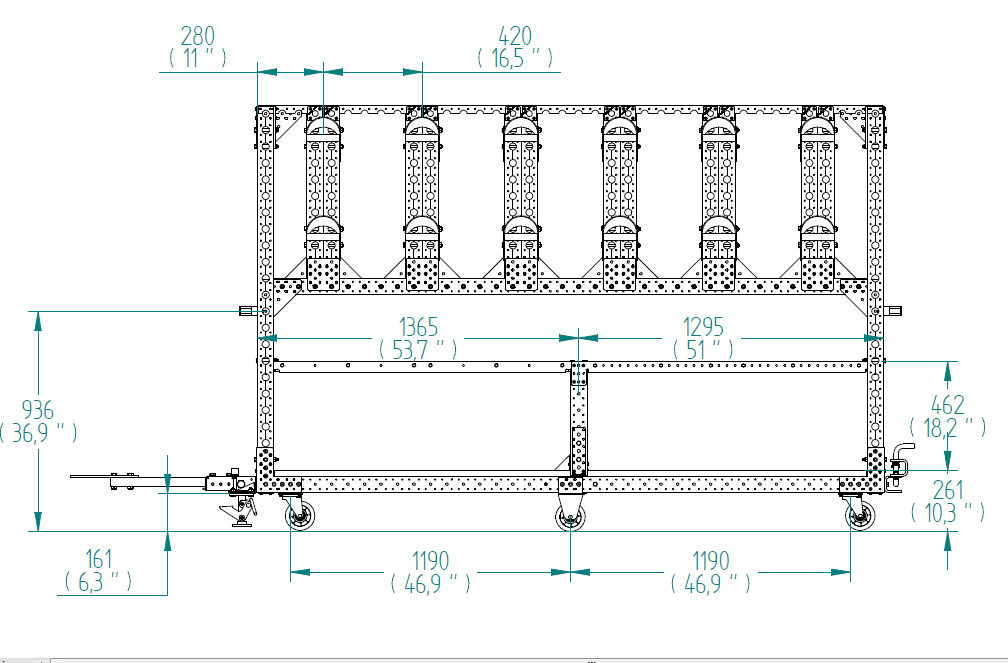

Shelf Kit Cart - 910 x 2660 mm
Shelf Kit Cart - 910 x 2660 mm
Shelf Kit Cart - 910 x 2660 mm
Shelf Kit Cart - 910 x 2660 mm
Q-100-1443

Shelf Kit Cart - 910 x 2660 mm

Custom designed kit cart with shelves and heavy-duty hangers.

Technical specifications

Category: Kitting Carts

Transportation method: Manual, Tugger

Type of tow bar: Tongue and Hitch

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 36 inch

Length: 105 inch

Load capacity: 1830 lbs

Caster size: 5 inch

Caster Type: Polyurethane

More info

This cart is designed to transport boxes or loose parts in the shelves together with rolls of materials in the heavy-duty hangers at the top of the cart’s structure to the production stations. The cart is equipped with six polyurethane casters, a drop pin towbar, a floor friction brake and horizontal tubes as handlebars in the front and rear side of the cart.

Parts included
Outer Tube (No Plate) - 800 mm 2 Q-000-0076
FlexPlate™ 32 Q-002-1001
Flexplate™ M10 10 Q-002-1162
FlexPlate™ half 4 Q-002-1369
Caster Polyurathane 125 mm 80 x 60 Swivel 4 Q-004-1220
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
Floor Lock COLSON 4 x 4-1/2 1 Q-004-1369
L Bracket Joint 1 Q-005-0031
Caster to Beam Attachment - 80 x 60 mm 6 Q-005-0265
L-Bracket Joint - 70 x 70 mm 4 Q-005-0429
Spring Threaded Tube Connectors 24 Q-005-0469
Triangle Joint 27 Q-005-0483
Rounded Hanger (150 mm) - 770 mm Long 12 Q-005-0656
Handle for 30 mm Tube 4 Q-005-1240
Beam to Beam Corner Plate 4 Q-005-1356
Floor Brake Plate 1 Q-005-1387
64 mm FlexBeam™ Collet 49 Q-005-1426
Heavy Duty Joint M10 1 Q-005-1580
Wheel Attachment - 80 x 60 mm 2 Q-005-1722
Hex Head Fully Threaded - M8 x 20 mm 12 Q-006-1019
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 4 Q-006-1041
Locking Nut M10 124 Q-006-1042
Washer M10 14 Q-006-1043
M10 x 160 mm 24 Q-006-1055
Hex Head - M10 x 95 mm 21 Q-006-1088
Hex Head - M8 x 16 mm 16 Q-006-1120
Hex Head - M10 x 90 mm 34 Q-006-1132
Hex Head - M10 x 30 mm 5 Q-006-1161
Locking Nut M8 52 Q-006-1181
M8 Washer 24 Q-006-1183
M8 x 16 mm Countersunk 16 Q-006-1214
Countersunk - M8 x 20 8 Q-006-1282
Hex Head - M10 x 100 mm 6 Q-006-1302
Extra low head [1,5 mm] M10x40 mm 4 Q-006-1361
Extra Low Head - M10 x 90 mm 22 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 482 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 28 Q-006-1410
Angled plate - 1388 mm 2 Q-016-0140
Angled Plate - 1318 mm 2 Q-016-0185
Flat Shelf Half - 490 x 1225 mm 1 Q-016-0813
Flat Shelf Half - 490 x 1295 mm 1 Q-016-0814
Top plate - 910 x 1295 mm 1 Q-016-0815
Top plate - 910 x 1365 mm 1 Q-016-0816
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge - Narrow 1 Q-017-0087
Towing Lip - 28 mm 1 Q-017-1010
FlexBeam™ - 490 mm STS 6 Q-020-0490
FlexBeam™ 1540 mm STS 8 Q-020-1540
FlexBeam™ - 2590 mm 4 Q-020-2590
FlexBeam™ - 2520 mm STS FE 2 Q-021-2520
FlexBeam FE - 2660 mm 1 Q-021-2660
Outer tube (No plate) - 140 mm 12 Q-025-0140
