Q-007-1868

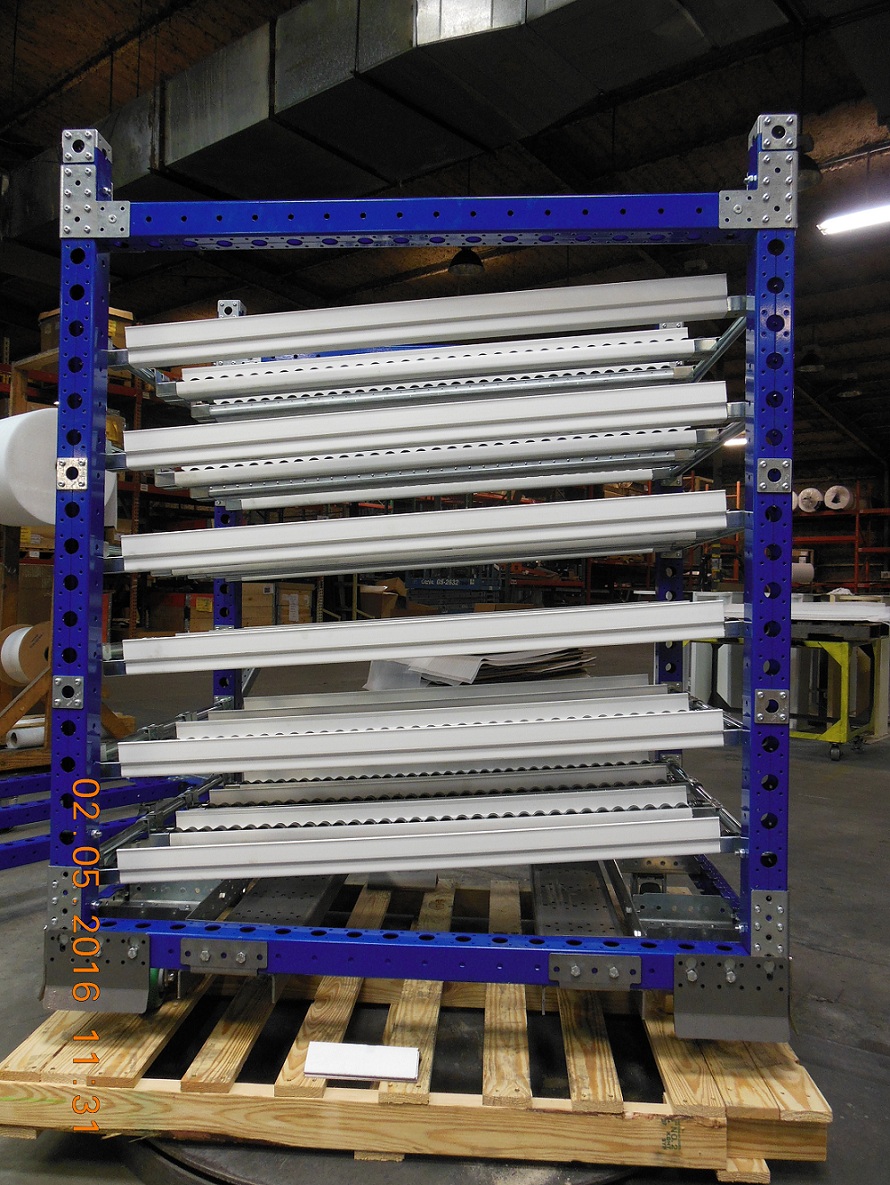

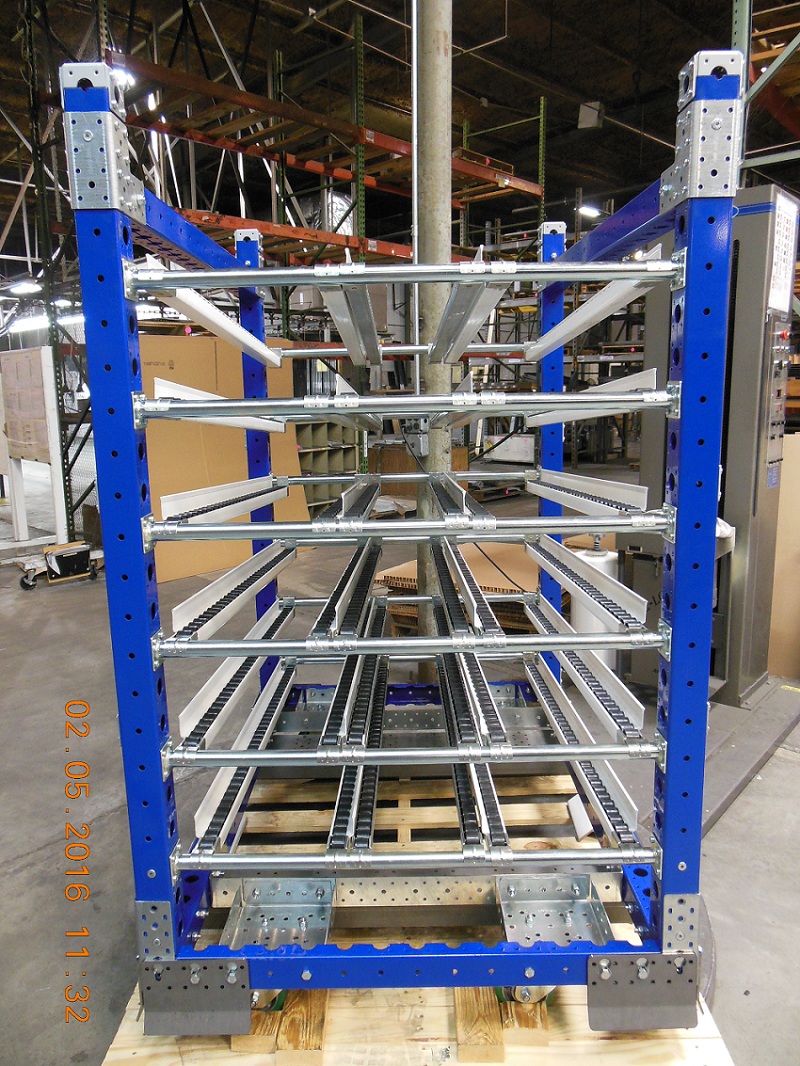

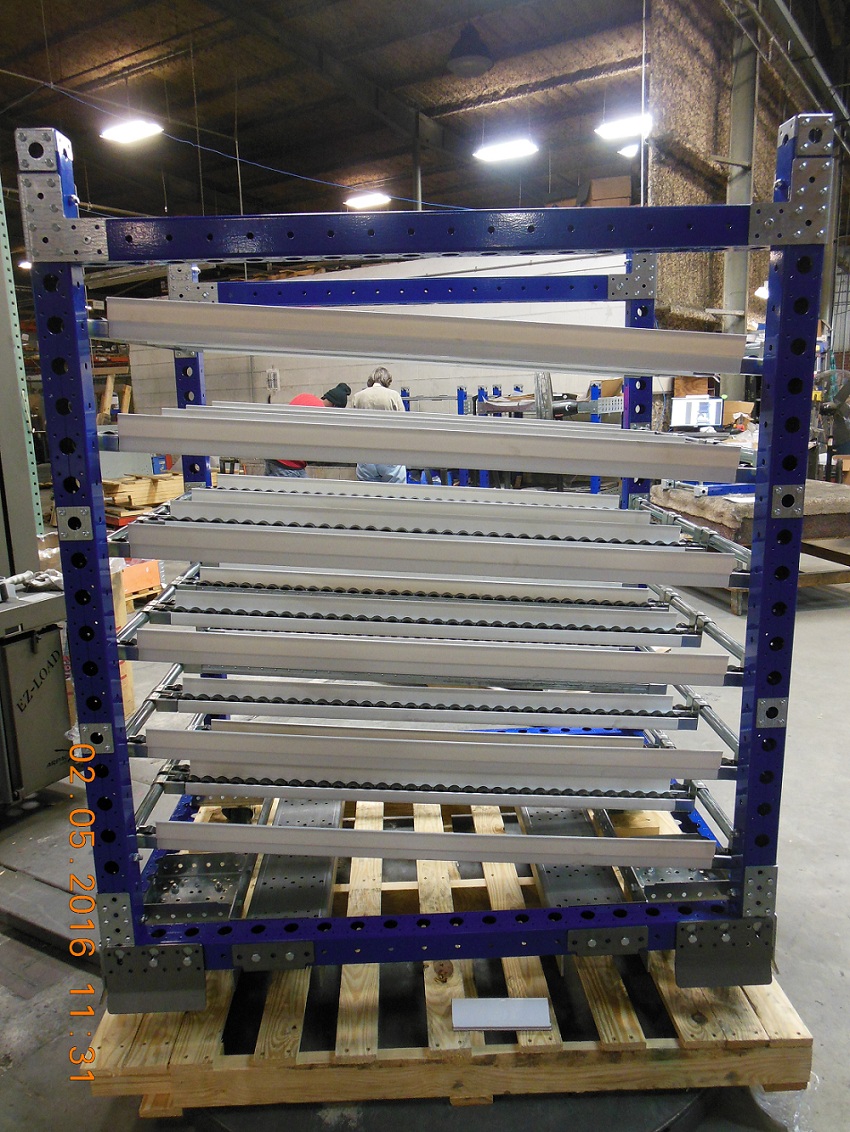

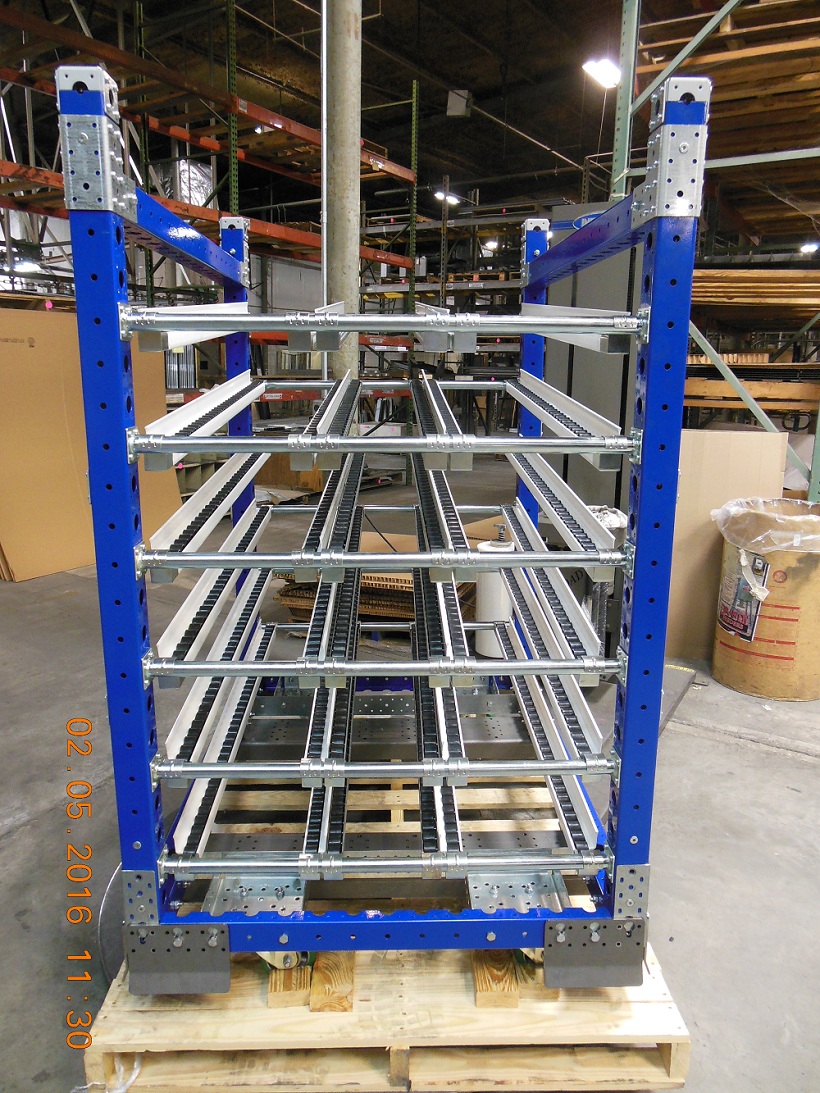

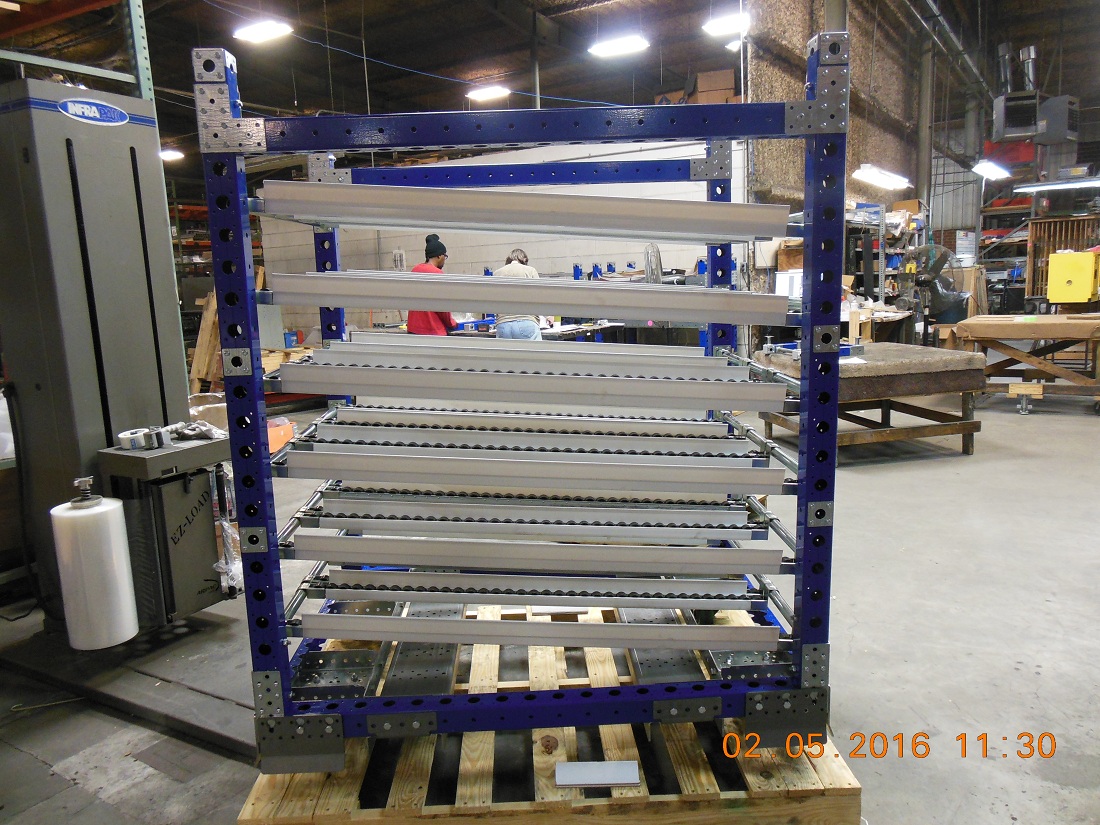

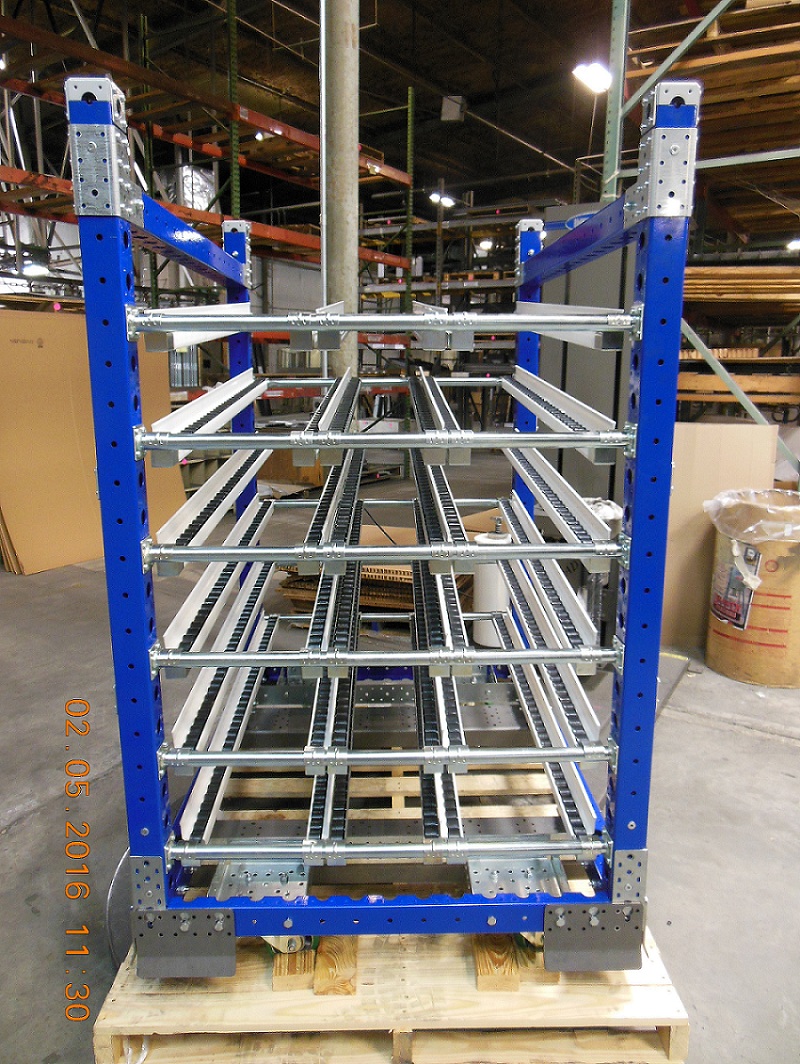

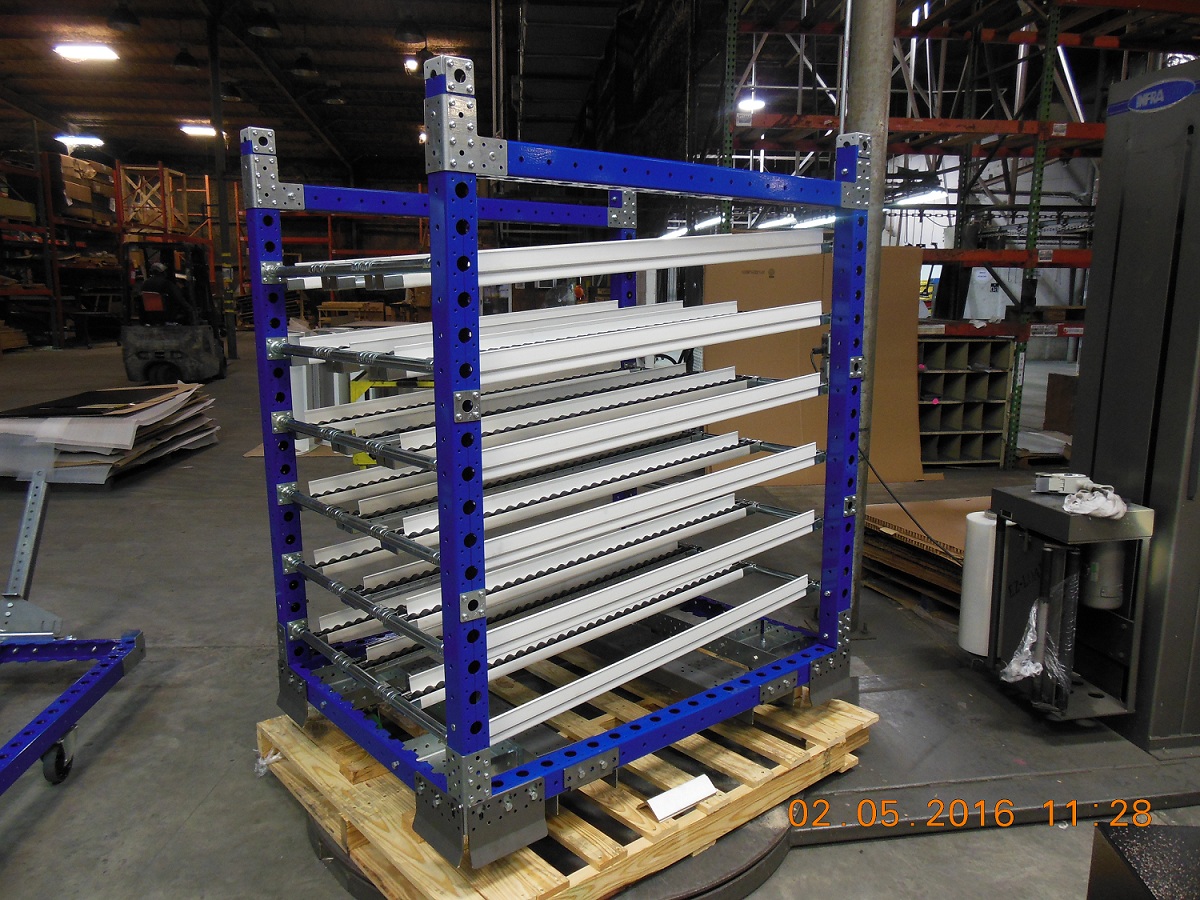

Stackable Cart with Roller Tracks

Standard flow rack with six roller shelves for presenting materials.

Technical specifications

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Transportation method: Manual

More info

This flow rack was designed so that it could be stacked on top of each other if needed. It comes with six roller shelves and the height of the shelves can be easily adjusted to match your materials. This rack is ideal for presenting totes, bins, and boxes. It also comes equipped with four polyurethane casters for easier movability.

Parts included

64 mm FlexBeam™ Collet 24 Q-005-1426

FlexBeam™ 1050 mm FE 2 Q-001-1402

Beam to Beam Corner Plate 4 Q-005-1356

FlexBeam™ 490 mm 4 Q-001-1310

FlexBeam™ 840 mm 8 Q-001-1305

FlexQube 4 Q-001-1078

FlexBeam™ 420 mm 4 Q-001-1311

FlexTube™ 910 mm 12 Q-000-1269

Caster Polyurethane - 125 mm 4 Q-004-1106

Wheel Attachment Box 4 Q-005-1079

Guide Plate - 204 mm 8 Q-005-1422

Fork Tunnel - 1062 mm 2 Q-005-1844

FlexPlate™ 40 Q-002-1001

Hex Head - M10 x 25 mm 36 Q-006-1041

Extra Low Head - M10 x 90 mm 16 Q-006-1381

Hex Head - M10 x 95 mm 16 Q-006-1088

Self Tapping Screw M6 Torx H60 x 16 376 Q-006-1384

Locking Nut M10 70 Q-006-1042

Old Version: Heavy Duty Joint Double Beam 4 Q-005-1607

Rail Support No Stop 36 Q-003-1021

Rail Support Drop 30 mm Stop 36 Q-003-1022
