Q-100-0144

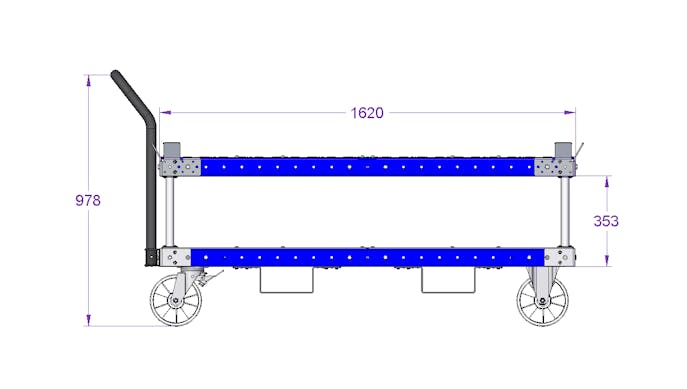

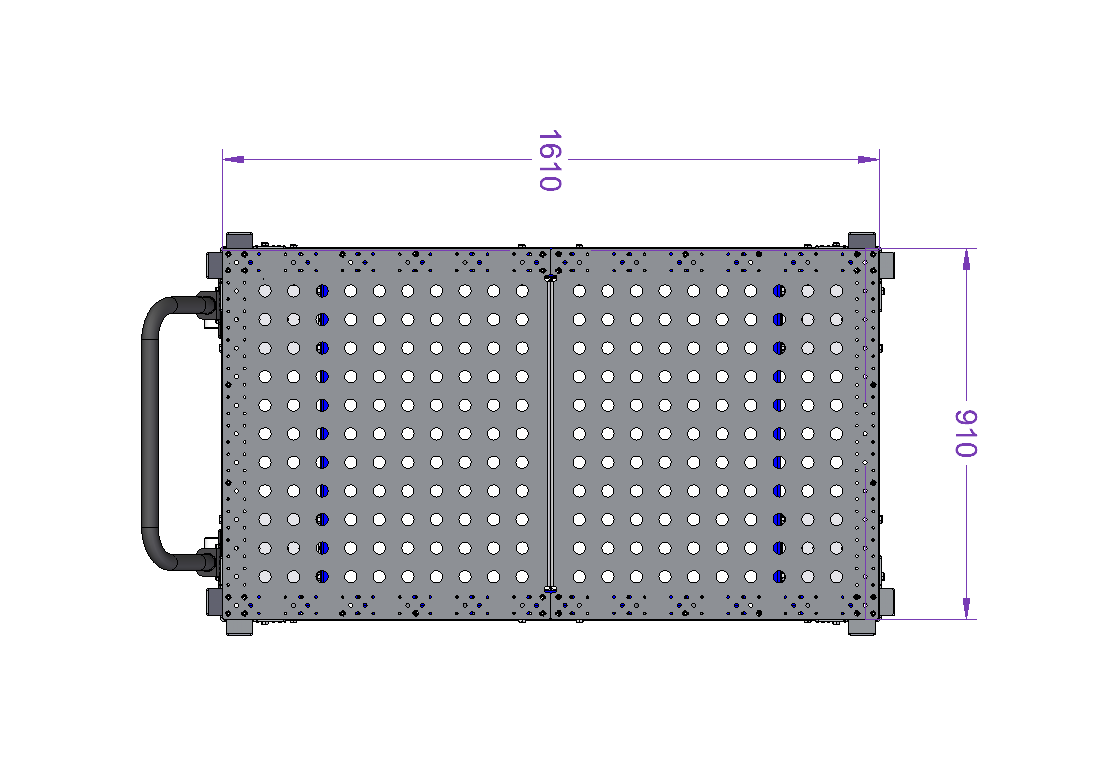

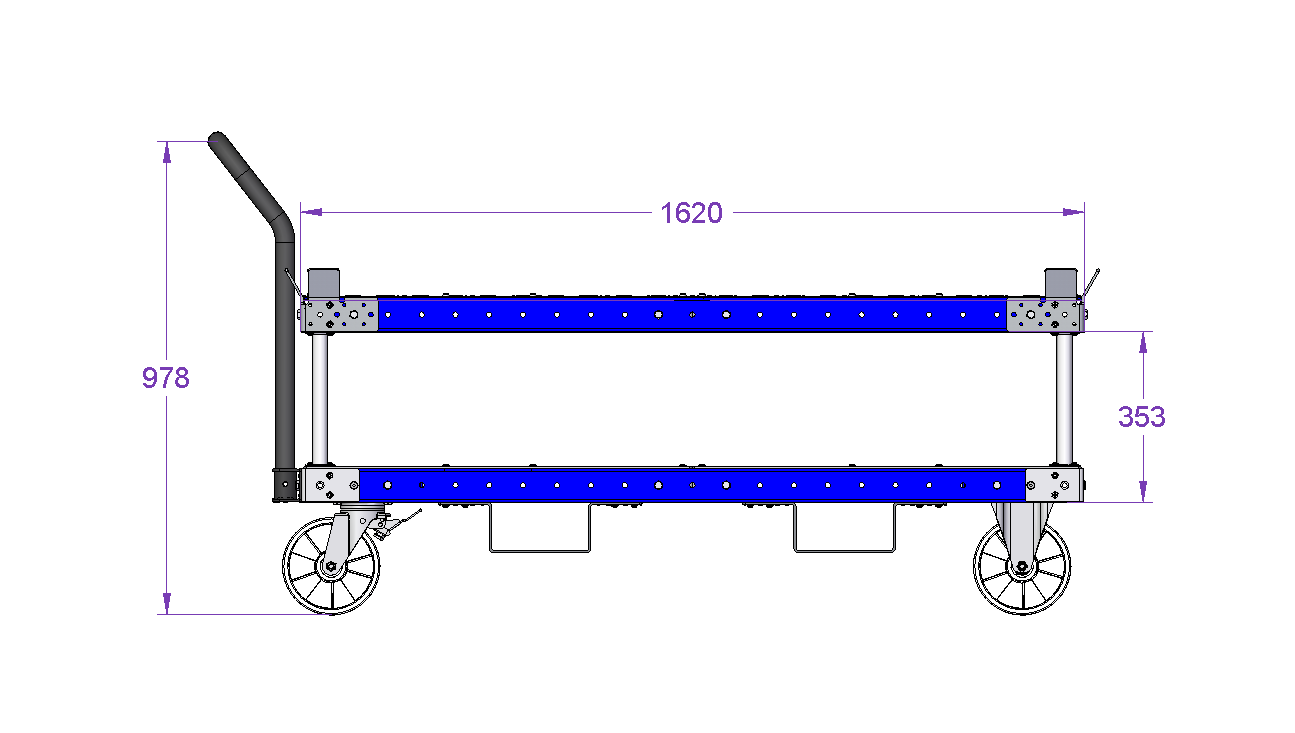

Stackable Rack 1610 x 910 mm

Specially designed rack for pallets and containers.

Technical specifications

Category: Flow Rack

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 36 inch

Length: 63 inch

Load capacity: 1102 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Nylon

More info

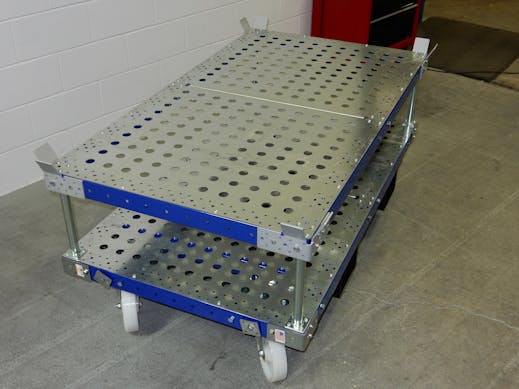

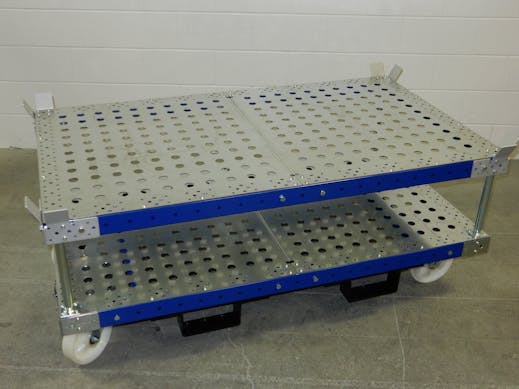

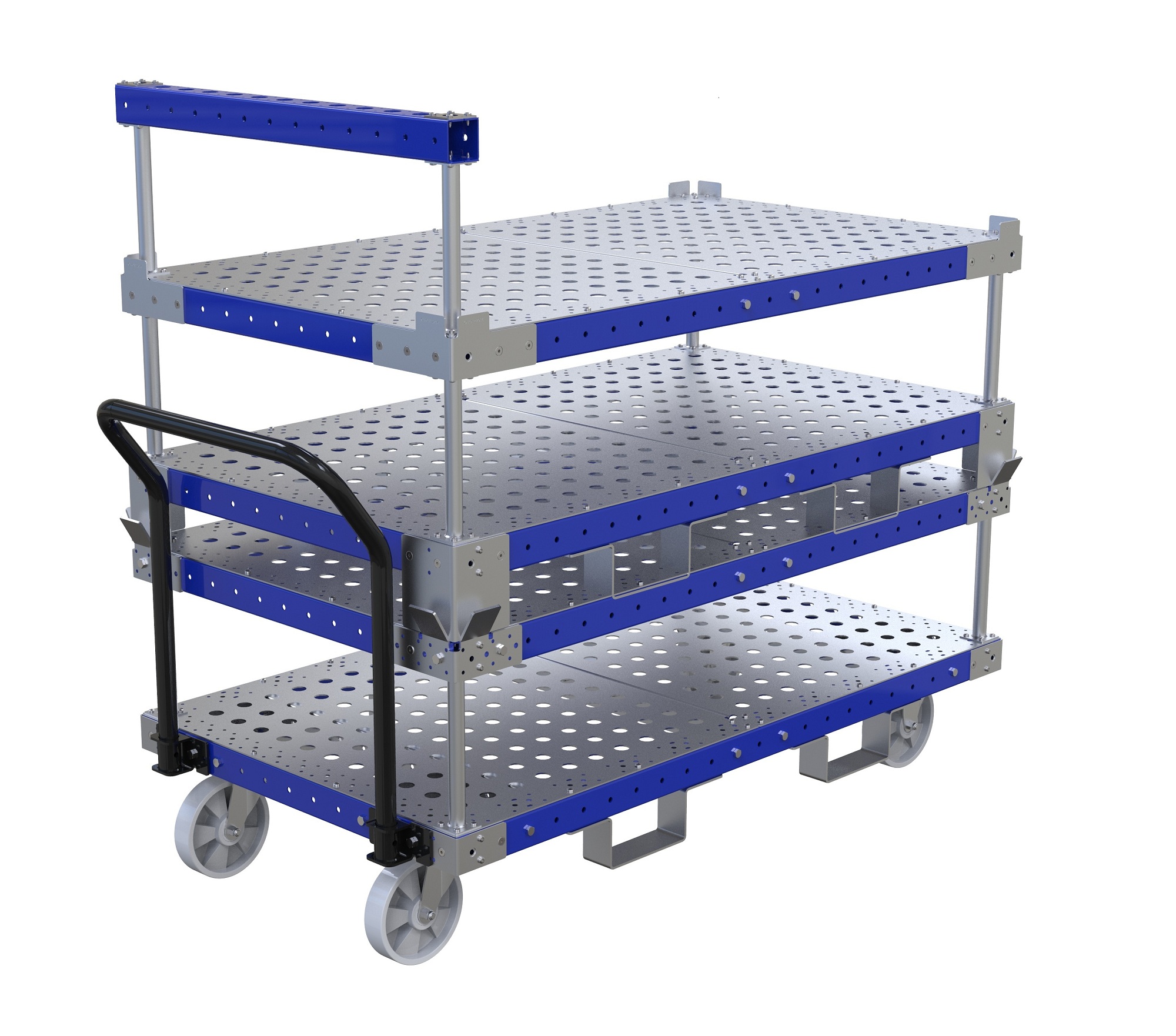

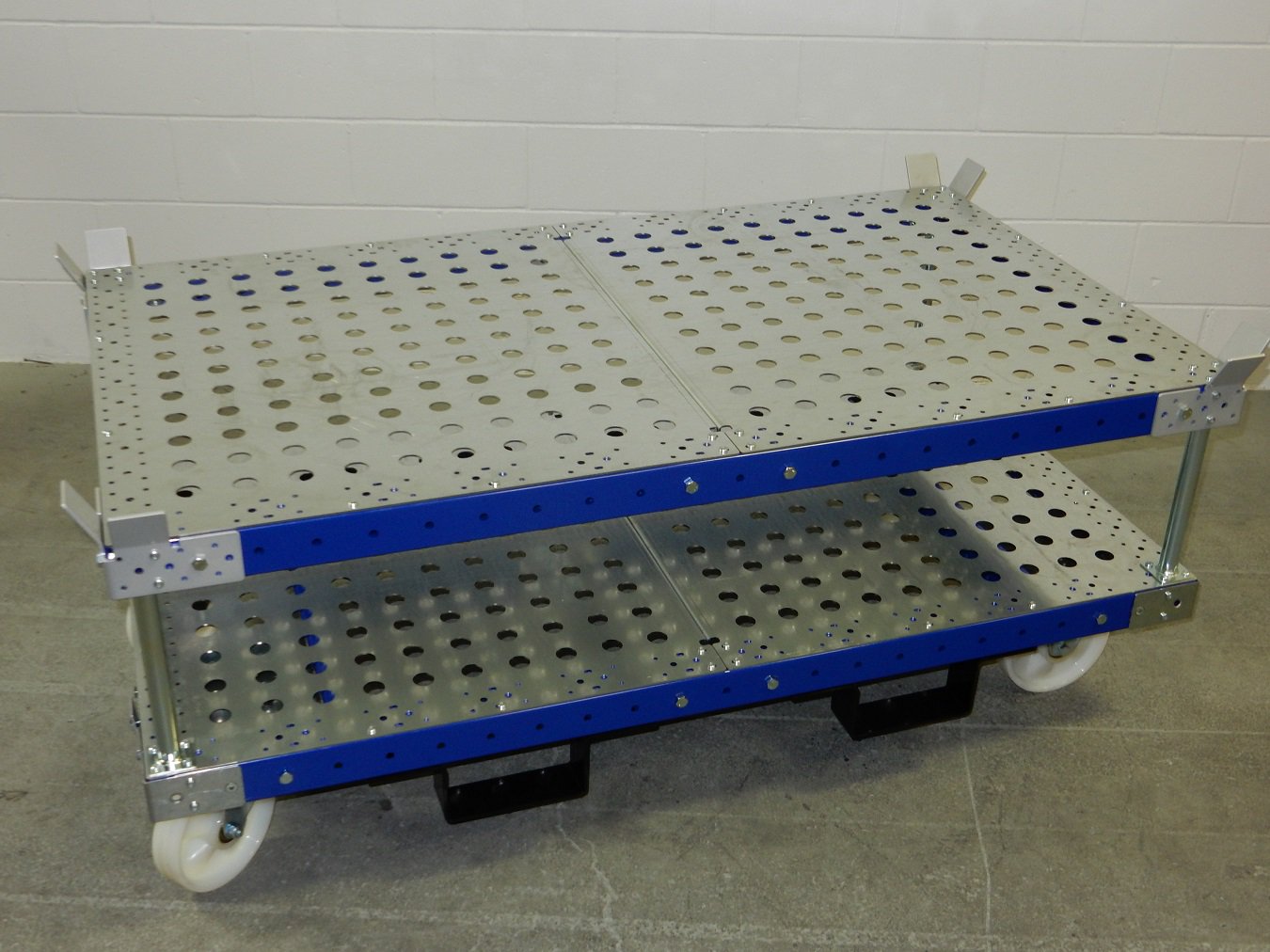

Stackable rack with fork guides for easy handling. The rack has corner pieces that allows safe and easy stacking. Solution for varying quantity of material to be handled.

Parts included

FlexTube™ 280 mm 4 Q-000-1262

FlexBeam™ - 1540 mm 8 Q-001-1295

FlexBeam™ 910 mm FE 4 Q-001-1404

FlexBeam™ 770 mm FE 2 Q-001-1406

Stiffener - Outside 4 Q-002-1050

Flexplate™ M10 2 Q-002-1162

Polyamide Caster 200 mm with Brake 2 Q-004-1351

Polyamide Caster 200 mm Fixed 2 Q-004-1354

Stackable guide plate 4 Q-005-1030

Wheel Attachment Box 4 Q-005-1079

64 mm FlexBeam™ Collet 16 Q-005-1426

Fork Guide - 210 x 100 mm 4 Q-005-1923

Hex Head - M10 x 25 mm 46 Q-006-1041

Locking Nut M10 74 Q-006-1042

Hex Head - M10 x 90 mm 16 Q-006-1132

Extra Low Head - M10 x 90 mm 4 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 136 Q-006-1384

Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410

Handlebar Attachment US 2 Q-015-0031

Tube for Handlebar US 1 Q-015-0032
