Stackable Shelf Rack - 1260 x 1260 mm
Stackable Shelf Rack - 1260 x 1260 mm
Stackable Shelf Rack - 1260 x 1260 mm
Stackable Shelf Rack - 1260 x 1260 mm
Stackable Shelf Rack - 1260 x 1260 mm
Q-100-0632

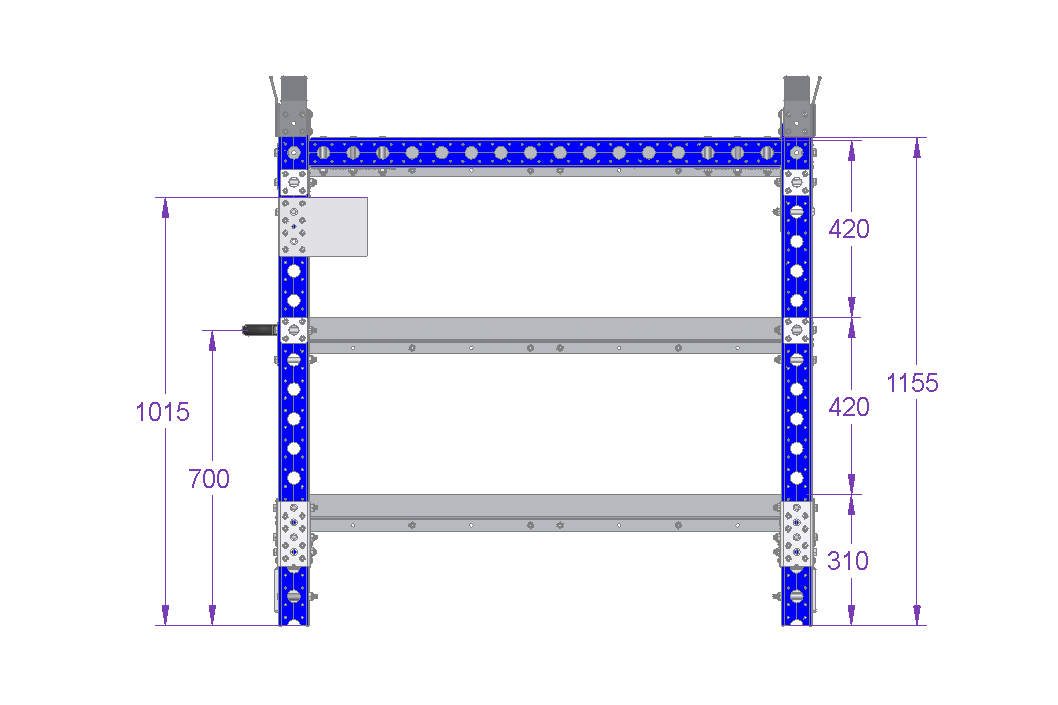

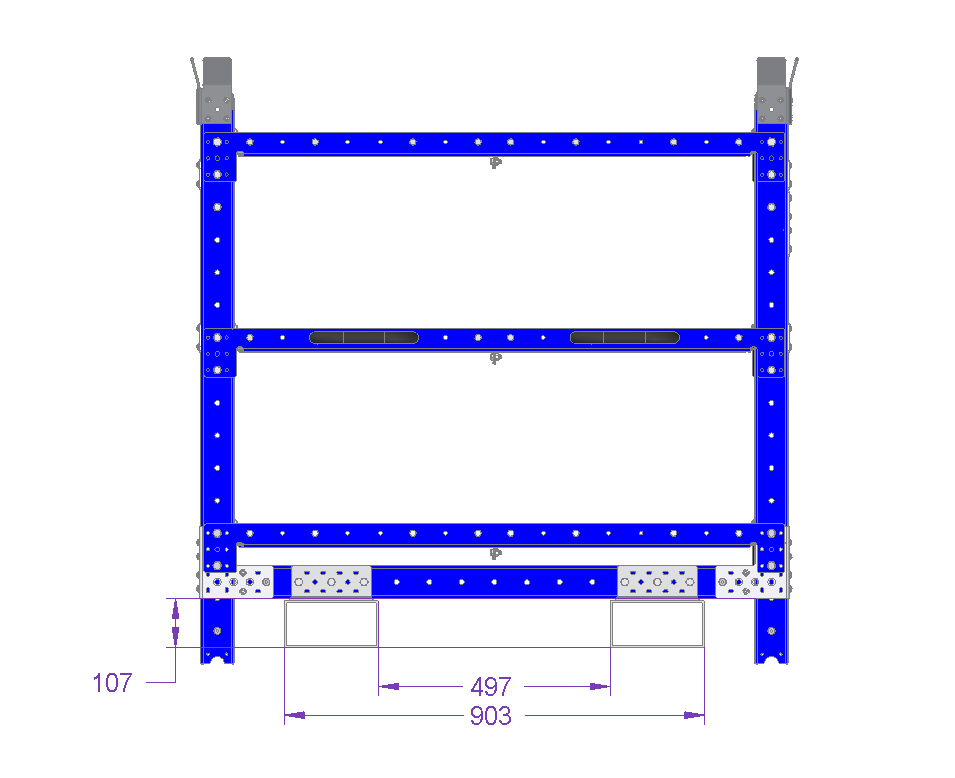

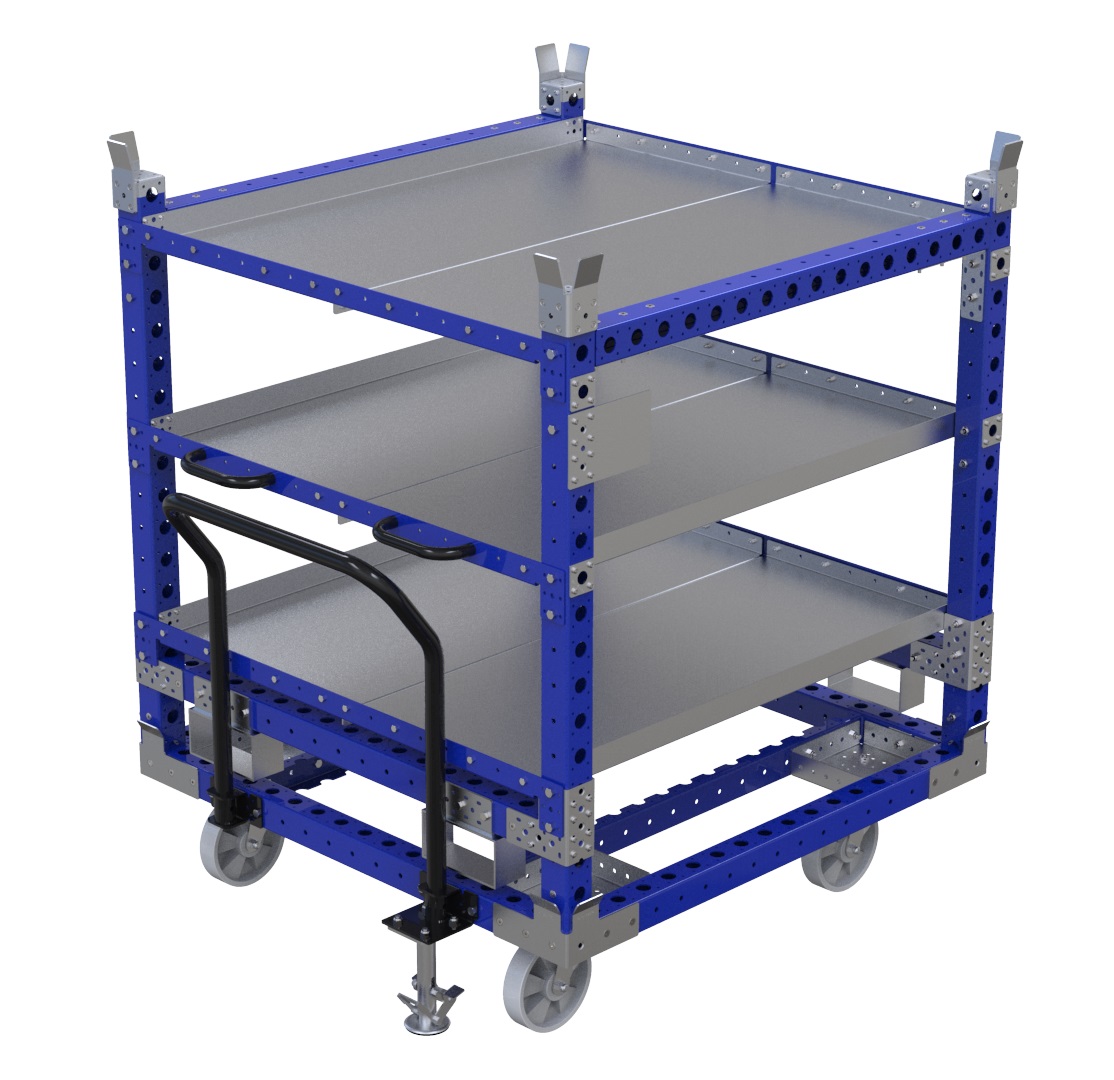

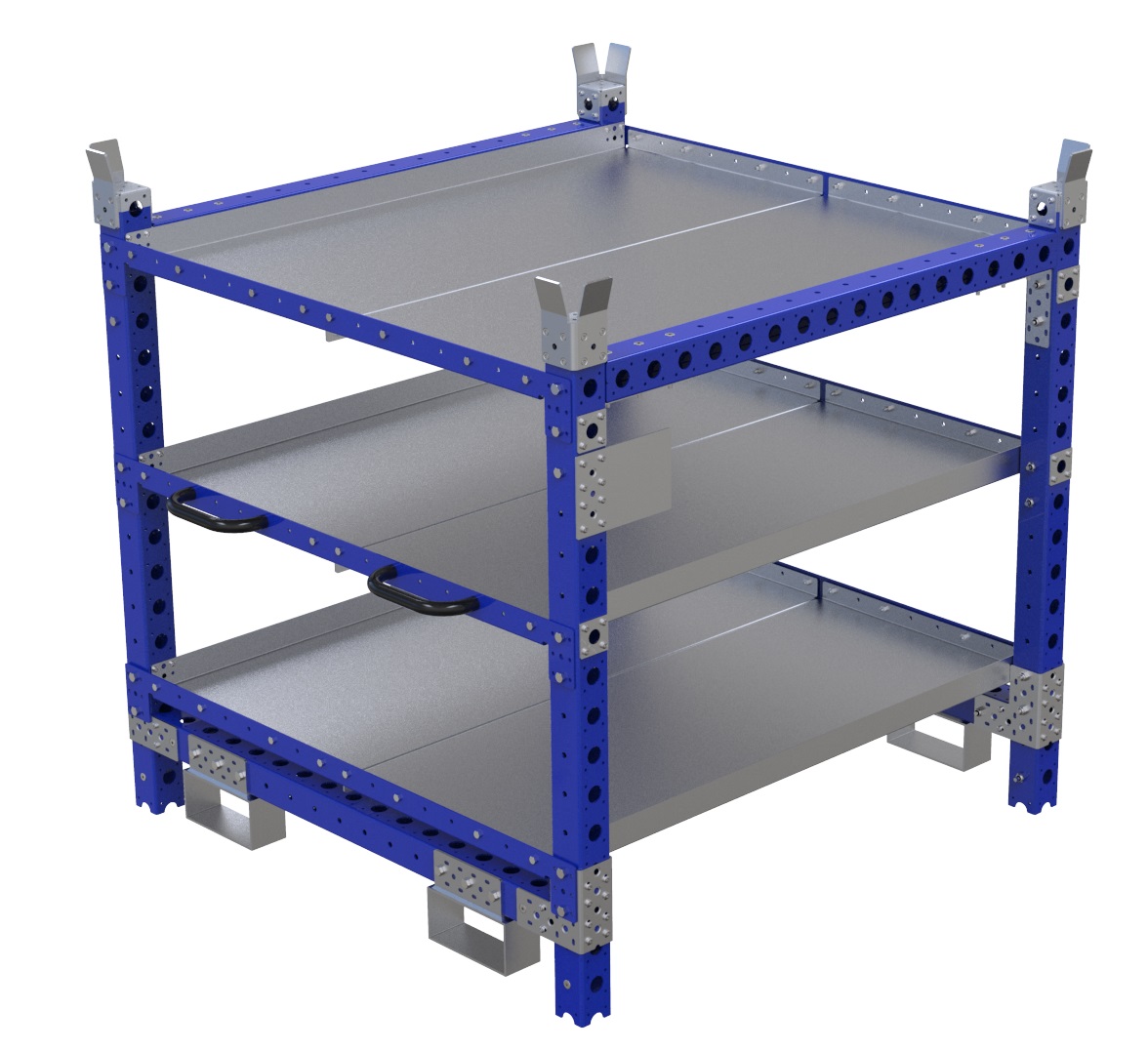

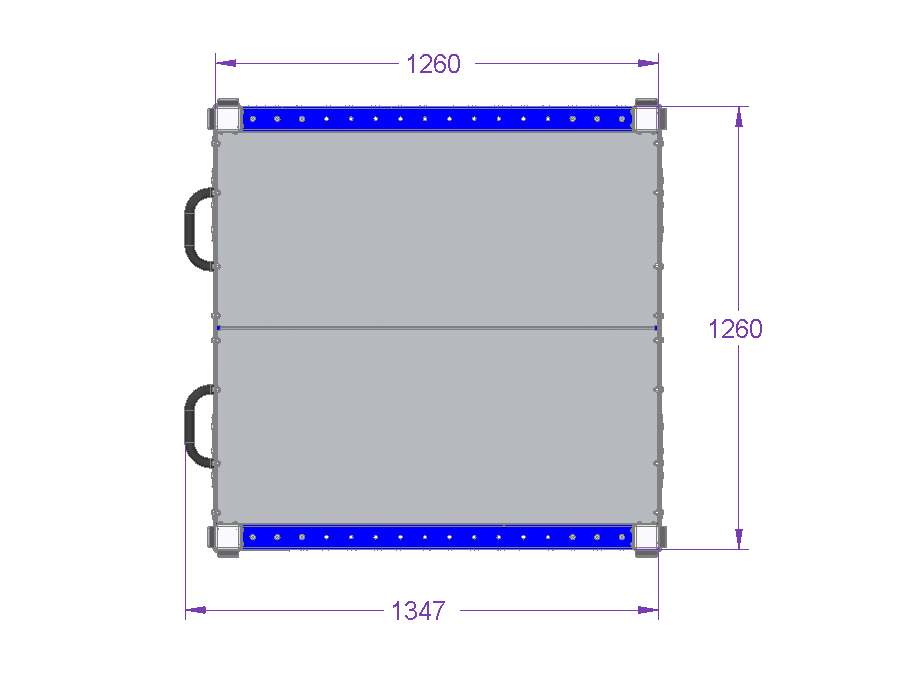

Stackable Shelf Rack - 1260 x 1260 mm

Custom designed stackable shelf rack with three shelves.

Technical specifications

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 50 inch

Length: 50 inch

Levels: 3

Load capacity: 992 lbs

Load Capacity per Level: 331 lbs

Transportation method: Manual

Type of Load: Bins, Boxes, Misc parts, Totes

More info

This rack has three flat shelves equipped for holding totes, bins and boxes. It is equipped with an ergonomic handlebar for easier manual transportation. It can also fit into a STILL Liftrunner tugger train system for more efficient transportation.

Parts included
FlexQube 4 Q-001-1078
FlexBeam™ 1190 mm 8 Q-001-1300
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 1120 mm FE 4 Q-001-1401
FlexPlate™ 20 Q-002-1001
L Bracket Joint 4 Q-005-0031
Label Plate - A5 1 Q-005-0387
Corner pallet guide w. bend - 5 mm 4 Q-005-0426
Fork Tunnel US - 80 mm 4 Q-005-0431
64 mm FlexBeam™ Collet 24 Q-005-1426
Heavy Duty Joint M10 4 Q-005-1580
Hex Head Fully Threaded - M8 x 20 mm 16 Q-006-1019
Hex Head - M10 x 25 mm 4 Q-006-1041
Locking Nut M10 60 Q-006-1042
Hex Head - M10 x 95 mm 8 Q-006-1088
Hex Head - M8 x 16 mm 50 Q-006-1120
Hex Head - M10 x 90 mm 28 Q-006-1132
Locking Nut M8 62 Q-006-1181
M8 Washer 32 Q-006-1183
Extra Low Head - M10 x 90 mm 20 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 128 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 32 Q-006-1385
Handle Bar 210 mm M8 2 Q-015-1037
Flat Shelf half - 1260 x 559.5 mm 6 Q-016-0290
Angled Plate - 1248 mm 6 Q-016-1238
