Stackable Shelf Rack - 1540 x 630 mm
Stackable Shelf Rack - 1540 x 630 mm
Stackable Shelf Rack - 1540 x 630 mm
Stackable Shelf Rack - 1540 x 630 mm
Q-100-0648

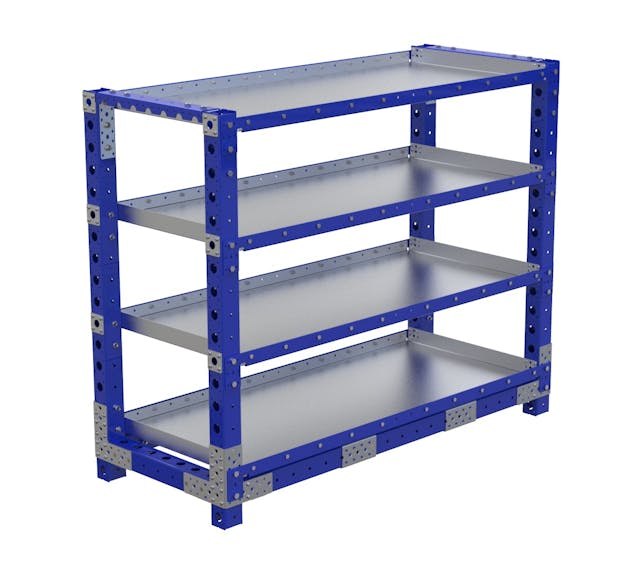

Stackable Shelf Rack - 1540 x 630 mm

Standard flat shelf rack equipped with four shelves.

Technical specifications

Width: 25 inch

More info

Stackable shelf rack for industrial use. This rack is a flat shelf rack and can be used for storing bins, totes or boxes. The shelf heights can be easily altered higher or lower depending on the height of your materials.

Parts included
FlexBeam™ - 1400 mm 4 Q-001-1297
FlexBeam™ 490 mm FE 10 Q-001-1410
FlexBeam™ 1260 mm FE 8 Q-001-1500
FlexPlate™ 20 Q-002-1001
L Bracket Joint 12 Q-005-0031
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 20 Q-005-1426
Hex Head - M10 x 25 mm 12 Q-006-1041
Locking Nut M10 88 Q-006-1042
Hex Head - M10 x 95 mm 4 Q-006-1088
Hex Head - M8 x 16 mm 80 Q-006-1120
Hex Head - M10 x 90 mm 56 Q-006-1132
Locking Nut M8 80 Q-006-1181
M8 Washer 40 Q-006-1183
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 160 Q-006-1384
Angled plate - 1528 mm 8 Q-016-0109
Flat Shelf - 1400 x 630 mm 4 Q-016-0325
