Sub Frame Half-EUR Pallet Carts 800 x 600 mm
Sub Frame Half-EUR Pallet Carts 800 x 600 mm
Q-007-1321

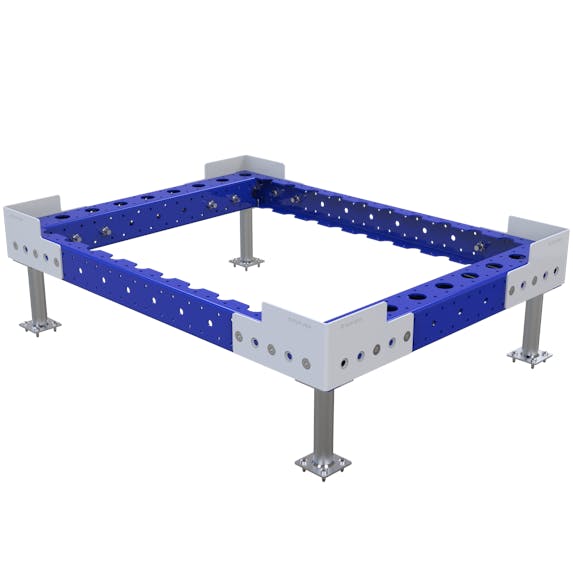

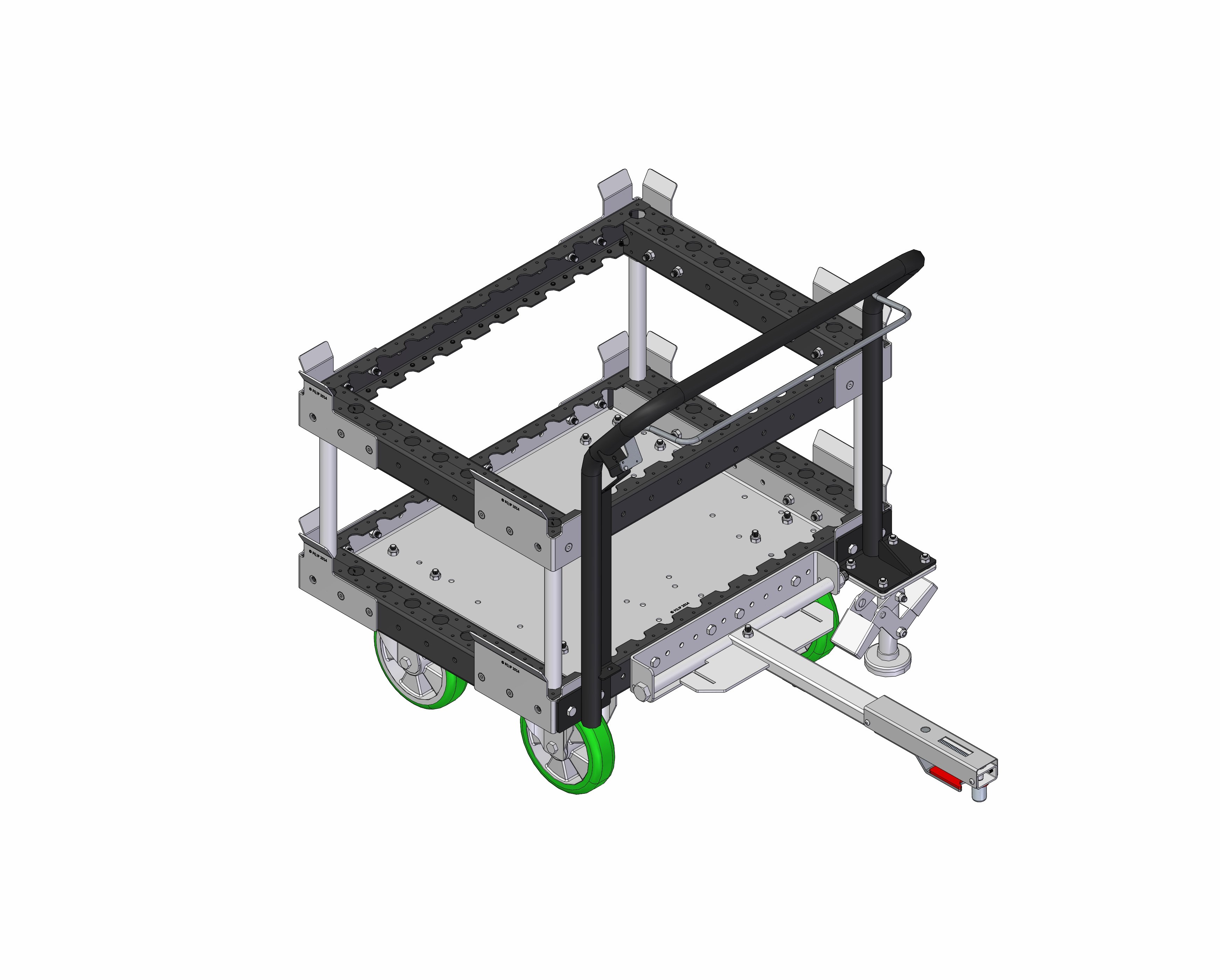

Sub Frame Half-EUR Pallet Carts 800 x 600 mm

Top structure designed to fit a half euro pallet cart.

Technical specifications

Category: Standard

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Transportation method: Manual

Width: 33 inch

Length: 50 inch

Load capacity: 2205 lbs

More info

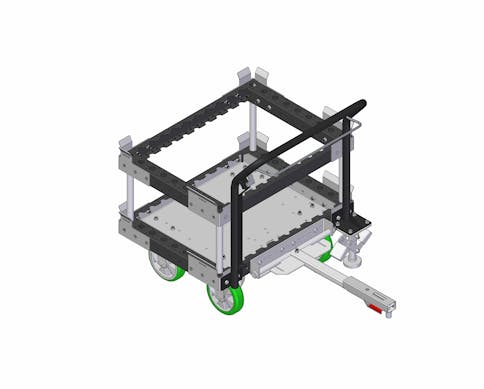

This subframe was designed to fit half-euro pallet carts. This helps raise the tugger carts to the correct height for the operator. These top structures can be easily added or removed.

Parts included
FlexBeam™ 560 mm 4 Q-001-1309
FlexBeam™ 840 mm FE 2 Q-001-1405
Angled Corner Plate 2 Q-005-1098
Left Angle Corner Plate 1 Q-005-1097
Right Angle Corner Plate 1 Q-005-1099
Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Locking Nut M10 16 Q-006-1042
64 mm FlexBeam™ Collet 8 Q-005-1426
Outer tube (One Plate) 350 mm 4 Q-000-1414
Self Tapping Screw M6 Torx H60 x 16 16 Q-006-1384
