Tool Kit Cart - 630 x 770 mm
Tool Kit Cart - 630 x 770 mm
Tool Kit Cart - 630 x 770 mm
Q-100-1671

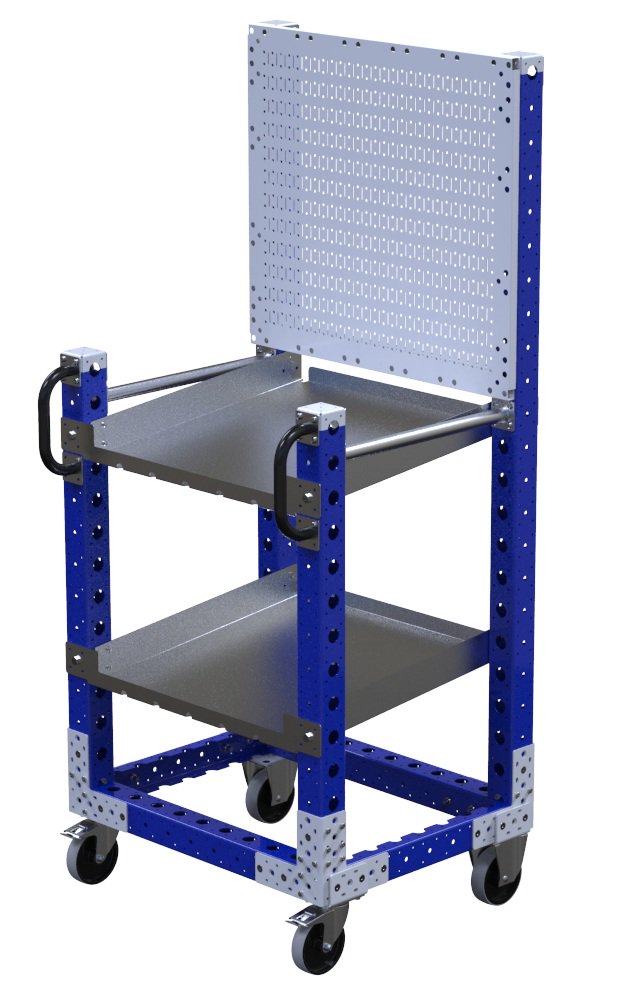

Tool Kit Cart - 630 x 770 mm

Cart for transporting tools, small components or boxes in the assembly lines.

Technical specifications

Category: Kitting Carts

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 25 inch

Length: 30 inch

Levels: 2

Load capacity: 492 lbs

Load Capacity per Level: 441 lbs

Transportation method: Manual

Caster size: 5 inch

Caster Type: Gray

Type of Load: Misc parts

More info

This tool cart can carry tools, boxes or small components in the two flow shelves. Also, the top section of the cart is equipped with a pegboard which tools can be hung from. This cart is a perfect helper in the assembly lines when you need to reduce walking distances. This cart is equipped with two handles for easy manoeuvrability and four polyurethane/nylon casters.

Parts included
FlexTube™ 490 mm 2 Q-000-1247
FlexTube™ 630 mm 2 Q-000-1312
FlexQube 4 Q-001-1078
FlexPlate™ 6 Q-002-1001
Flexplate™ M10 4 Q-002-1162
125 mm Swivel Caster with Brake 2 Q-004-1364
Fixed Caster - 125 mm 2 Q-004-1365
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
Spring Threaded Tube Connectors 4 Q-005-0469
Beam to Beam Corner Plate 4 Q-005-1356
64 mm FlexBeam™ Collet 16 Q-005-1426
Locking Nut M10 32 Q-006-1042
Washer M10 8 Q-006-1043
Hex Head - M8 x 16 mm 4 Q-006-1120
Hex Head - M10 x 90 mm 4 Q-006-1132
Locking Nut M8 16 Q-006-1181
M8 Washer 4 Q-006-1183
M8 x 16 mm Countersunk 16 Q-006-1214
Hex Head Fully Threaded - M10 x 50 mm 2 Q-006-1343
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 124 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 16 Q-006-1410
Handle Bar 210 mm M8 2 Q-015-1037
Flow Shelf - 770 x 632 2 Q-016-0013
FlexBeam - 910 mm 4 Q-020-0910
FlexBeam™ 1540 mm STS 4 Q-020-1540
FlexBeam™ FE - 630 mm 2 Q-021-0630
