Q-100-0784

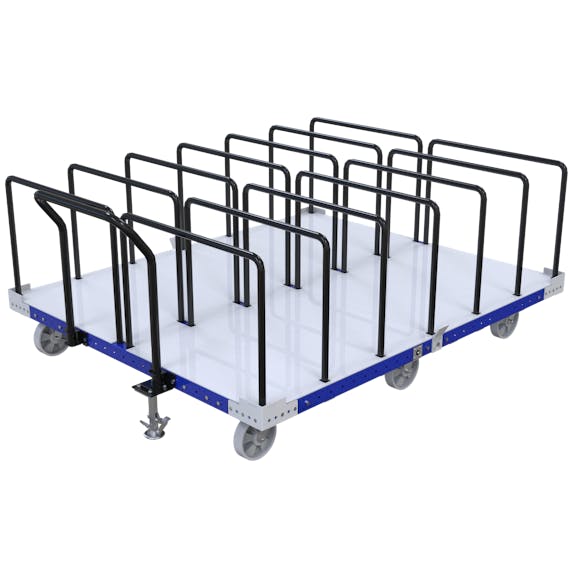

Transport Cart - 71 x 85 inch

Specially designed cart for standing walls and panels upright.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Length: 85 inch

Width: 72 inch

Load capacity: 496 lbs

Transportation method: Manual

Caster size: 8 inch

Caster Type: Polyurethane

Type of Load: Misc parts

More info

This transport cart was custom designed to carrying walls and panels upright. It is equipped with an ergonomic handlebar to make it easier to transport the cart manually. It also comes equipped with a floor lock brake to keep it secure when not in use.

Parts included
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 910 mm 4 Q-001-1304
FlexBeam™ 1190 mm FE 8 Q-001-1400
FlexBeam™ 1050 mm FE 2 Q-001-1402
FlexBeam™ 980 mm FE 2 Q-001-1403
FlexBeam™ 840 mm FE 4 Q-001-1405
FlexBeam™ 630 mm FE 2 Q-001-1408
FlexBeam™ 490 mm FE 2 Q-001-1410
Flexplate M10 Countersunk 12 Q-002-0009
FlexPlate™ 34 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Polyamide Caster 200 mm without Brake 4 Q-004-1352
Polyamide Caster 200 mm Fixed 2 Q-004-1354
US Floor Brake - 200 mm 1 Q-004-1613
L Bracket Joint 8 Q-005-0031
Pipe Rail - 840 x 630 mm 14 Q-005-0535
Wheel Attachment Box 6 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 20 Q-005-1426
Corner Pallet Guide 2 Q-005-1684
Hex Head - M10 x 25 mm 46 Q-006-1041
Locking Nut M10 114 Q-006-1042
M10 x 160 mm 10 Q-006-1055
Hex Head - M10 x 95 mm 2 Q-006-1088
Hex Head - M10 x 90 mm 36 Q-006-1132
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 136 Q-006-1384
Low Allen Head - M10 x 16 mm 4 Q-006-1409
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Plastic Bottom Plate - 1818 x 1083 mm 2 Q-016-0386
