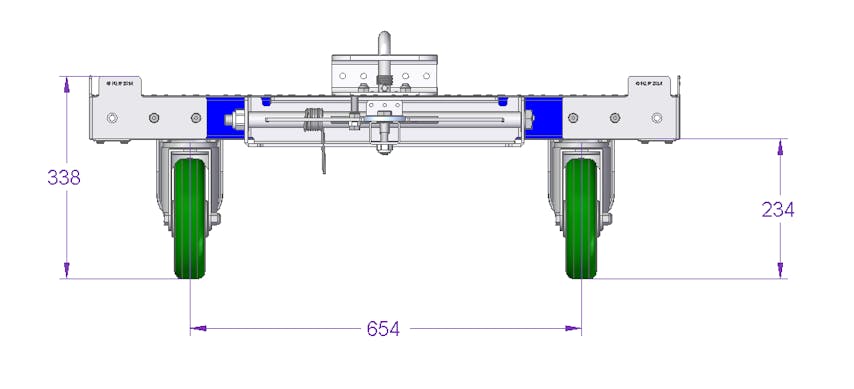

Tugger Cart - 1120 x 980 mm
Tugger Cart - 1120 x 980 mm
Tugger Cart - 1120 x 980 mm
Tugger Cart - 1120 x 980 mm
Q-100-0630

Tugger Cart - 1120 x 980 mm

Standard tugger cart with steel flat deck for transporting containers.

Technical specifications

Category: Flat Deck

Type of tow bar: Tongue and Hitch

Width: 39 inch

Length: 44 inch

Load capacity: 1102 lbs

Transportation method: Tugger

Caster size: 8 inch

Caster Type: Polyurethane

More info

This tugger cart was designed to transport containers, but can also be used to transport different sized pallets. It is equipped with a drop pin and hitch tow bar for transportation within a tugger train system. It has four high quality polyurethane casters for improved tracking.

Parts included
FlexBeam™ 980 mm 2 Q-001-1303
FlexBeam™ 910 mm 4 Q-001-1304
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexPlate™ 4 Q-002-1001
Caster Polyurethane - 200 mm 2 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
Towing Hole 2 Q-005-1056
Spring for Tow Bar 1 Q-005-1070
Wheel Attachment Box 4 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 14 Q-005-1426
Allen Head - M6 x 30 mm 1 Q-006-1012
Hex Head - M20 x 500 mm 1 Q-006-1016
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 24 Q-006-1041
Locking Nut M10 53 Q-006-1042
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 90 mm 6 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Nut M10 1 Q-006-1195
Hex Head Fully Threaded - M10 x 50 mm 1 Q-006-1343
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 16 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 40 Q-006-1385
M20 Locking Nut 1 Q-006-1405
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Compression Spring for US Tow Hitch 1 Q-012-0007
Top Plate - 1120 x 980 mm 1 Q-016-0287
US Modular Tow Bar VKR - Lip - 380 mm 1 Q-017-0015
Handle for Tow Hole 1 Q-017-0022
Towing Lip - 28 mm 1 Q-017-1010
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
