Tugger Cart - 1260 x 1050 mm

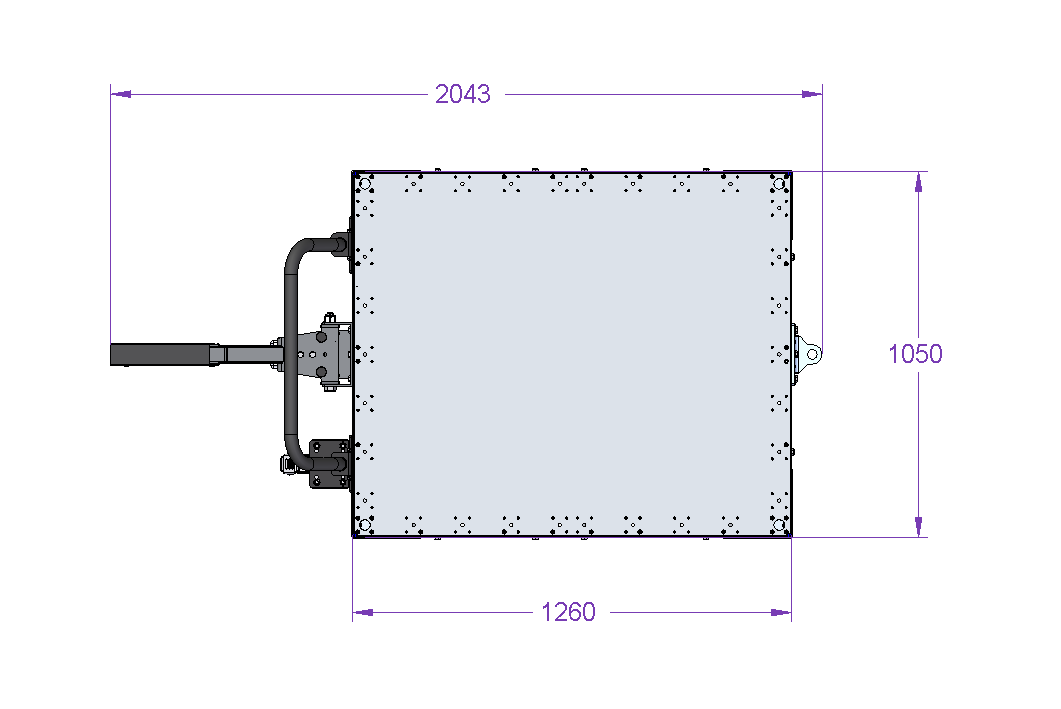

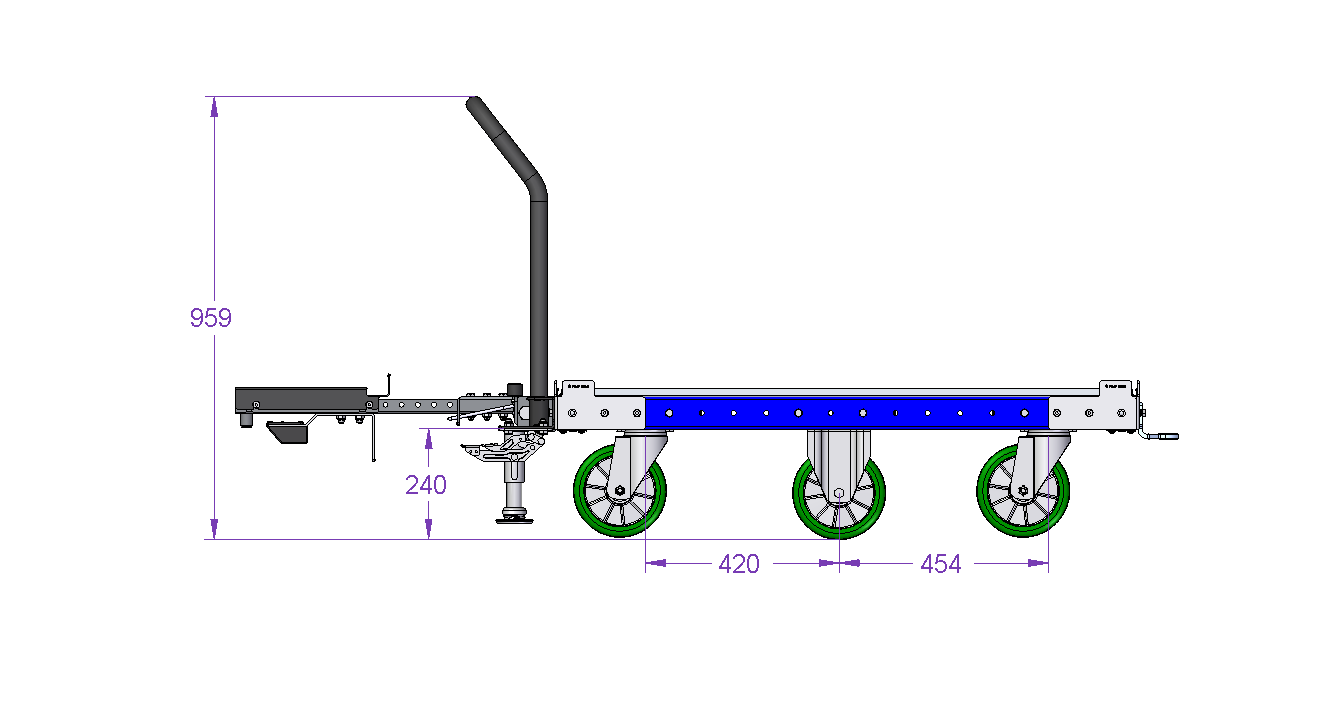

Tugger cart 1260 x 1050 mm
Tugger cart 1260 x 1050 mm

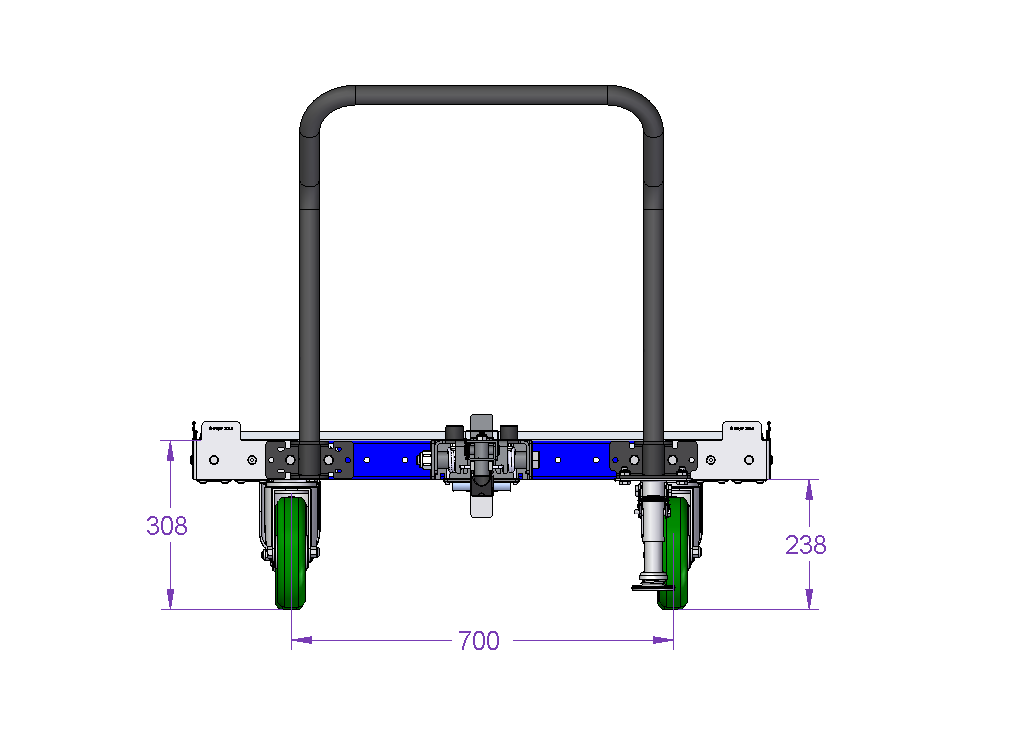

Tugger Cart - 1260 x 1050 mm
Q-100-0762

Tugger Cart - 1260 x 1050 mm

Standard tugger cart with handlebar and tow bar.

Technical specifications

Category: Flat Deck

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 41 inch

Length: 50 inch

Load capacity: 2205 lbs

Transportation method: Manual, Tugger

Caster size: 8 inch

Caster Type: Polyurethane

Type of Load: Pallets and Containers

More info

This tugger cart is designed for carrying containers and pallets. This cart has foot release tow bar for transportation using a tugger train system. It also has an ergonomic handlebar attached for manual transportation.

Parts included
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexBeam™ 1050 mm FE 2 Q-001-1402
FlexBeam™ 910 mm FE 2 Q-001-1404
Flexplate™ M10 22 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
Floor Brake LTL - 200 mm 1 Q-004-1359
37 mm collet 2 Q-005-0297
163 mm Collet - 30 x 2 mm 1 Q-005-0298
184 mm Collet - 25 x 2 mm 1 Q-005-0299
Quick Release Plate 1 Q-005-0300
27 mm collet - 15 x 2 mm 3 Q-005-0341
Spring tow bar 1 Q-005-0450
Spring cover plate new 1 Q-005-0536
M8 Damper - GN352-30-25-M8-S-55 2 Q-005-0648
Wheel Attachment Box 6 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 24 Q-005-1426
M10 x 80 mm Countersunk 1 Q-006-0019
Washer 10,5 x 30 x 2,5 2 Q-006-1030
Hex Head - M10 x 25 mm 40 Q-006-1041
Locking Nut M10 84 Q-006-1042
Hex Head - M10 x 95 mm 7 Q-006-1088
Hex Head - M10 x 90 mm 13 Q-006-1132
Locking Nut M8 2 Q-006-1181
Hex Head Fully Threaded - M10 x 50 mm 3 Q-006-1343
Hex head M20 x 210 mm 1 Q-006-1364
Extra Low Head - M10 x 90 mm 14 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 70 Q-006-1384
M20 Locking Nut 1 Q-006-1405
Low Allen Head - M10 x 16 mm 4 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 2 Q-006-1502
Spring 1,5 x 15yd x 70 1 Q-012-1141
Handlebar Attachment EUR 1 Q-015-0026
Handlebar / Floor brake attachment EUR 1 Q-015-0027
Tube for Handlebar EUR 1 Q-015-0033
Bottom Plate - 1260 x 1050 mm 1 Q-016-1076
Foot Release Locking Lip 1 Q-017-0024
Countersunk towing lock pin - 63 mm 1 Q-017-0034
Hinge attachment 1 Q-017-0035
Towbar Hinge 1 Q-017-0036
Modular Towbar - 605 mm 1 Q-017-0038
Collet 43.5 x 15 x M10 Threads 2 Q-017-0039
Modular Tow Bar Slider 1 Q-017-0053
Locking lip attachment 1 Q-017-1043
Tow Hole 28 mm - Symmetric 1 Q-017-1066
