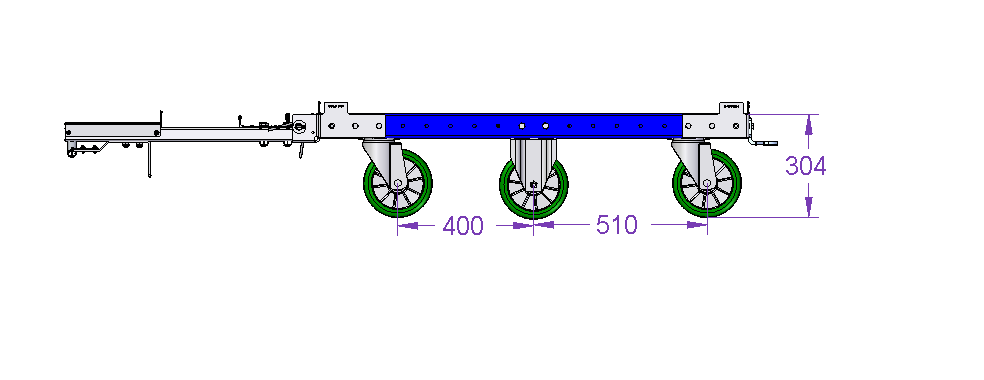

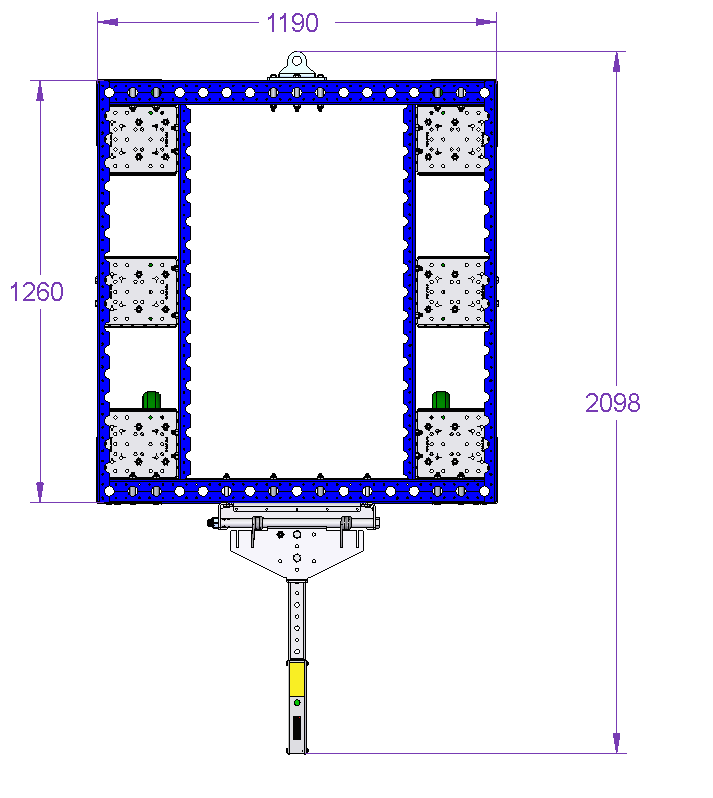

Tugger Cart 1260 x 1190 mm
Tugger Cart 1260 x 1190 mm
Q-007-3070

Tugger Cart 1260 x 1190 mm

Standard tugger cart designed for transporting pallets and containers.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 47 inch

Length: 50 inch

Load capacity: 1001 lbs

Transportation method: Manual, Tugger

Caster size: 8 inch

Caster Type: Polyurethane

More info

This tugger cart without flat deck is designed for containers. This industrial cart is equipped with a foot release tow bar for improved ergonomics and use in a tugger train system. It is equipped with six polyurethane casters for improved tracking in a train.

Parts included
FlexBeam™ 1120 mm 6 Q-001-1301
FlexBeam™ 1260 mm FE 2 Q-001-1500
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
Spring Cover Plate 1 Q-005-1025
Spring for Tow Bar 2 Q-005-1070
Wheel Attachment Box 6 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 15 Q-005-1426
Sticker Green/Red 1 Q-005-1659
Hex Head - M20 x 500 mm 2 Q-006-1016
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 3 Q-006-1039
Hex Head - M10 x 25 mm 40 Q-006-1041
Locking Nut M10 66 Q-006-1042
Hex Head - M10 x 90 mm 4 Q-006-1132
Nut M10 1 Q-006-1195
Hex Head - M10 x 100 mm 3 Q-006-1302
Hex Head - M14 x 85 mm 1 Q-006-1308
Hex Head Fully Threaded - M10 x 50 mm 1 Q-006-1343
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 6 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 2 Q-006-1502
Spring 1,5 x 15yd x 70 1 Q-012-1141
US Modular Tow Bar VKR - Foot Release - 670 mm 1 Q-017-0012
Cotter Pin - 3,2 x 32 mm 2 Q-017-0023
Foot Release Locking Lip 1 Q-017-0024
Locking lip attachment 1 Q-017-1043
Tow Bar Lock Tube - 498 mm 1 Q-017-1061
Tow Hole 28 mm - Symmetric 1 Q-017-1066
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
Towing Lock Pin US 1 Q-017-1105
39 mm Sleeve for M10 US 2 Q-017-1106
