Tugger Cart - 1260 x 1190 mm
Tugger Cart - 1260 x 1190 mm
Tugger Cart - 1260 x 1190 mm
Tugger Cart - 1260 x 1190 mm
Q-100-1251

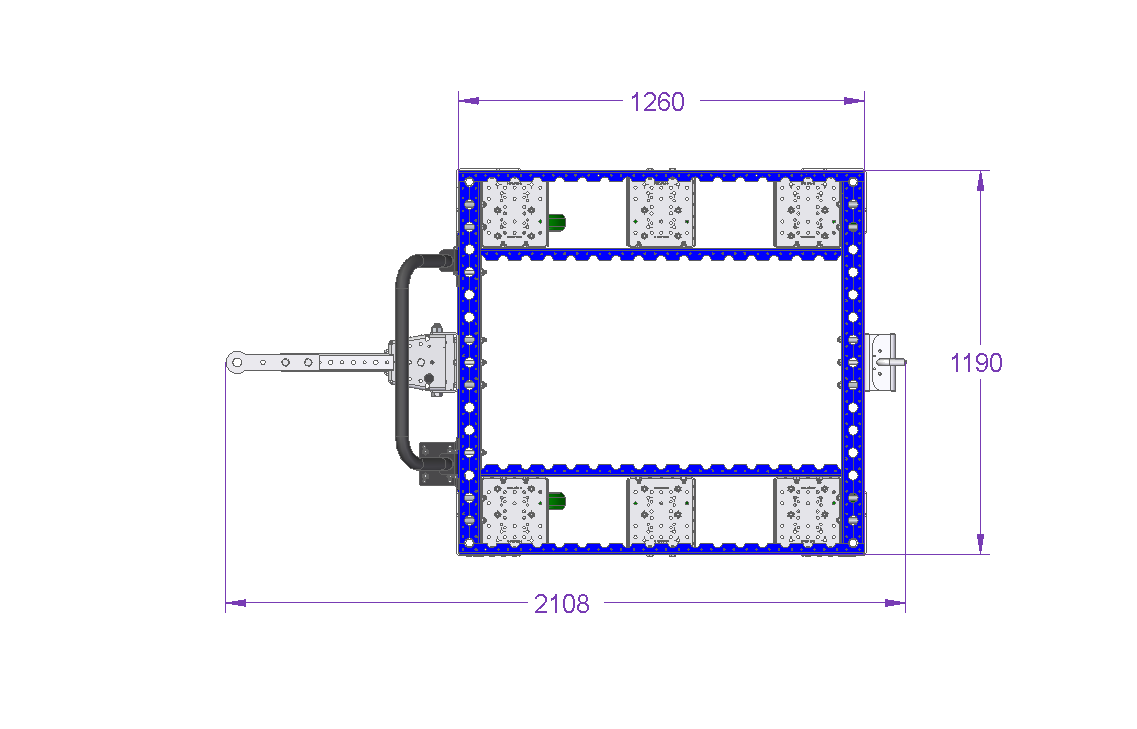

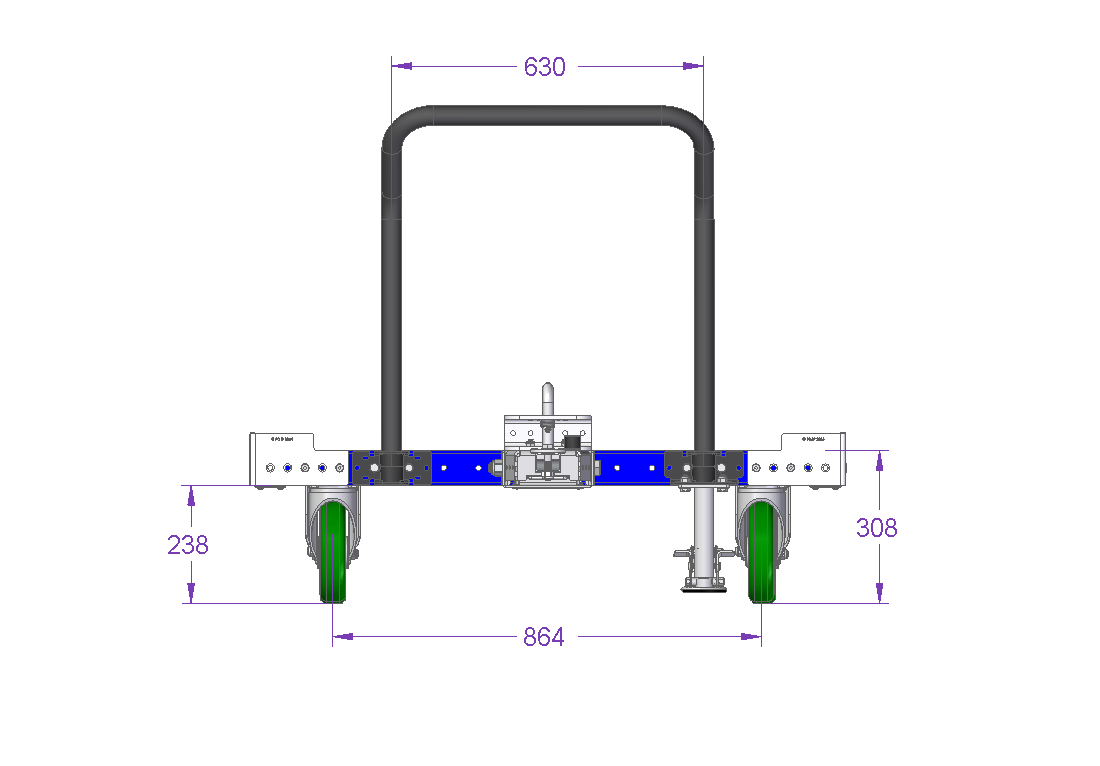

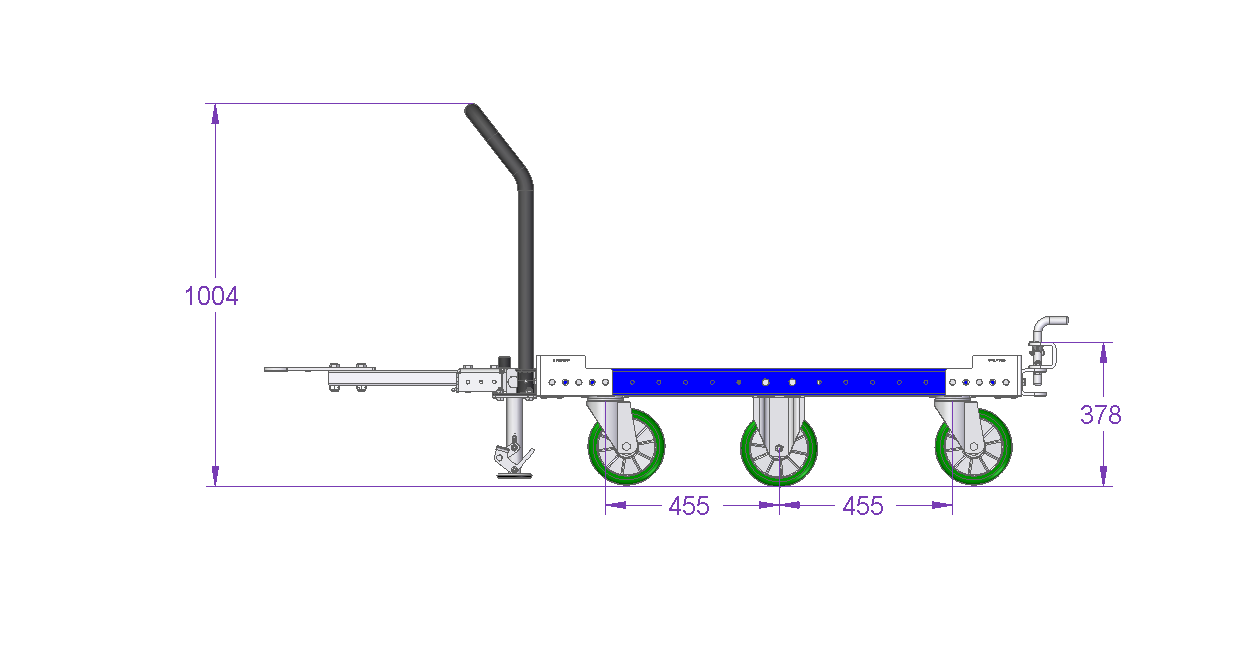

Tugger Cart - 1260 x 1190 mm

Tuggable pallet/container cart equipped with a handlebar, floor brake and six polyurethane casters

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 47 inch

Length: 50 inch

Load capacity: 2205 lbs

Transportation method: LiftRunner Frames, Manual, Tugger

Caster size: 8 inch

Caster Type: Polyurethane

Type of Load: Pallets and Containers

More info

Tuggable pallet cart designed for one pallet/container size. The cart comes equipped with a handlebar, floor brake and six high quality polyurethane casters giving the cart excellent tracking properties and silent movement in a train

Parts included
FlexBeam™ 1120 mm 6 Q-001-1301
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 4 Q-002-1001
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 200 mm Swivel 4 Q-004-1211
Caster Polyurethan 200 mm Fixed IP2 2 Q-004-1212
US Floor Brake - 200 mm 1 Q-004-1613
Wheel Attachment Box 6 Q-005-1079
64 mm FlexBeam™ Collet 12 Q-005-1426
Pallet Guide Heavy - 5 mm 4 Q-005-1645
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 46 Q-006-1041
Locking Nut M10 74 Q-006-1042
Hex Head - M10 x 90 mm 8 Q-006-1132
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 16 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 12 Q-006-1410
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge - Narrow 1 Q-017-0087
US Modular tow bar VKR - Lip - 450 mm 1 Q-017-0092
Towing Lip - 28 mm 1 Q-017-1010
