Q-100-1622

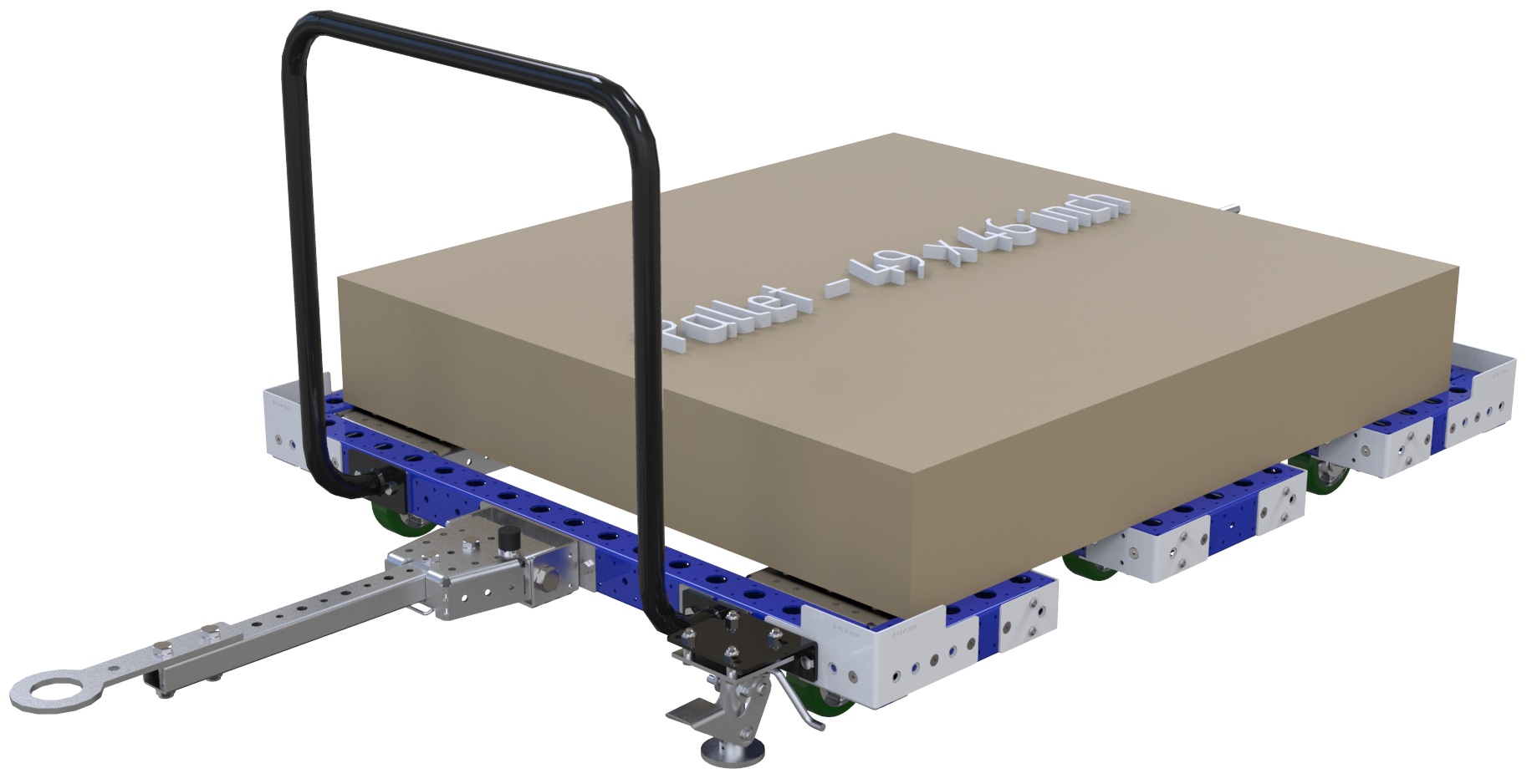

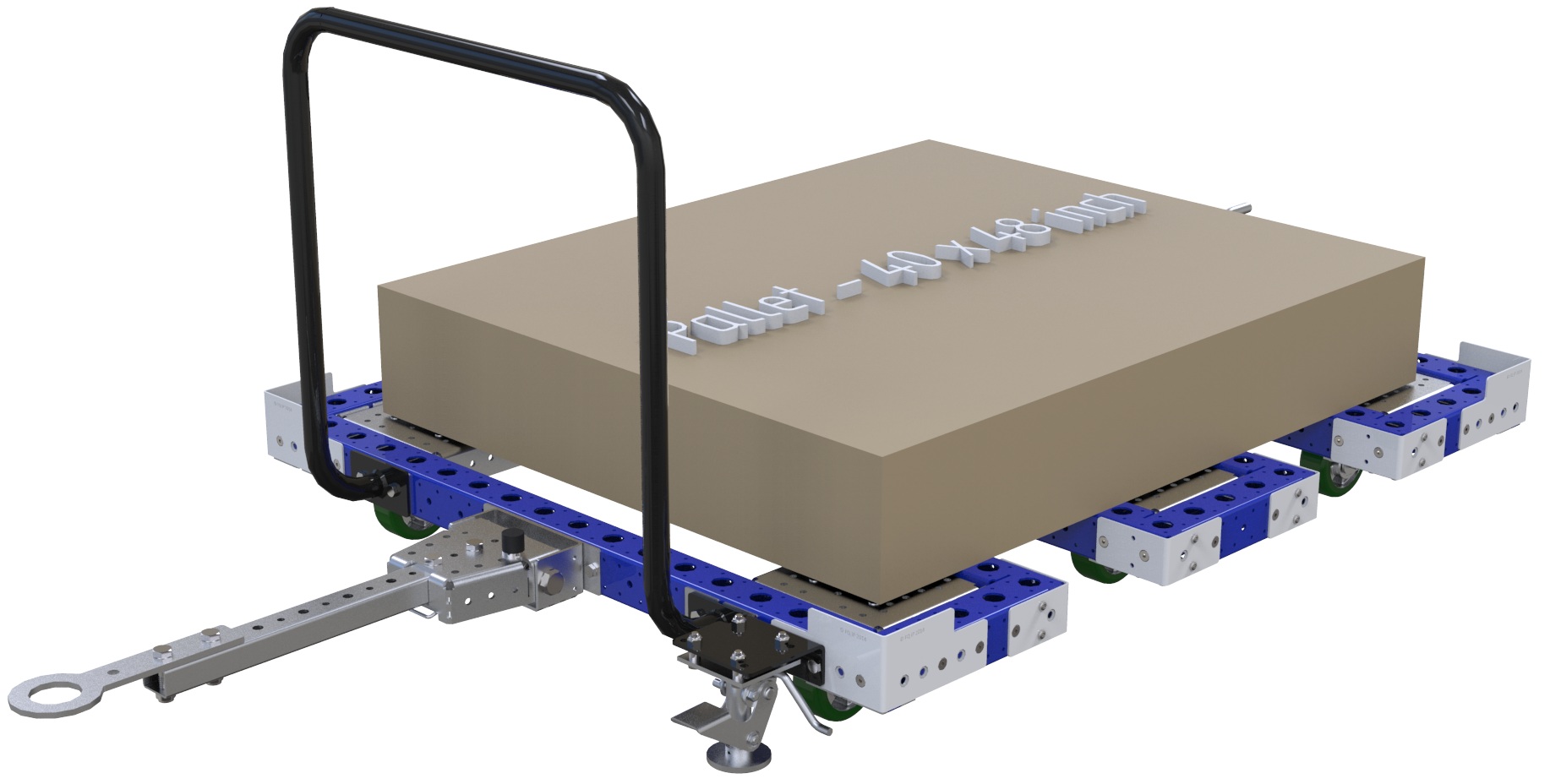

Tugger Cart - 1260 x 1470 mm

This tugger pallet cart is designed to transport pallets and containers.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 50 inch

Length: 58 inch

Load capacity: 595 lbs

Transportation method: Manual, Tugger

Caster size: 5 inch

Caster Type: Polyurethane

More info

This tugger pallet guide has a custom base structure that allows placing the pallets/containers easily with the forklift or any other lifting vehicle. The cart is equipped with a drop-pin and hitch towbar, a handlebar and floor friction brake.

Parts included
FlexPlate™ 20 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Flexplate™ M10 20 Q-002-1162
FlexPlate™ half 4 Q-002-1369
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 125 mm 4 Q-004-1106
Caster Polyurethane 125 mm Fixed 2 Q-004-1107
Floor Lock COLSON 4 x 4-1/2 1 Q-004-1369
Wheel Attachment Box - 5 mm 6 Q-005-0046
L-Bracket Joint - 70 x 70 mm 4 Q-005-0429
Triangle Joint 2 Q-005-0483
Triangle Joint With Notch 2 Q-005-0832
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 46 Q-005-1426
M10 Collet - 15 mm 4 Q-006-0027
M6 x 20 K6S 10.9 Round Head (black) 10 Q-006-1018
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 2 Q-006-1041
Locking Nut M10 93 Q-006-1042
Washer M10 48 Q-006-1043
Hex Head - M10 x 95 mm 4 Q-006-1088
Hex Head - M10 x 90 mm 28 Q-006-1132
Hex Head - M10 x 40 4 Q-006-1208
Extra low head [1,5 mm] M10x40 mm 8 Q-006-1361
Extra Low Head - M10 x 90 mm 22 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 102 Q-006-1384
Low Allen Head - M10 x 16 mm 2 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 24 Q-006-1410
FlexHandle low rider w floor lock plate - 700 mm 1 Q-015-0016
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge - Narrow 1 Q-017-0087
Towing Lip - 2,5 Inch 1 Q-017-1012
