Tugger Cart - 1260 x 1820 mm
Tugger Cart - 1260 x 1820 mm
Tugger Cart - 1260 x 1820 mm
Tugger Cart - 1260 x 1820 mm
Q-100-1351

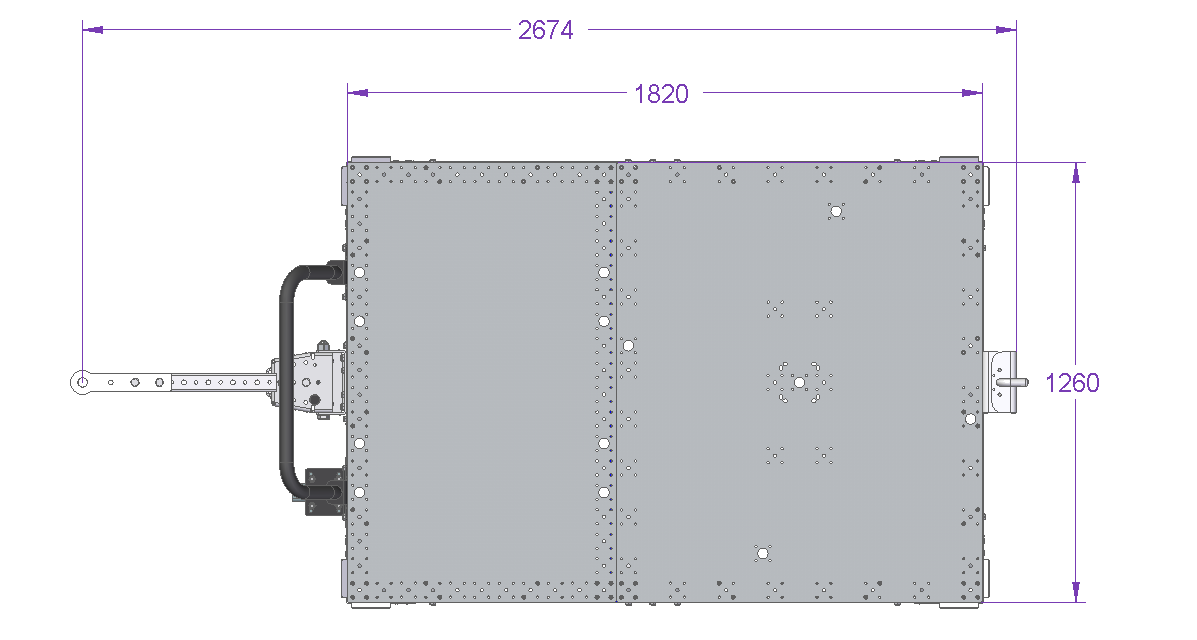

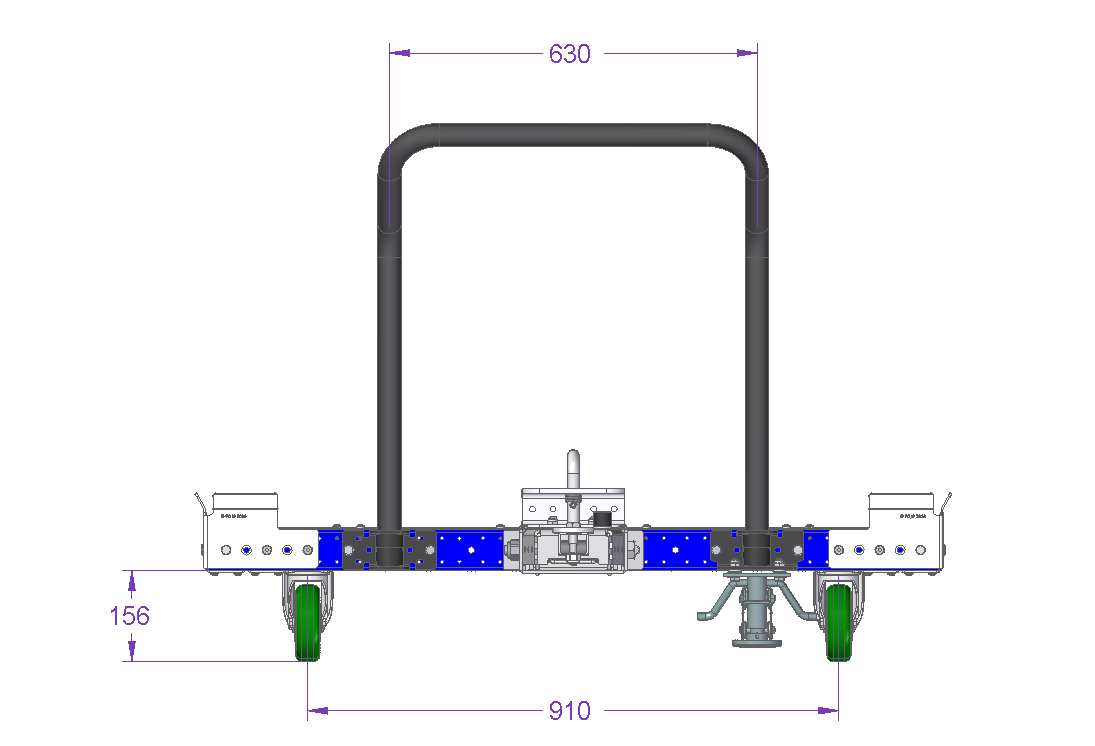

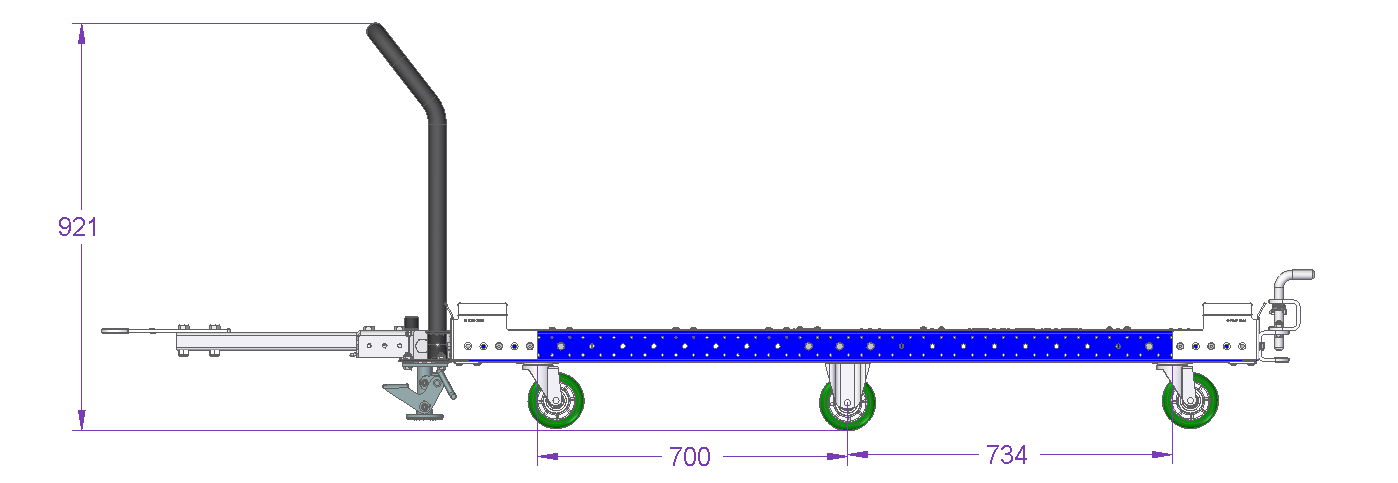

Tugger Cart - 1260 x 1820 mm

Tugger flatbed pallet cart equipped with a handlebar, floor brake and six polyurethane casters.

Technical specifications

Category: Flat Deck

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 50 inch

Length: 72 inch

Load capacity: 1433 lbs

Transportation method: Manual, Tugger

Caster size: 5 inch

Caster Type: Polyurethane

More info

This flatbed pallet cart is great for transportation of larger pallets and containers or several smaller. The cart is equipped with a tow bar and a floor brake as well as six high quality polyurethane casters which gives the cart excellent tracking properties and silent movement when connected in a train

Parts included
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 12 Q-002-1162
Floor lock COLSON - 4 x 4-1/2 - 125 - 150 mm 1 Q-004-0031
Caster Polyurathane 125 mm 80 x 60 Swivel 4 Q-004-1220
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
Wheel Attachment Box 6 Q-005-1079
Angled Corner Plate 4 Q-005-1098
64 mm FlexBeam™ Collet 26 Q-005-1426
Wheel Attachment - 80 x 60 mm 2 Q-005-1722
Hex Head Fully Threaded - M8 x 20 mm 24 Q-006-1019
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 16 Q-006-1041
Locking Nut M10 64 Q-006-1042
Washer M10 12 Q-006-1043
Hex Head - M10 x 95 mm 2 Q-006-1088
Hex Head - M10 x 90 mm 20 Q-006-1132
Hex Head - M10 x 30 mm 4 Q-006-1161
Locking Nut M8 24 Q-006-1181
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 96 Q-006-1384
Low Allen Head - M10 x 16 mm 2 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
Top Plate - 1260 x 770 mm 1 Q-016-0517
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Spring Loaded Tow Hinge 1 Q-017-0067
Heavy Duty Tow Hinge - Narrow 1 Q-017-0087
Towing Lip - 28 mm 1 Q-017-1010
