Tugger Cart - 1260 x 840 mm
Tugger Cart - 1260 x 840 mm
Tugger Cart - 1260 x 840 mm
Tugger Cart - 1260 x 840 mm
Q-100-0739

Tugger Cart - 1260 x 840 mm

Standard tugger cart without steel deck.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 33 inch

Length: 50 inch

Load capacity: 2425 lbs

Transportation method: Manual, Tugger

Caster size: 8 inch

Caster Type: Polyurethane

Type of Load: Pallets and Containers

More info

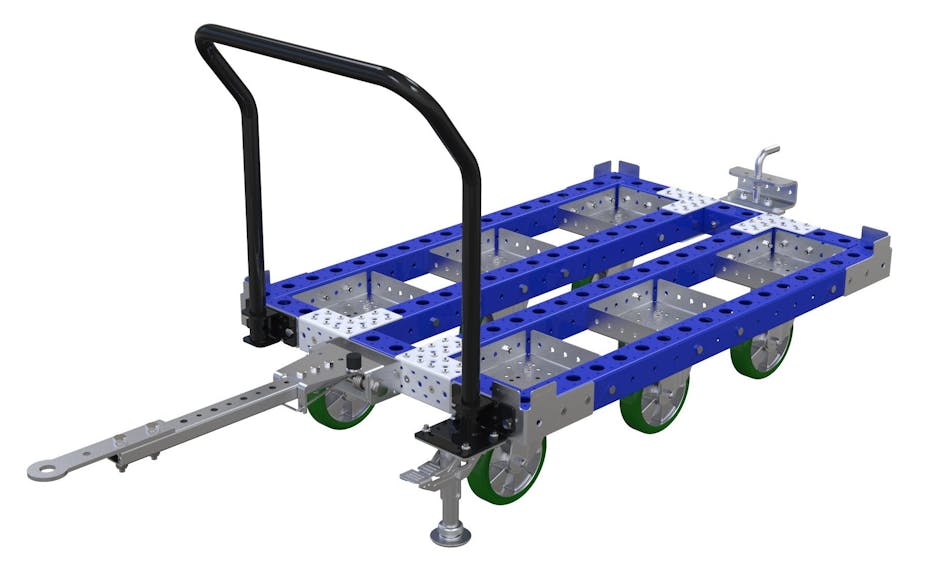

This tugger cart is a basic design for transporting pallets and containers. It has a drop pin and hitch tow bar for use in a tugger train system. It has a six caster set up for better overall tracking when in the tugger train. There is also an ergonomic handlebar for easier pushing by an operator.

Parts included
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 1120 mm FE 4 Q-001-1401
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 14 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
Floor Brake LTL - 200 mm 1 Q-004-1359
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
Wheel Attachment Box 6 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 18 Q-005-1426
Heavy Duty Joint M10 4 Q-005-1580
Allen Head - M6 x 30 mm 1 Q-006-1012
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Hex Head - M10 x 25 mm 30 Q-006-1041
Locking Nut M10 83 Q-006-1042
Washer M10 2 Q-006-1043
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 95 mm 4 Q-006-1088
Hex Head - M10 x 90 mm 22 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 1 Q-006-1181
Hex Head Fully Threaded - M10 x 50 mm 3 Q-006-1343
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 128 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 6 Q-006-1410
Compression Spring for US Tow Hitch 1 Q-012-0007
Handlebar Attachment EUR 1 Q-015-0026
Handlebar / Floor brake attachment EUR 1 Q-015-0027
Tube for Handlebar EUR 1 Q-015-0033
Handle for Tow Hole 1 Q-017-0022
EUR modular Tow bar VKR - Lip - 520 mm 1 Q-017-0031
Tow Hinge Module 1 Q-017-0059
Towing Lip - 28 mm 1 Q-017-1010
