Tugger Cart - 1260 x 840 mm
Tugger Cart - 1260 x 840 mm
Tugger Cart - 1260 x 840 mm
Tugger Cart - 1260 x 840 mm
Q-100-0828

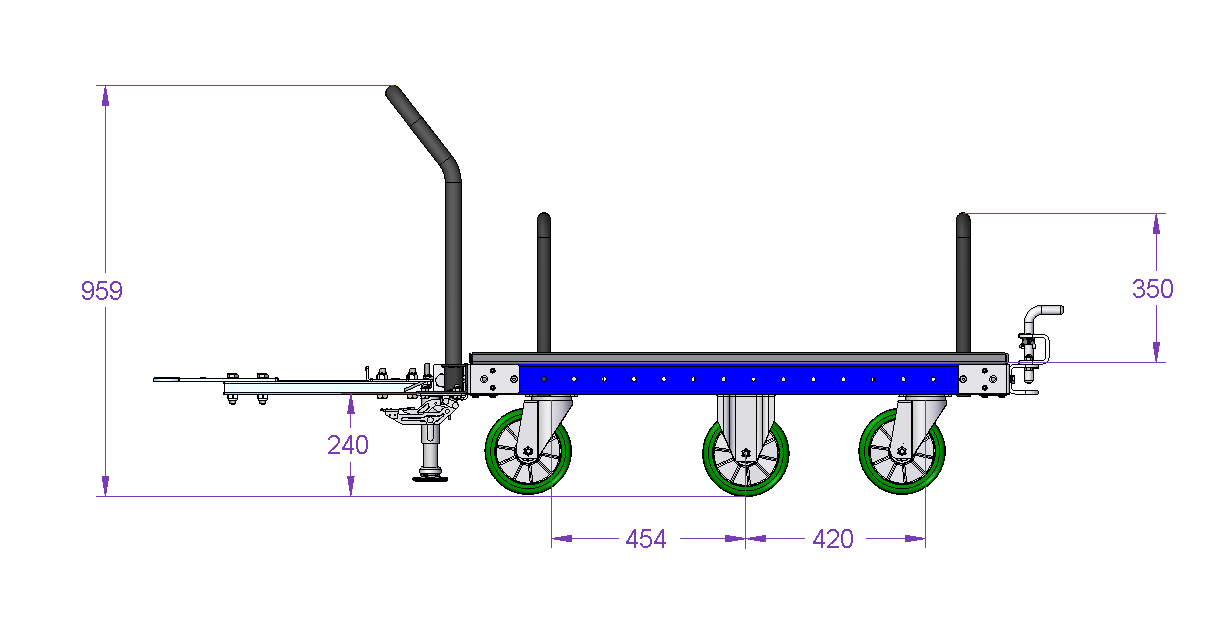

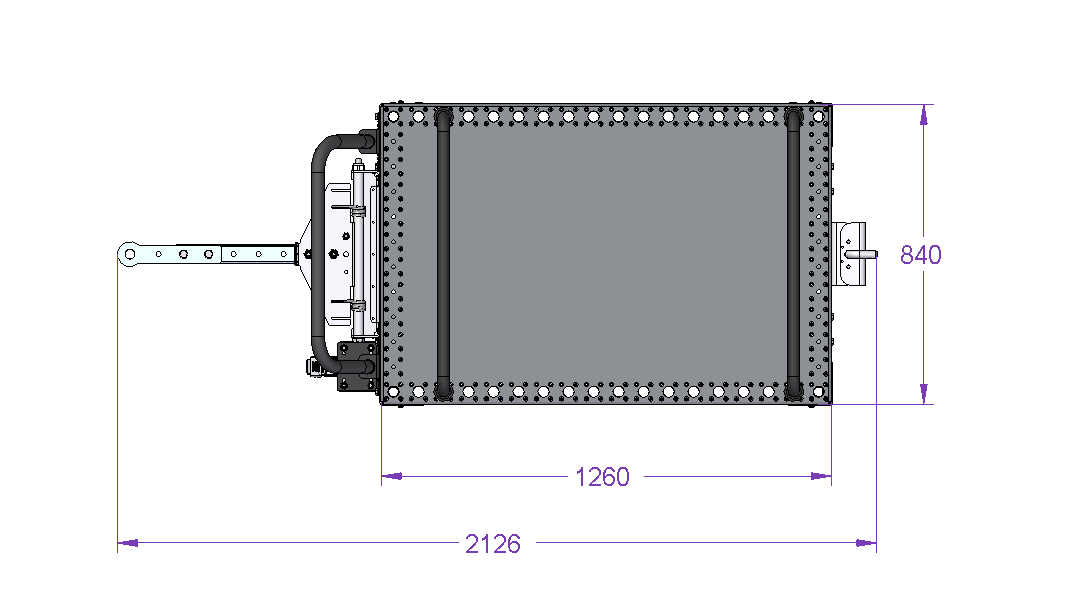

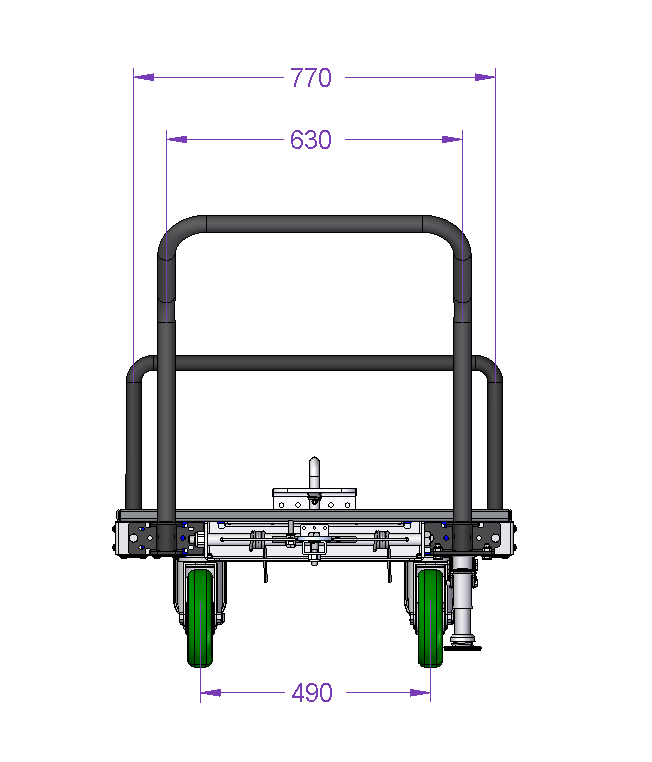

Tugger Cart - 1260 x 840 mm

Custom tugger cart with added handlebars to keep the materials secure.

Technical specifications

Category: Flat Deck

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 33 inch

Length: 49 inch

Load capacity: 2205 lbs

Transportation method: Manual, Tugger

Caster size: 8 inch

Caster Type: Polyurethane

Type of Load: Pallets and Containers

More info

This tugger Cart with a flat deck is used to hold containers and pallets. The added handlebars help to keep the containers secure while on the cart. This tugger cart comes with a spring-loaded tow bar and a floor brake. It also comes with a push handle for easy use.

Parts included
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexPlate™ 4 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Flexplate™ M10 16 Q-002-1162
Flexplate™ 30,5 mm hole 4 Q-002-1320
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
Floor Brake LTL - 200 mm 1 Q-004-1359
Towing VKR - 460 mm 1 Q-005-0102
Old part: Spring for Tow Bar 2 Q-005-1012
Towing Hole 2 Q-005-1056
Wheel Attachment Box 6 Q-005-1079
64 mm FlexBeam™ Collet 4 Q-005-1426
Allen Head - M6 x 30 mm 1 Q-006-1012
Hex Head - M20 x 500 mm 1 Q-006-1016
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 54 Q-006-1041
Locking Nut M10 79 Q-006-1042
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 95 mm 4 Q-006-1088
Hex Head - M10 x 90 mm 8 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Nut M10 1 Q-006-1195
Hex Head Fully Threaded - M10 x 50 mm 1 Q-006-1343
Extra Low Head - M10 x 90 mm 4 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 40 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 60 Q-006-1385
M20 Locking Nut 1 Q-006-1405
Low Allen Head - M10 x 16 mm 4 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 2 Q-006-1410
Compression Spring for US Tow Hitch 1 Q-012-0007
Handlebar Attachment EUR 1 Q-015-0026
Handlebar / Floor brake attachment EUR 1 Q-015-0027
Tube for Handlebar EUR 1 Q-015-0033
Removable Handlebar with stopper 2 Q-015-0093
Top Plate W Edge - 1260 x 840 mm 1 Q-016-0399
Handle for Tow Hole 1 Q-017-0022
Towing Lip - 28 mm 1 Q-017-1010
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
