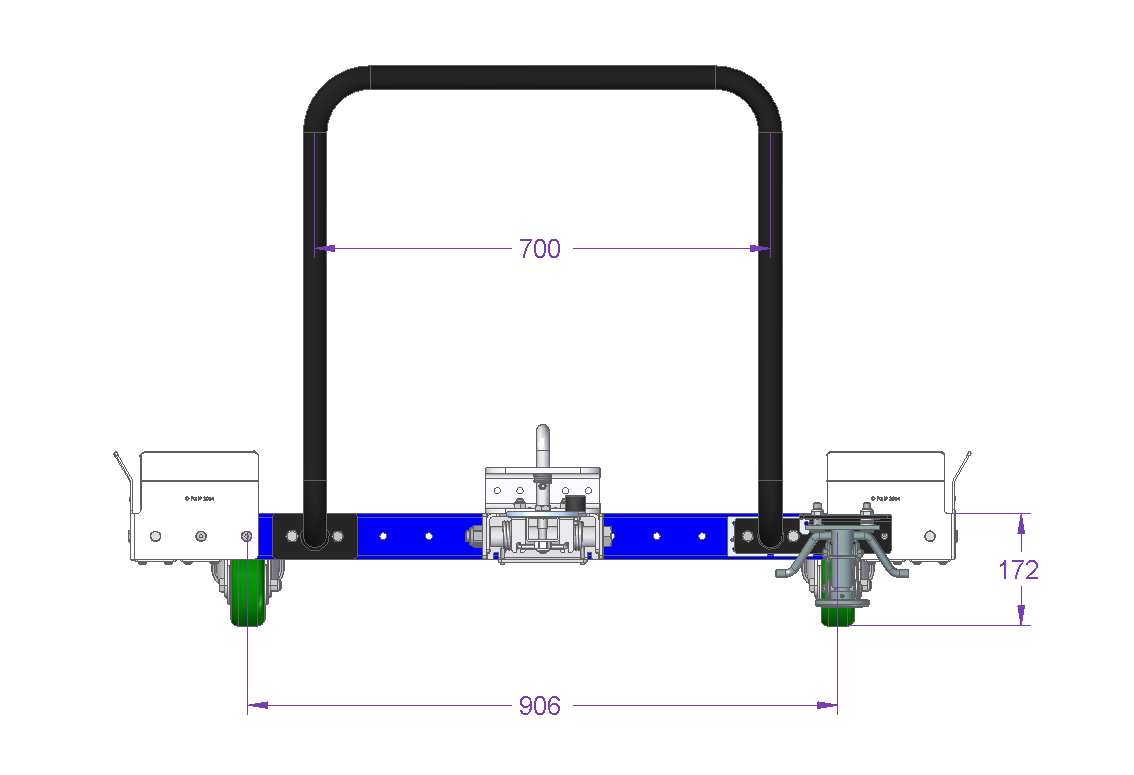

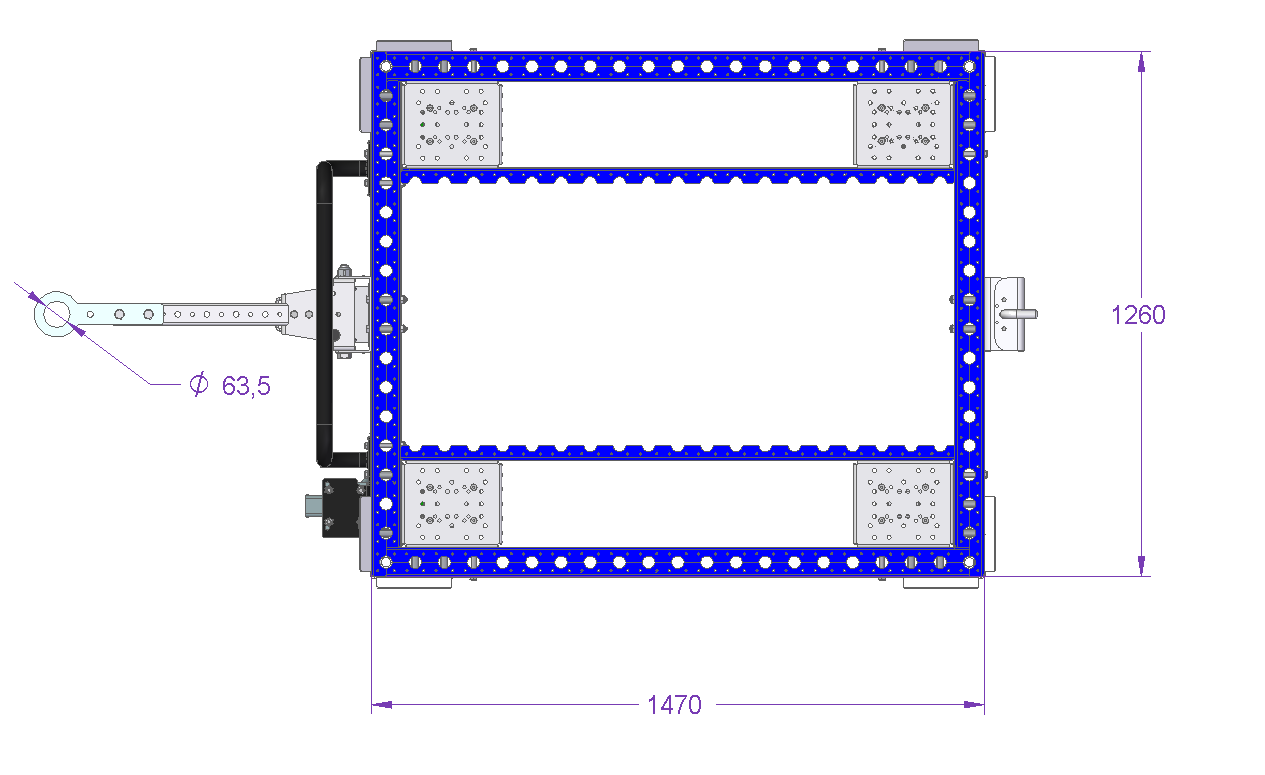

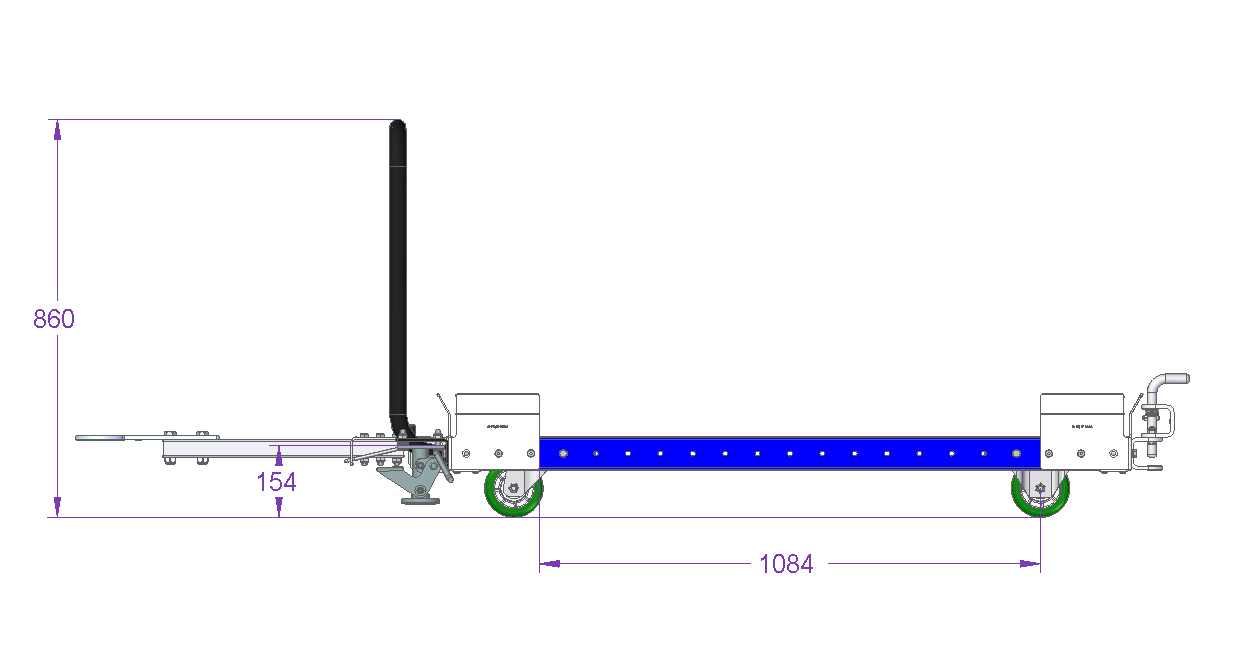

Tugger Cart - 1470 x 1260 mm
Tugger Cart - 1470 x 1260 mm
Tugger Cart - 1470 x 1260 mm
Tugger Cart - 1470 x 1260 mm
Q-100-1091

Tugger Cart - 1470 x 1260 mm

Tuggable pallet cart equipped with a handlebar, floor brake and six polyurethane casters.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 50 inch

Length: 58 inch

Load capacity: 1499 lbs

Transportation method: Manual, Tugger

Caster size: 5 inch

Caster Type: Polyurethane

More info

Tuggable pallet/container cart, since it doesn’t have a flatbed it can only be used for one container size. The cart is equipped with a handlebar, floor brake and six high quality polyurethane casters which gives the cart excellent tracking properties and silent movement when connected in a train

Parts included
FlexBeam™ - 1400 mm 4 Q-001-1297
FlexBeam™ 1120 mm FE 2 Q-001-1401
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexBeam™ - 1330 mm FE 2 Q-001-1501
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 15 Q-002-1162
Floor lock COLSON - 4 x 4-1/2 - 125 - 150 mm 1 Q-004-0031
Caster Polyurethane - 125 mm 2 Q-004-1106
Caster Polyurethane 125 mm Fixed 2 Q-004-1107
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Wheel Attachment Box 4 Q-005-1079
Corner Plate High Borders 4 Q-005-1331
64 mm FlexBeam™ Collet 20 Q-005-1426
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Hex Head - M10 x 25 mm 8 Q-006-1041
Locking Nut M10 65 Q-006-1042
Washer M10 22 Q-006-1043
Hex Head - M10 x 95 mm 3 Q-006-1088
Hex Head - M10 x 90 mm 12 Q-006-1132
Locking Nut M8 1 Q-006-1181
Extra low head [1,5 mm] M10x40 mm 4 Q-006-1361
Extra Low Head - M10 x 90 mm 14 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 32 Q-006-1384
Low Allen Head - M10 x 16 mm 16 Q-006-1409
Extra Low Head Allen - M10 x 25 mm 5 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502
FlexHandle low rider w floor lock plate - 700 mm 1 Q-015-0016
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Tow Hinge Module 1 Q-017-0059
Spring Loaded Tow Hinge 1 Q-017-0067
Towing Lip - 2,5 Inch 1 Q-017-1012
