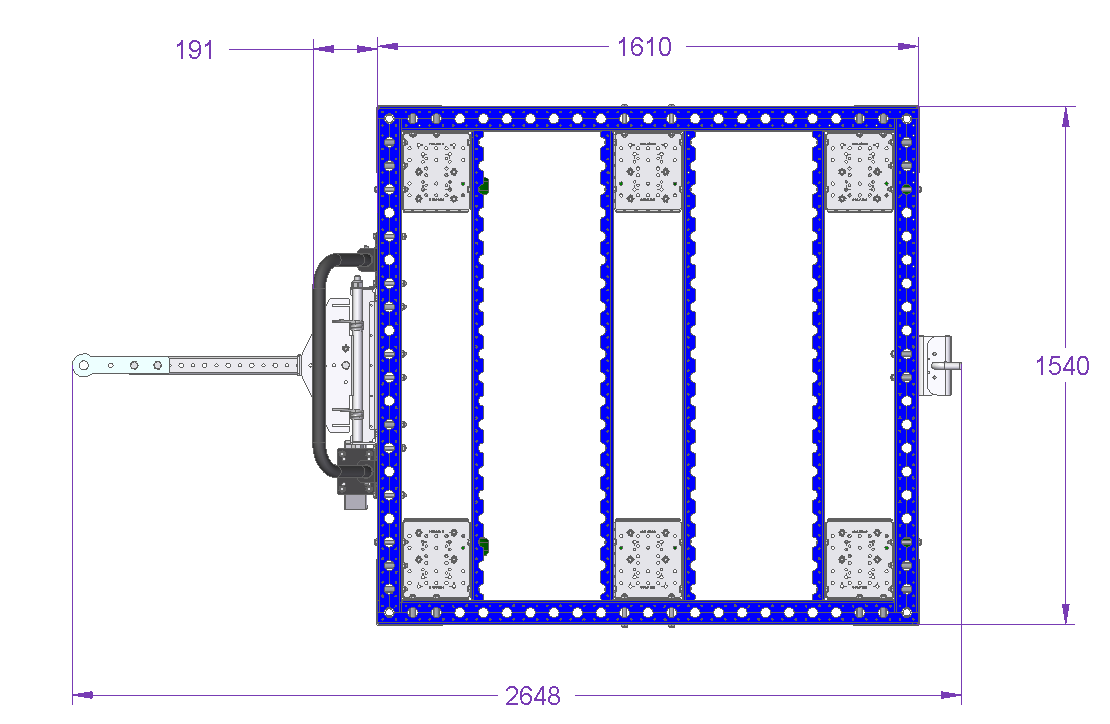

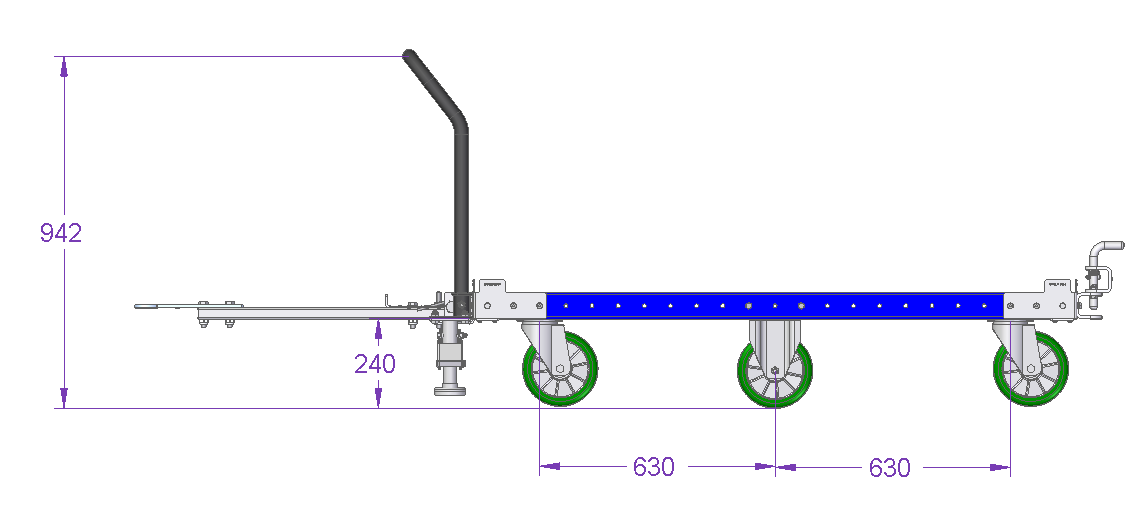

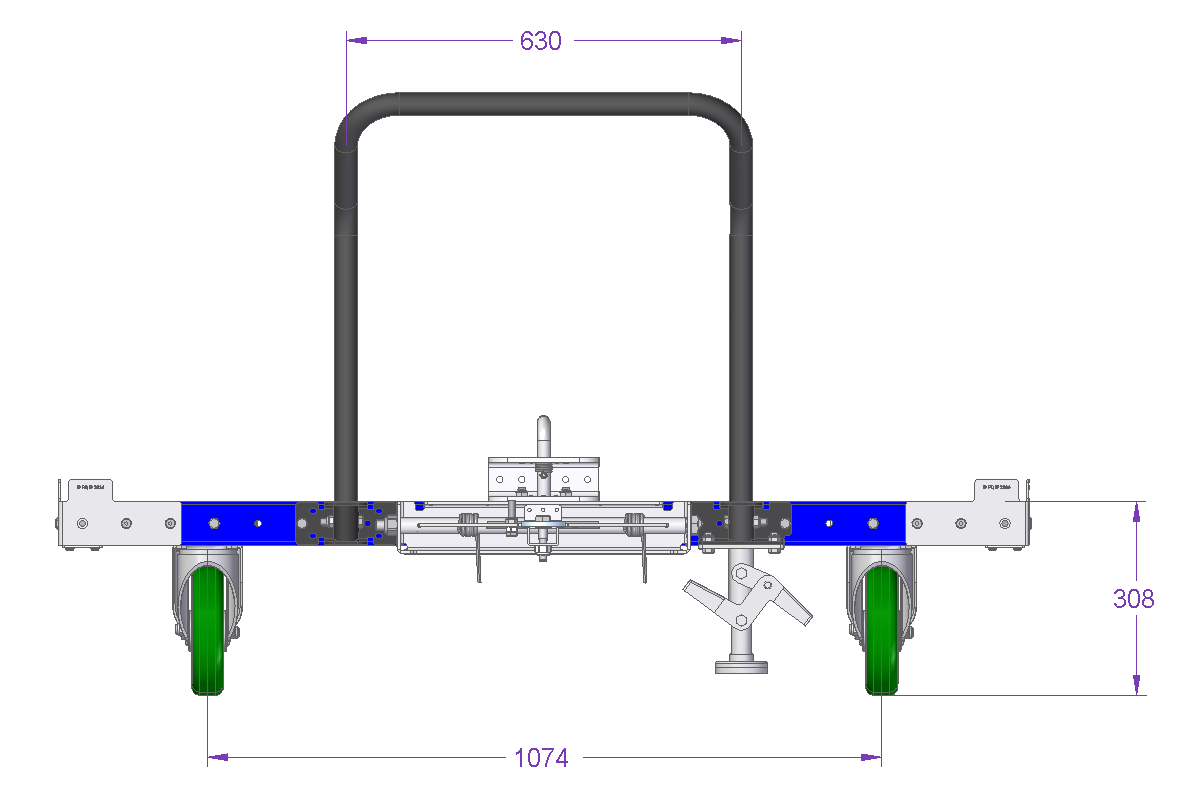

Tugger cart - 1610 x 1540 mm
Tugger cart - 1610 x 1540 mm
Tugger cart - 1610 x 1540 mm
Tugger cart - 1610 x 1540 mm
Q-007-3088

Tugger cart - 1610 x 1540 mm

Tuggable pallet/container cart equipped with a handlebar, floor brake and six polyurethane casters.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 61 inch

Length: 63 inch

Load capacity: 2205 lbs

Transportation method: Manual, Tugger

Caster size: 8 inch

Caster Type: Polyurethane

More info

Tuggable cart mainly used for the transportation of large pallets and containers of a specific size since it doesn’t have a flatbed. The cart is equipped with a handlebar, floor brake and six polyurethane casters giving the cart excellent tracking properties and silent movement when connected in a train.

Parts included
FlexBeam™ - 1470 mm 4 Q-001-1296
FlexBeam™ - 1400 mm FE 4 Q-001-1502
FlexBeam™ - 1470 mm FE 2 Q-001-1503
FlexBeam™ - 1610 mm FE 2 Q-001-1505
FlexPlate™ 4 Q-002-1001
Flexplate™ M10 12 Q-002-1162
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
Floor Brake LTL - 200 mm 1 Q-004-1359
Old part: Spring for Tow Bar 2 Q-005-1012
Towing Hole 2 Q-005-1056
Wheel Attachment Box 6 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 20 Q-005-1426
Allen Head - M6 x 30 mm 1 Q-006-1012
Hex Head - M20 x 500 mm 1 Q-006-1016
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 44 Q-006-1041
Locking Nut M10 87 Q-006-1042
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 90 mm 18 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Nut M10 1 Q-006-1195
Hex Head Fully Threaded - M10 x 50 mm 1 Q-006-1343
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 16 Q-006-1384
M20 Locking Nut 1 Q-006-1405
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 2 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
Handlebar Attachment EUR 1 Q-015-0026
Handlebar / Floor brake attachment EUR 1 Q-015-0027
Tube for Handlebar EUR 1 Q-015-0033
Handle for Tow Hole 1 Q-017-0022
EUR Modular Tow Bar VKR - LIP - 670 mm 1 Q-017-0042
Towing Lip - 28 mm 1 Q-017-1010
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
