Tugger Cart - 2030 x 1260 mm
Tugger Cart - 2030 x 1260 mm
Tugger Cart - 2030 x 1260 mm
Tugger Cart - 2030 x 1260 mm
Tugger Cart - 2030 x 1260 mm
Q-100-0991

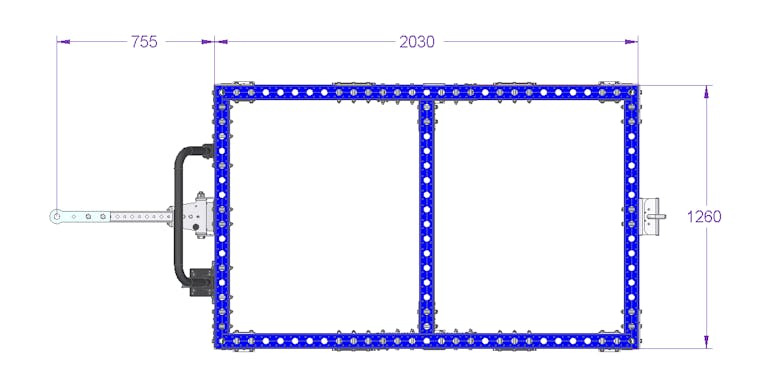

Tugger Cart - 2030 x 1260 mm

Large tugger cart designed for transporting pallets.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 50 inch

Length: 80 inch

Load capacity: 500 lbs

Transportation method: Manual, Tugger

Caster size: 5 inch

Caster Type: Polyurethane

Type of Load: Pallets and Containers

More info

This large tugger cart is designed for transporting large pallets and containers. This cart can also take two pallets at the same time. It comes with an ergonomic handlebar for better pushing by the operators. It comes also comes equipped with a drop pin and hitch tow bar for transportation in a tugger train system. If needed there are four forklift pockets that are attached if a forklift is needed to transport the cart.

Parts included
FlexBeam™ 1190 mm 4 Q-001-1300
FlexBeam™ 770 mm 4 Q-001-1306
FlexBeam™ 1120 mm FE 4 Q-001-1401
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 12 Q-002-1001
Flexplate™ M10 2 Q-002-1162
Caster Polyurathane 125 mm 80 x 60 Swivel 4 Q-004-1220
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
Floor Lock COLSON 4 x 4-1/2 1 Q-004-1369
L Bracket Joint 4 Q-005-0031
Caster to Beam Attachment - 80 x 60 mm 6 Q-005-0265
Fork Tunnel US - 80 mm 4 Q-005-0431
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
64 mm FlexBeam™ Collet 36 Q-005-1426
Pallet Guide Heavy - 5 mm 4 Q-005-1645
Wheel Attachment - 80 x 60 mm 2 Q-005-1722
Allen Head - M6 x 30 mm 1 Q-006-1012
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Hex Head - M10 x 25 mm 4 Q-006-1041
Locking Nut M10 69 Q-006-1042
Washer M10 14 Q-006-1043
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 90 mm 48 Q-006-1132
Hex Head - M10 x 30 mm 6 Q-006-1161
Locking Nut M8 25 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
Countersunk - M8 x 20 8 Q-006-1282
Extra Low Head - M10 x 90 mm 4 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 64 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 2 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 5 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip - 28 mm 1 Q-017-1010
