Tugger Cart - 47 x 50 inch without steel deck
Tugger Cart - 47 x 50 inch without steel deck
Tugger Cart - 47 x 50 inch without steel deck
Tugger Cart - 47 x 50 inch without steel deck
Q-100-1164

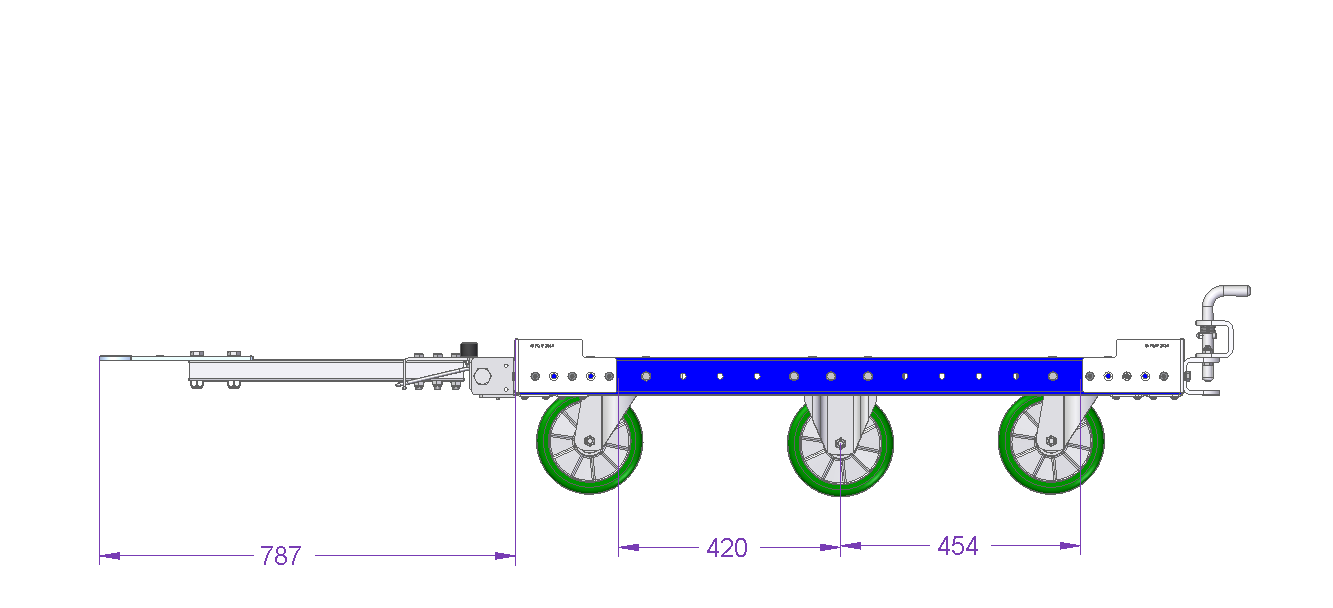

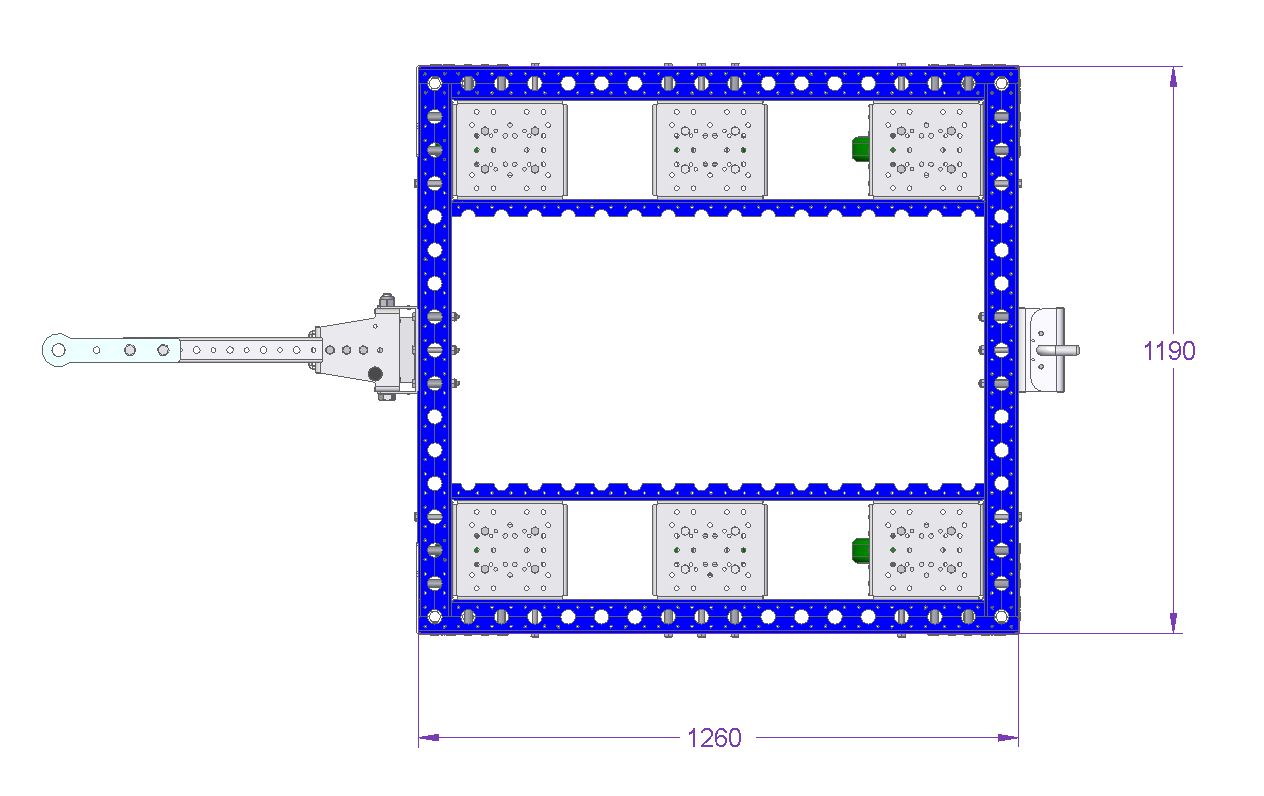

Tugger Cart - 47 x 50 inch without steel deck

Tuggable pallet cart equipped with a floor brake and six polyurethane casters.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 47 inch

Length: 50 inch

Load capacity: 2205 lbs

Transportation method: Manual, Tugger

Caster size: 8 inch

Caster Type: Polyurethane

Type of Load: Pallets and Containers

More info

Tuggable pallet/container cart, since it doesn’t have a flatbed it can only be used for one container size. The cart is equipped with a floor brake and six high quality polyurethane casters which gives the cart excellent tracking properties and silent movement when connected in a train

Parts included
FlexBeam™ 1120 mm 4 Q-001-1301
FlexBeam™ 1120 mm FE 4 Q-001-1401
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 12 Q-002-1162
Caster distance plate - 5 mm 28 Q-004-0038
Caster Polyurethane - 200 mm Swivel 4 Q-004-1211
Caster Polyurethan 200 mm Fixed IP2 2 Q-004-1212
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Wheel Attachment Box 6 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 24 Q-005-1426
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Hex Head - M10 x 25 mm 12 Q-006-1041
Locking Nut M10 81 Q-006-1042
Washer M10 2 Q-006-1043
Hex Head - M10 x 90 mm 20 Q-006-1132
Hex Head - M10 x 30 mm 18 Q-006-1161
Locking Nut M8 1 Q-006-1181
Hex Head - M10 x 40 8 Q-006-1208
Extra Low Head - M10 x 90 mm 16 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 32 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Tow Hinge Module 1 Q-017-0059
Spring Loaded Tow Hinge 1 Q-017-0067
Towing Lip - 28 mm 1 Q-017-1010
