Tugger Cart 50 x 50 inch
Tugger Cart 50 x 50 inch
Tugger Cart 50 x 50 inch
Tugger Cart 50 x 50 inch
Tugger Cart 50 x 50 inch
Q-100-0065

Tugger Cart 50 x 50 inch

Simply designed tugger cart without flat deck for transporting pallets and containers.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 50 inch

Length: 50 inch

Load capacity: 1001 lbs

Type of tow bar: Tongue and Hitch

Transportation method: Manual, Tugger

Caster size: 5 inch

Caster Type: Gray

More info

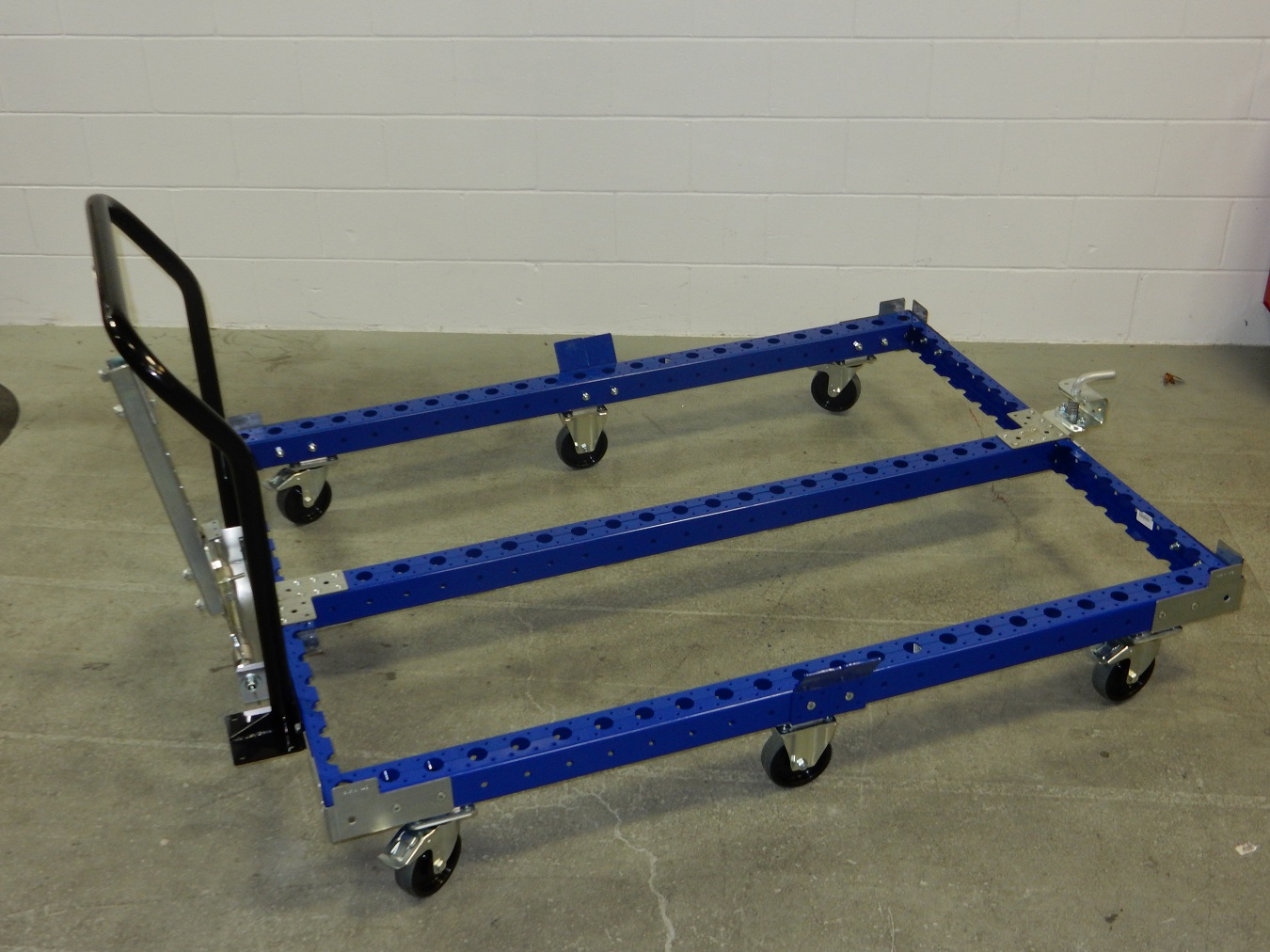

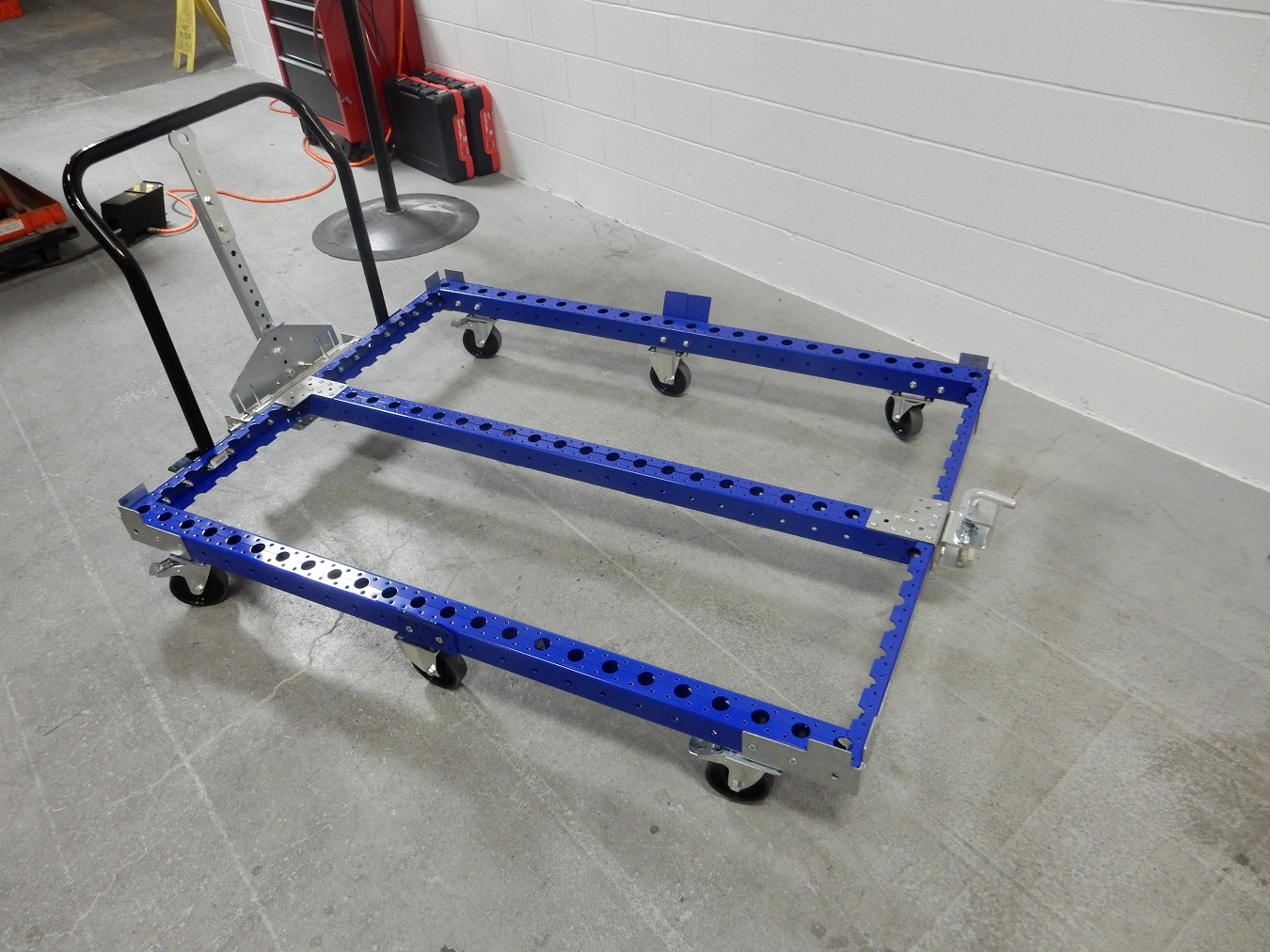

This tugger cart doesn’t have a flat deck and is used for transporting containers. This cart also comes with an attached ergonomic handlebar for easier manual transportation. It also comes with a drop pin and hitch tow bar for use with a tugger train system. This cart comes with six high quality polyamide casters.

Parts included
FlexBeam™ 1190 mm 6 Q-001-1300
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 18 Q-002-1001
Flexplate™ M10 2 Q-002-1162
125 mm Swivel Caster with Brake 4 Q-004-1364
Fixed Caster - 125 mm 2 Q-004-1365
Towing Hole 2 Q-005-1056
Spring for Tow Bar 2 Q-005-1070
Pallet Guide Corner Plate 4 Q-005-1096
Caster Distance Collet - 18 mm 4 Q-005-1396
64 mm FlexBeam™ Collet 8 Q-005-1426
Heavy Duty Joint M10 2 Q-005-1580
Wheel Attachment - 80 x 60 mm 6 Q-005-1722
Washer M20 2 Q-006-0016
Allen Head - M6 x 30 mm 1 Q-006-1012
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 10 Q-006-1041
Locking Nut M10 33 Q-006-1042
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 24 Q-006-1181
Nut M10 1 Q-006-1195
M8 x 16 mm Countersunk 24 Q-006-1214
Hex Head Fully Threaded - M10 x 50 mm 5 Q-006-1343
Extra Low Head - M10 x 90 mm 8 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 56 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 24 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410
Compression Spring for US Tow Hitch 1 Q-012-0007
Handle With Bent Top + Floor Brake (North America) 1 Q-015-1060
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Cotter Pin - 3,2 x 32 mm 2 Q-017-0023
Towing Lip - 28 mm 1 Q-017-1010
Tow Bar Lock Tube - 498 mm 1 Q-017-1061
Tow Attachment to Beam 1 Q-017-1080
Tow Hinge 1 Q-017-1083
