Tugger Cart - 66 x 52 inch
Tugger Cart - 66 x 52 inch
Tugger Cart - 66 x 52 inch
Tugger Cart - 66 x 52 inch
Tugger Cart - 66 x 52 inch
Tugger Cart - 66 x 52 inch
Q-100-0674

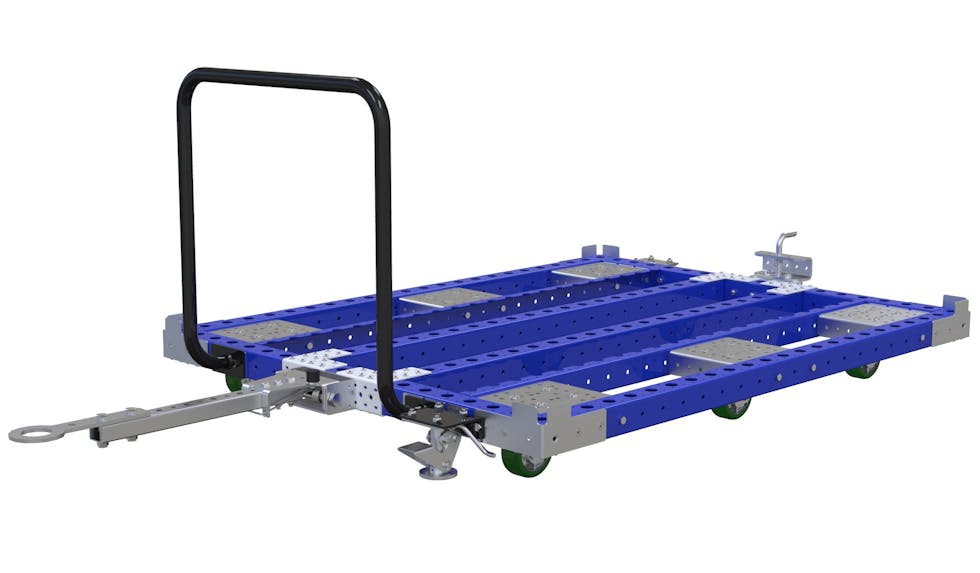

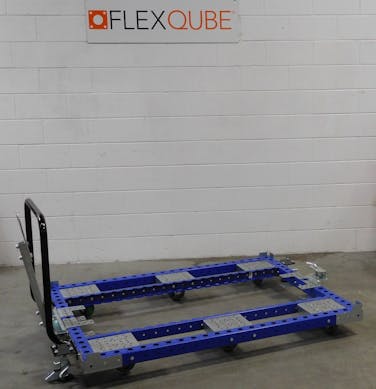

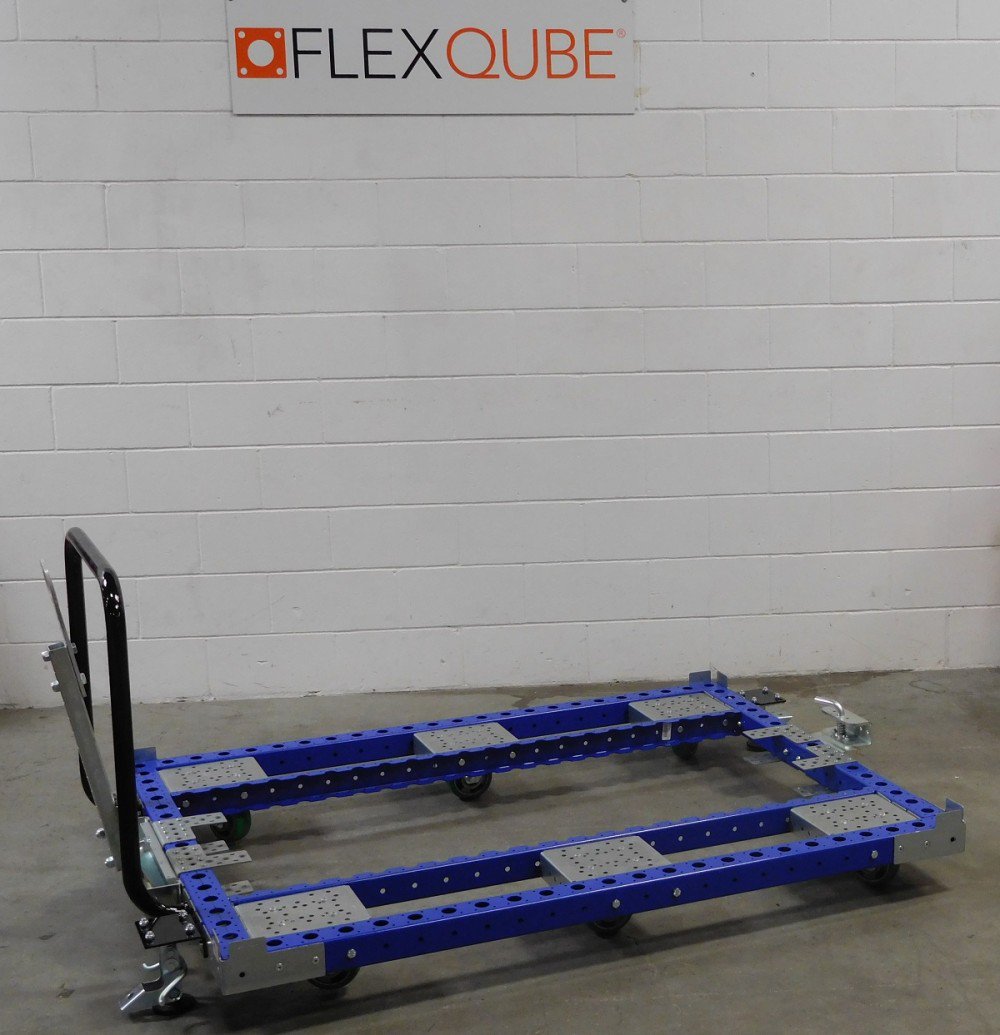

Tugger Cart - 66 x 52 inch

Standard tugger cart for transporting pallets and containers.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

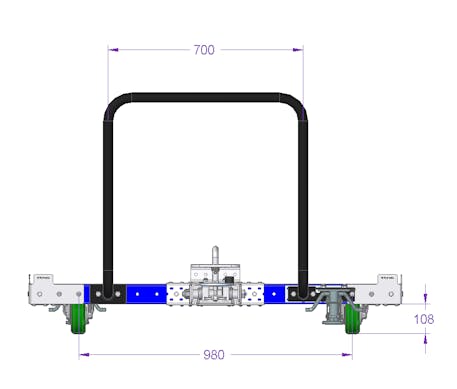

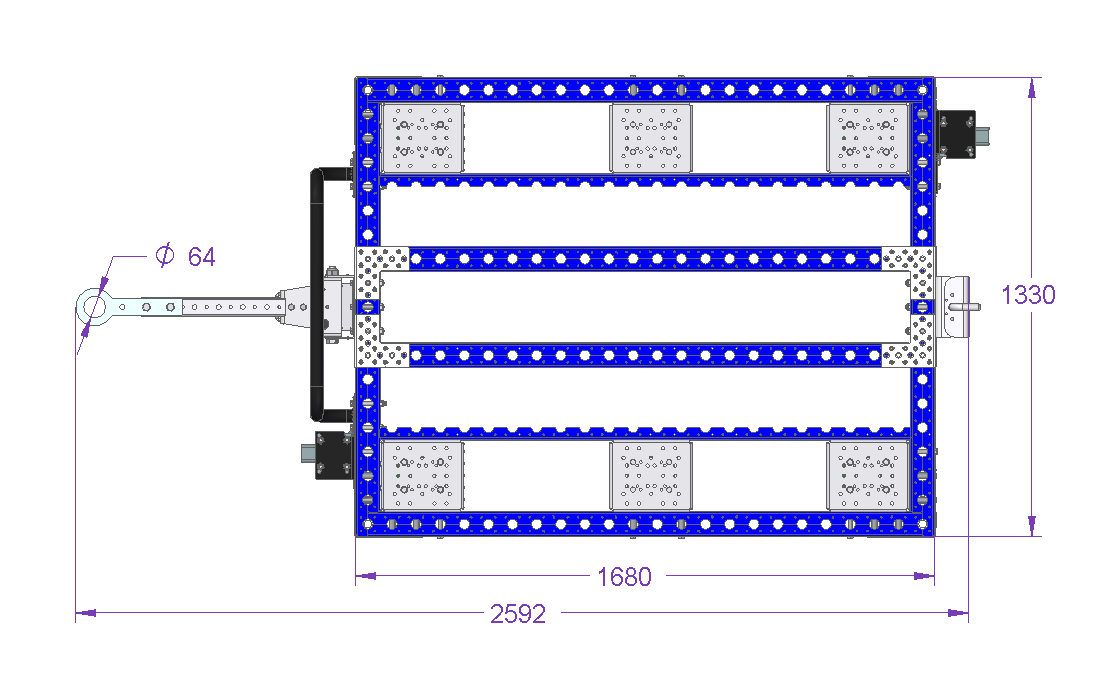

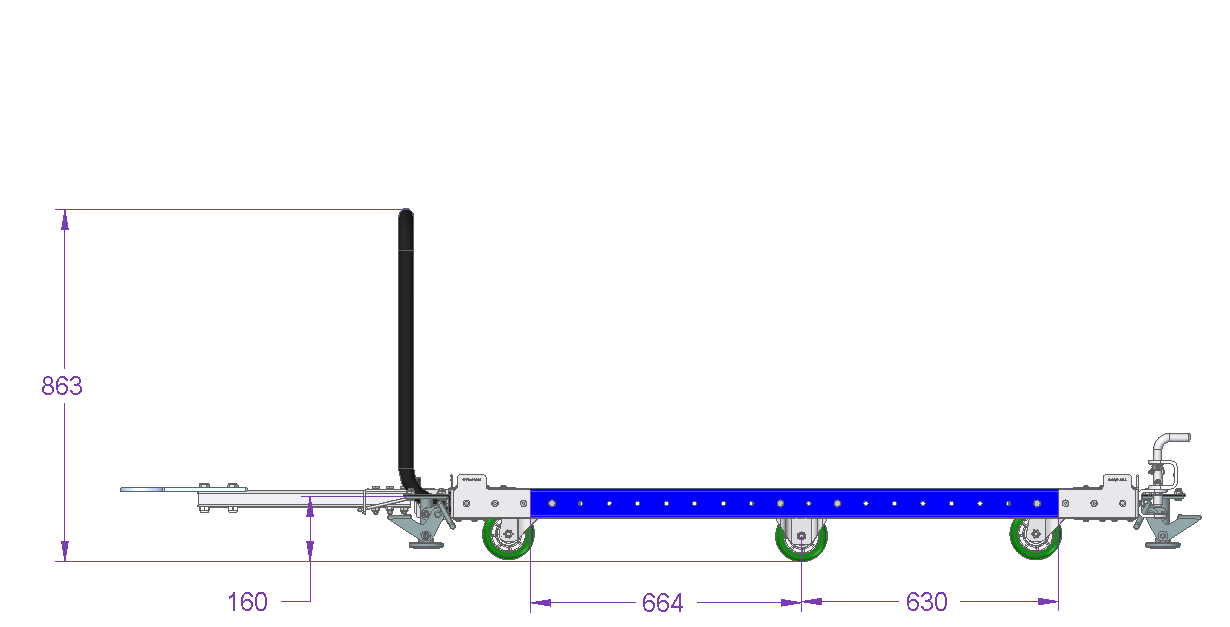

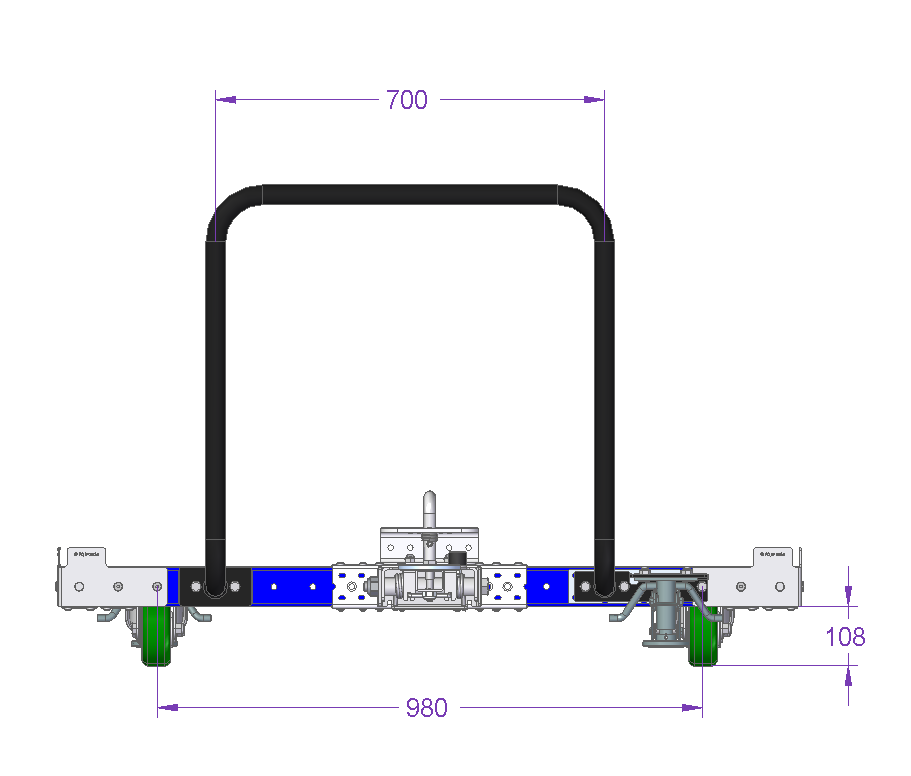

Length: 66 inch

Width: 52 inch

Load capacity: 2000 lbs

Transportation method: Manual, Tugger

Caster size: 5 inch

Caster Type: Polyurethane

More info

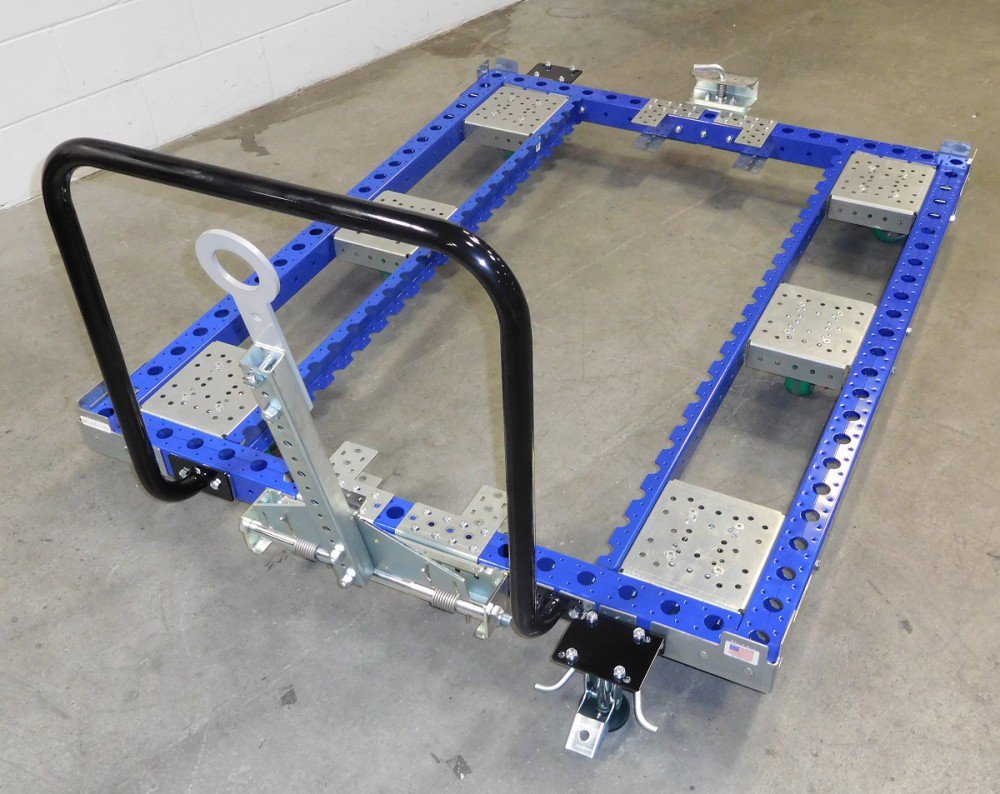

This cart is ideal for transportation of pallets and containers. It comes with a drop pin and hitch tow bar for transportation via a tugger train system. This tugger cart has six high quality polyurethane casters, two of which are fixed for improved tracking with a train.

Parts included
FlexBeam™ - 1610 mm 4 Q-001-1294
FlexBeam™ 1190 mm FE 2 Q-001-1400
FlexBeam™ - 1330 mm FE 2 Q-001-1501
FlexBeam™ 1540 mm FE 6 Q-001-1504
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 20 Q-002-1162
Floor lock COLSON - 4 x 4-1/2 - 125 - 150 mm 2 Q-004-0031
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 125 mm 4 Q-004-1106
Caster Polyurethane 125 mm Fixed 2 Q-004-1107
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
Wheel Attachment Box 6 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 18 Q-005-1426
Heavy Duty Joint M10 4 Q-005-1580
Allen Head - M6 x 30 mm 1 Q-006-1012
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Hex Head - M10 x 25 mm 12 Q-006-1041
Locking Nut M10 91 Q-006-1042
Washer M10 19 Q-006-1043
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 95 mm 12 Q-006-1088
Hex Head - M10 x 90 mm 13 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 1 Q-006-1181
Extra Low Head - M10 x 90 mm 13 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 128 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 36 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
FlexHandle low rider w floor lock plate - 700 mm 1 Q-015-0016
Low Rider Floor Brake Plate 1 Q-015-0019
US Modular Tow Bar VKR - LIP - 520 mm 1 Q-017-0014
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip - 2,5 Inch 1 Q-017-1012
