Tugger Cart - 700 x 700 mm
Tugger Cart - 700 x 700 mm
Tugger Cart - 700 x 700 mm
Tugger Cart - 700 x 700 mm
Q-100-0992

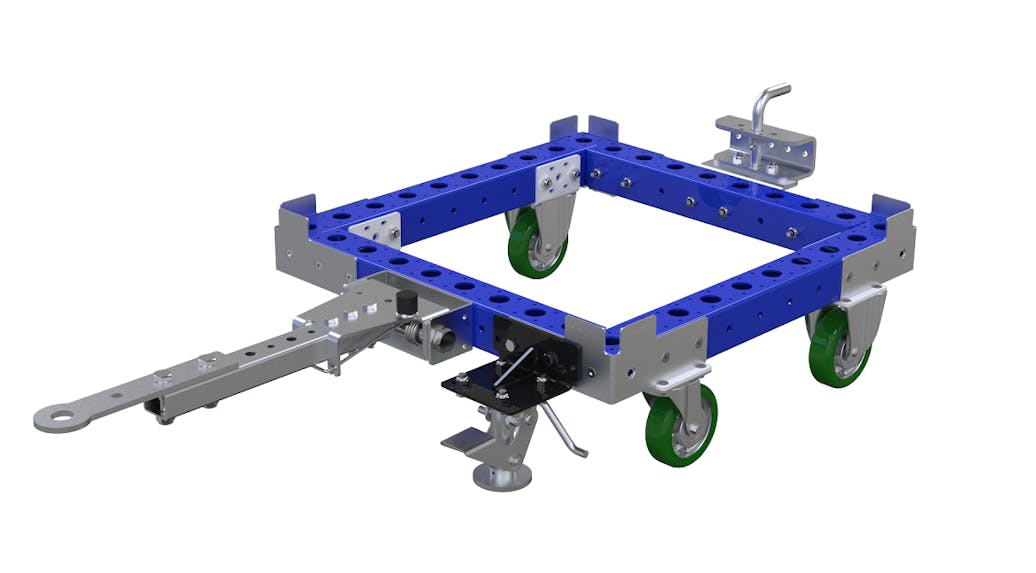

Tugger Cart - 700 x 700 mm

Small and simple tugger cart designed for transporting boxes.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

Width: 28 inch

Length: 28 inch

Load capacity: 500 lbs

Transportation method: Manual, Tugger

Caster size: 5 inch

Caster Type: Polyurethane

Type of Load: Bins, Boxes

More info

This small tugger cart comes without a top deck and is designed for transporting small bins and boxes. This cart can have a top deck added to the structure if needed. This cart comes with an attached drop pin and hitch tow bar for use in a tugger train system.

Parts included
FlexBeam™ 630 mm 4 Q-001-1308
FlexBeam™ 700 mm FE 2 Q-001-1407
FlexBeam™ 560 mm FE 2 Q-001-1409
FlexPlate™ 8 Q-002-1001
Caster Polyurathane 125 mm 80 x 60 Swivel 2 Q-004-1220
Caster Polyure. 125 mm 80 x 60 Fixed 2 Q-004-1221
Floor Lock COLSON 4 x 4-1/2 1 Q-004-1369
Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
Pallet Guide Corner Plate 4 Q-005-1096
Floor Brake Plate 1 Q-005-1387
64 mm FlexBeam™ Collet 20 Q-005-1426
Allen Head - M6 x 30 mm 1 Q-006-1012
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 2 Q-006-1036
Locking Nut M14 2 Q-006-1039
Hex Head - M10 x 25 mm 4 Q-006-1041
Locking Nut M10 33 Q-006-1042
Washer M10 2 Q-006-1043
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 90 mm 6 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 17 Q-006-1181
M8 x 16 mm Countersunk 16 Q-006-1214
Extra Low Head - M10 x 90 mm 14 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 32 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 3 Q-006-1502
Compression Spring for US Tow Hitch 1 Q-012-0007
US Modular Tow Bar VKR - Lip - 380 mm 1 Q-017-0015
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip - 28 mm 1 Q-017-1010
