Tugger Cart - 840 x 840 mm
Tugger Cart - 840 x 840 mm
Tugger Cart - 840 x 840 mm
Tugger Cart - 840 x 840 mm
Q-100-0700

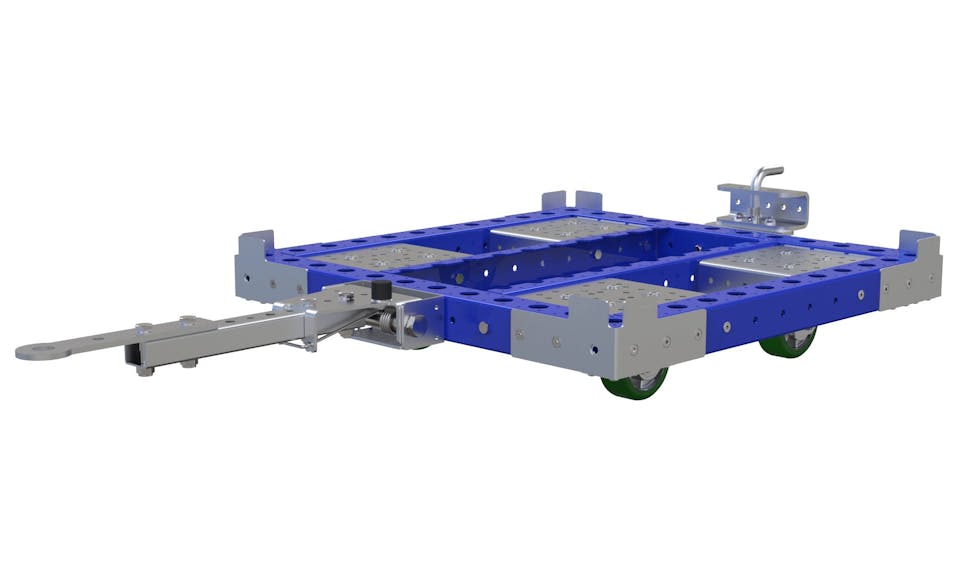

Tugger Cart - 840 x 840 mm

Standard low rider cart designed for smaller containers and bins.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Type of tow bar: Tongue and Hitch

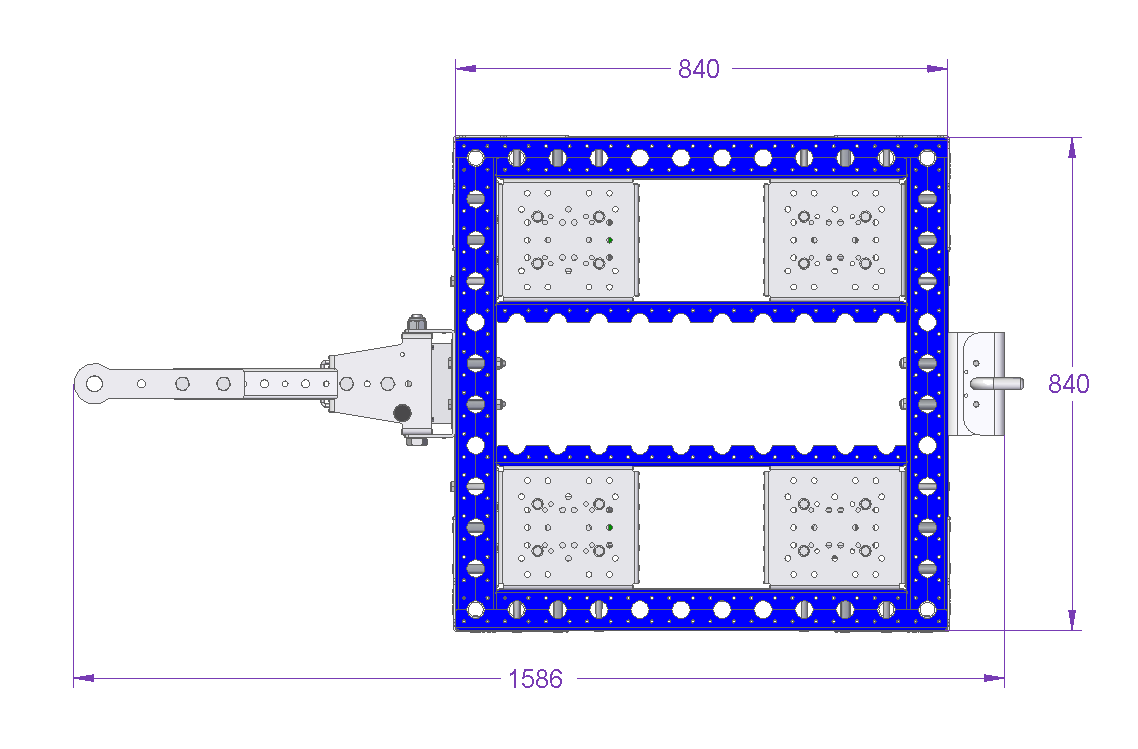

Width: 33 inch

Length: 33 inch

Load capacity: 1499 lbs

Transportation method: Tugger

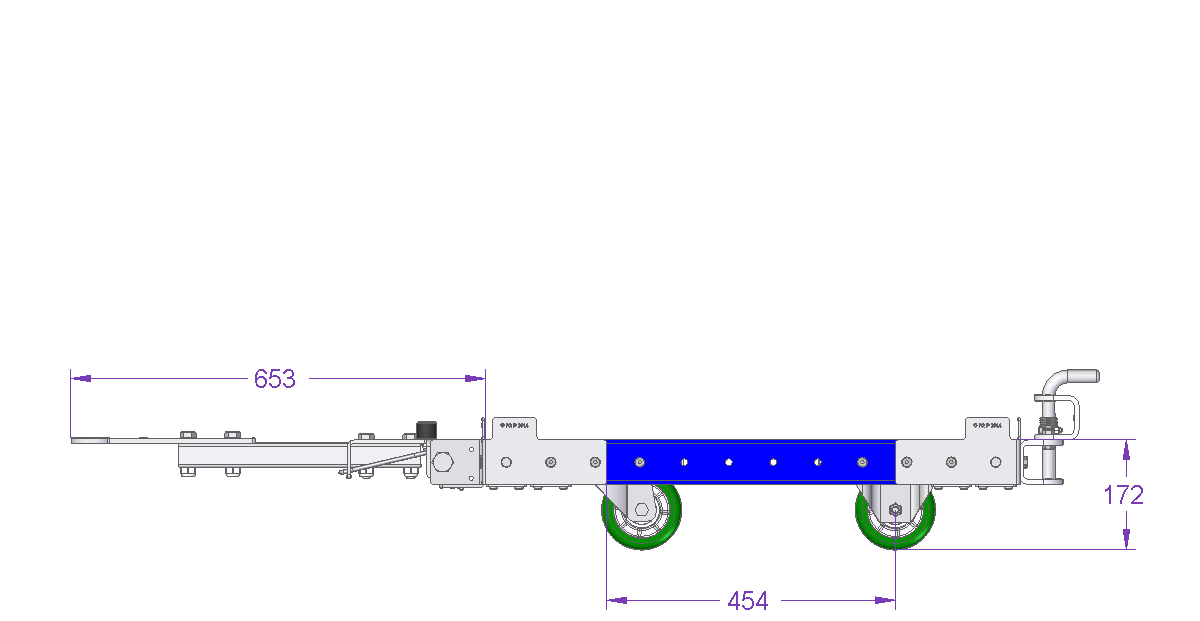

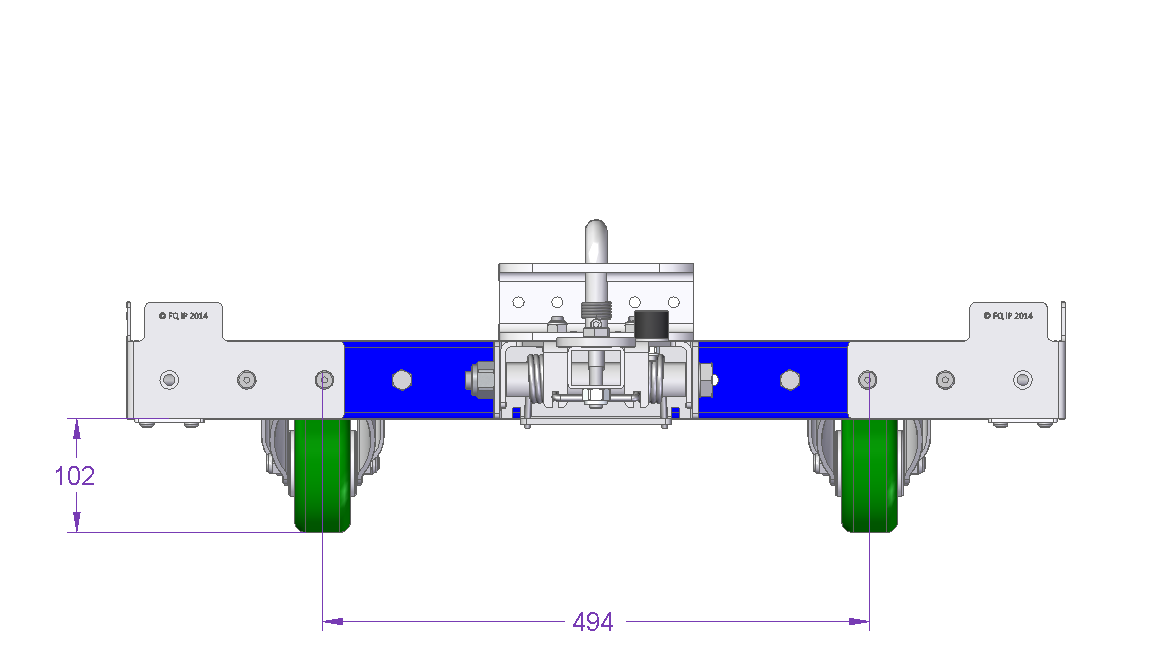

Caster size: 5 inch

Caster Type: Polyurethane

More info

This low rider tugger cart is for the transportation of pallets/totes/bins or boxes. The cart is equipped with four high quality polyurethane casters, two fixed and two swivel for excellent tracking properties as well as silent transportation. The cart is also equipped with a tongue and hitch tow bar and a spring loaded towing hole.

Parts included
FlexBeam™ 770 mm 4 Q-001-1306
FlexBeam™ 840 mm FE 2 Q-001-1405
FlexBeam™ 700 mm FE 4 Q-001-1407
FlexPlate™ 8 Q-002-1001
Flexplate™ M10 12 Q-002-1162
Caster Polyurethane - 125 mm 2 Q-004-1106
Caster Polyurethane 125 mm Fixed 2 Q-004-1107
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Towing Hole 2 Q-005-1056
Wheel Attachment Box 4 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 16 Q-005-1426
Allen Head - M6 x 30 mm 1 Q-006-1012
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Hex Head - M14 x 60 mm 4 Q-006-1036
Locking Nut M14 4 Q-006-1039
Hex Head - M10 x 25 mm 8 Q-006-1041
Locking Nut M10 58 Q-006-1042
Washer M10 16 Q-006-1043
Locking Nut M6 1 Q-006-1050
Hex Head - M10 x 95 mm 2 Q-006-1088
Hex Head - M10 x 90 mm 4 Q-006-1132
Hex Head - M10 x 30 mm 2 Q-006-1161
Locking Nut M8 1 Q-006-1181
Extra Low Head - M10 x 90 mm 22 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 32 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 20 Q-006-1410
Compression Spring for US Tow Hitch 1 Q-012-0007
US Modular Tow Bar VKR - Lip - 380 mm 1 Q-017-0015
Handle for Tow Hole 1 Q-017-0022
Tow Hinge Module 1 Q-017-0059
Towing Lip - 28 mm 1 Q-017-1010
