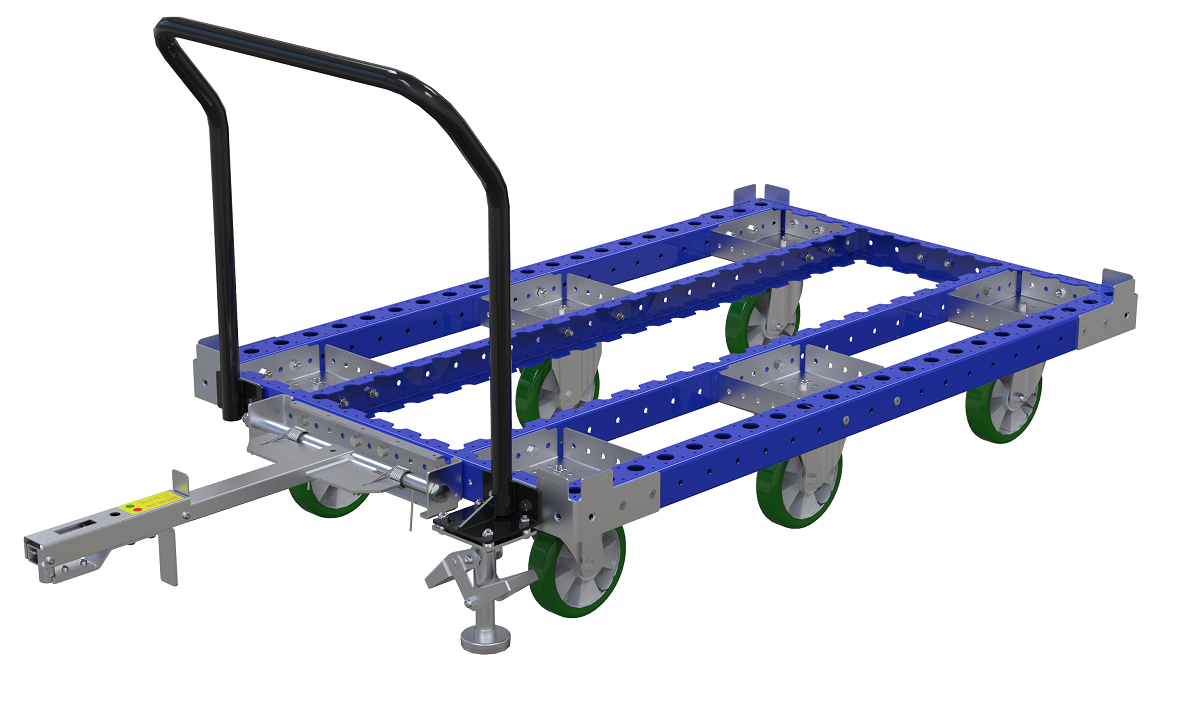

Tugger Cart 980 x 1540 mm
Tugger Cart 980 x 1540 mm
Q-100-0058

Tugger Cart 980 x 1540 mm

Simply designed tugger cart without flat deck for transporting pallets and containers.

Technical specifications

Category: Standard

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Length: 61 inch

Load capacity: 1102 lbs

Transportation method: Manual, Tugger

Width: 39 inch

Caster Type: Polyurethane

More info

This tugger cart doesn’t have a flat deck and is used for transporting containers. This cart also comes with an attached ergonomic handlebar for easier manual transportation. There is also a foot release tow bar attached for transportation via a tugger train system. The purpose of the foot release is to improve ergonomics and reduce bending/flexing by the operators.

Parts included
FlexBeam™ - 1470 mm 6 Q-001-1296
FlexBeam™ 980 mm FE 2 Q-001-1403
Wheel Attachment - 105 x 77,5 mm 2 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
Floor Brake LTL - 200 mm 1 Q-004-1359
Collet - 31 mm 2 Q-005-1008
Old part: Spring for Tow Bar 2 Q-005-1012
Spring Cover Plate 1 Q-005-1025
Wheel Attachment Box 6 Q-005-1079
Pallet Guide Corner Plate 4 Q-005-1096
64 mm FlexBeam™ Collet 12 Q-005-1426
Sticker Green/Red 1 Q-005-1659
Hex Head - M20 x 500 mm 1 Q-006-1016
Hex Head - M10 x 25 mm 46 Q-006-1041
Locking Nut M10 69 Q-006-1042
Washer M10 12 Q-006-1043
Countersunk - M10 x 70 mm 1 Q-006-1112
Hex Head - M10 x 30 mm 4 Q-006-1161
Hex Head Fully Threaded - M10 x 50 mm 2 Q-006-1343
Extra Low Head - M10 x 90 mm 12 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 6 Q-006-1384
M20 Locking Nut 1 Q-006-1405
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
Spring 1,5 x 15yd x 70 1 Q-012-1141
Handle With Bent Top + Floor Brake (North America) 1 Q-015-1060
Countersunk Towing Lock Pin - 25 mm 1 Q-017-0010
Towing Equipment - Locking Lip 1 Q-017-1015
Locking lip attachment 1 Q-017-1043
Tow Hole 28 mm - Symmetric 1 Q-017-1066
Tow Attachment to Beam 1 Q-017-1080
