Tugger Train Cart - 50 x 50 inch
Tugger Train Cart - 50 x 50 inch
Tugger Train Cart - 50 x 50 inch
Tugger Train Cart - 50 x 50 inch
Q-100-0228

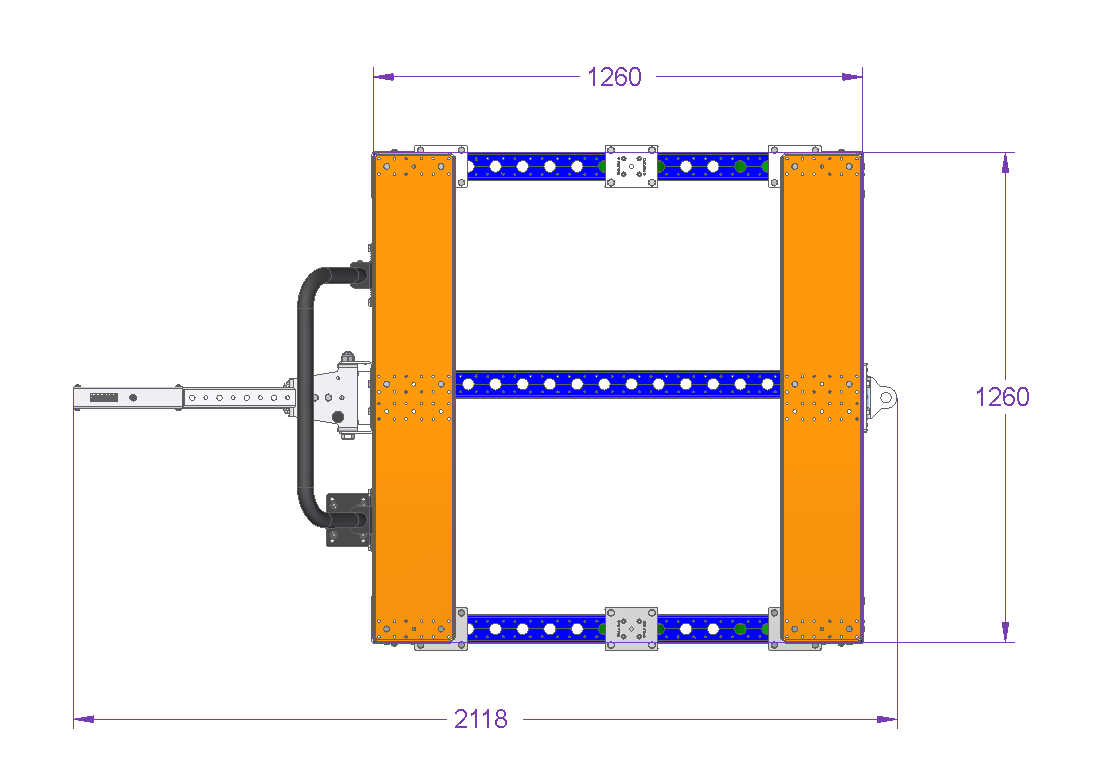

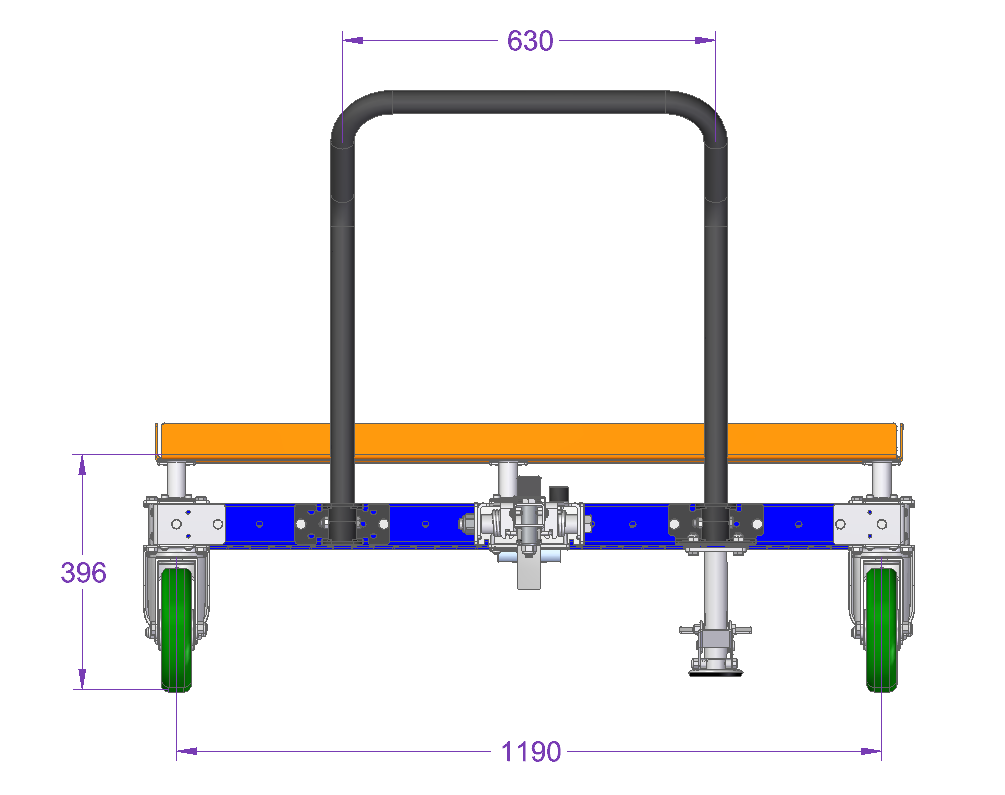

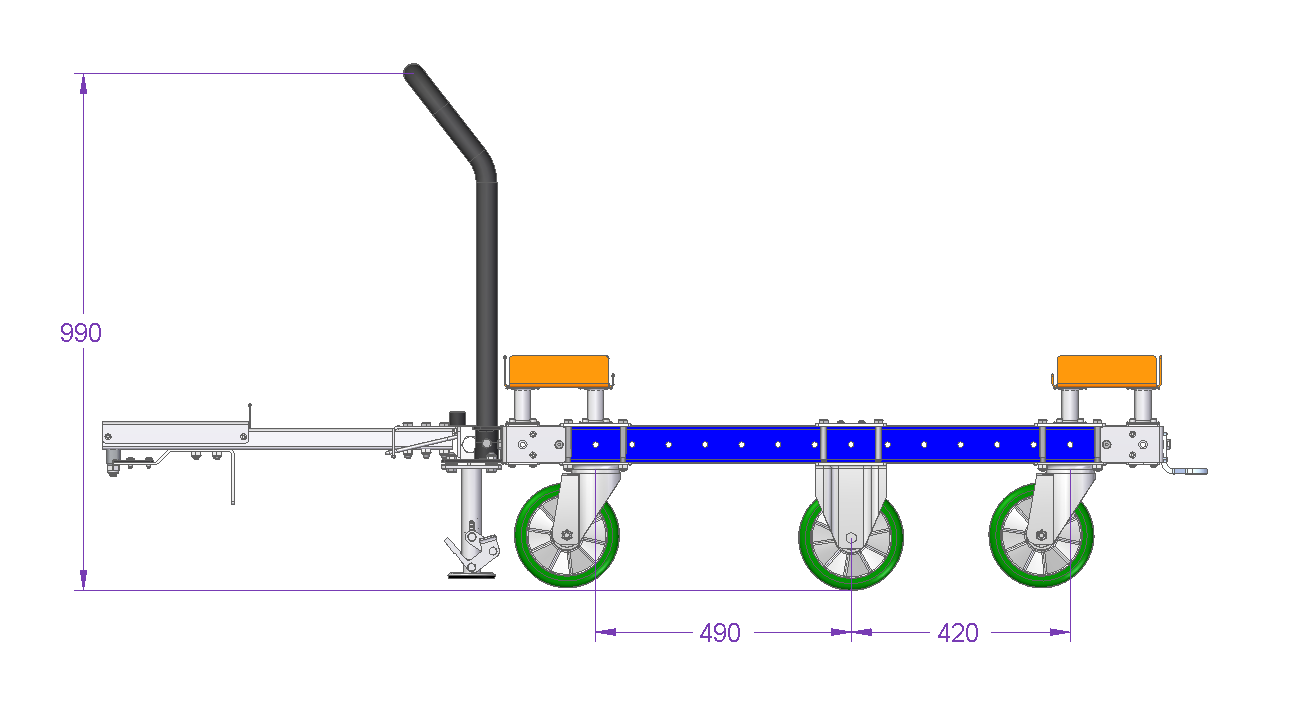

Tugger Train Cart - 50 x 50 inch

Custom designed tugger cart with a top structure for improved ergonomics.

Technical specifications

Category: Standard

Industry: Automotive, Defense Equipment, Distribution, Industrial Machinery, Tier One Suppliers, Wind & Energy

Width: 50 inch

Length: 50 inch

Load capacity: 595 lbs

Transportation method: Manual, Tugger

Caster size: 8 inch

Caster Type: Polyurethane

More info

This specific trolley is a tugger cart for carrying pallets or containers in an industrial environment. It is equipped with a tow bar and is meant to tug several of these in a train. This particular tow bar is a foot release tow bar but can be modified with either wire-release tow bar or a drop pin tow bar. Other feathers include a removable handle bar and a rise to allow for better ergonomic access to containers as well as easier loading and unloading with a fork lift.

Parts included
FlexTube™ 70 mm - Locking Nut 12 Q-000-1101
FlexBeam™ 1190 mm 6 Q-001-1300
FlexBeam™ 1260 mm FE 2 Q-001-1500
FlexPlate™ 22 Q-002-1001
Stiffener - Outside 4 Q-002-1050
Wheel Attachment - 105 x 77,5 mm 8 Q-004-1065
Caster Polyurethane - 200 mm 4 Q-004-1100
Caster Polyurethane 200 mm Fixed 2 Q-004-1101
US Floor Brake - 200 mm 1 Q-004-1613
M8 Damper - GN352-30-25-M8-S-55 1 Q-005-0648
Spring Cover Plate 1 Q-005-1025
Hex Head M14 x 90 mm 1 Q-005-1406
64 mm FlexBeam™ Collet 4 Q-005-1426
Allen Head - M6 x 30 mm 48 Q-006-1012
Washer 10,5 x 30 x 2,5 1 Q-006-1030
Locking Nut M14 1 Q-006-1039
Hex Head - M10 x 25 mm 8 Q-006-1041
Locking Nut M10 55 Q-006-1042
Washer M10 14 Q-006-1043
Hex Head - M10 x 95 mm 8 Q-006-1088
Hex Head - M10 x 90 mm 16 Q-006-1132
Hex Head - M10 x 30 mm 4 Q-006-1161
Locking Nut M8 1 Q-006-1181
Extra low head [1,5 mm] M10x40 mm 12 Q-006-1361
Extra Low Head - M10 x 90 mm 4 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 46 Q-006-1384
Extra Low Head Allen - M10 x 25 mm 8 Q-006-1410
Hex Head Fully Threaded - M10 x 60 mm 7 Q-006-1502
Spring 1,5 x 15yd x 70 1 Q-012-1141
Handlebar / Floor Brake Attachment US 1 Q-015-0029
Handlebar Attachment US 1 Q-015-0031
Tube for Handlebar US 1 Q-015-0032
US Modular Tow Bar VKR - Foot Release - 670 mm 1 Q-017-0012
Foot Release Locking Lip 1 Q-017-0024
Tow Hinge Module 1 Q-017-0059
Locking lip attachment 1 Q-017-1043
Tow Hole 28 mm - Symmetric 1 Q-017-1066
Towing Lock Pin US 1 Q-017-1105
39 mm Sleeve for M10 US 2 Q-017-1106
