Window Cart 1890 x 1120 mm

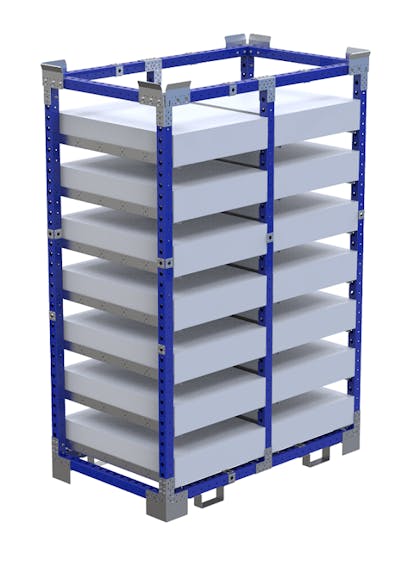

Stackable rack used to store and transport windows or similar parts. The rack has fourteen slots and a pair of fork pockets.

Technical specifications

Category: Kitting Carts

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

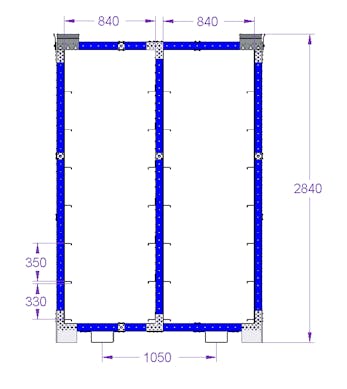

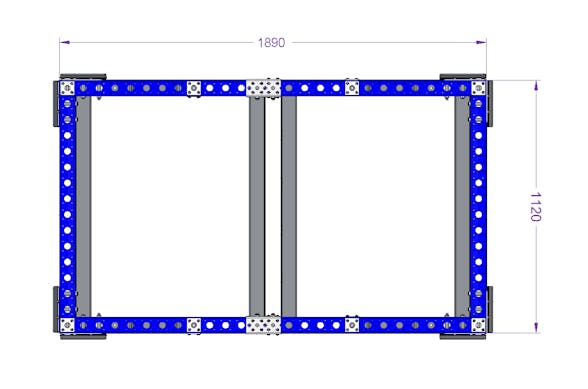

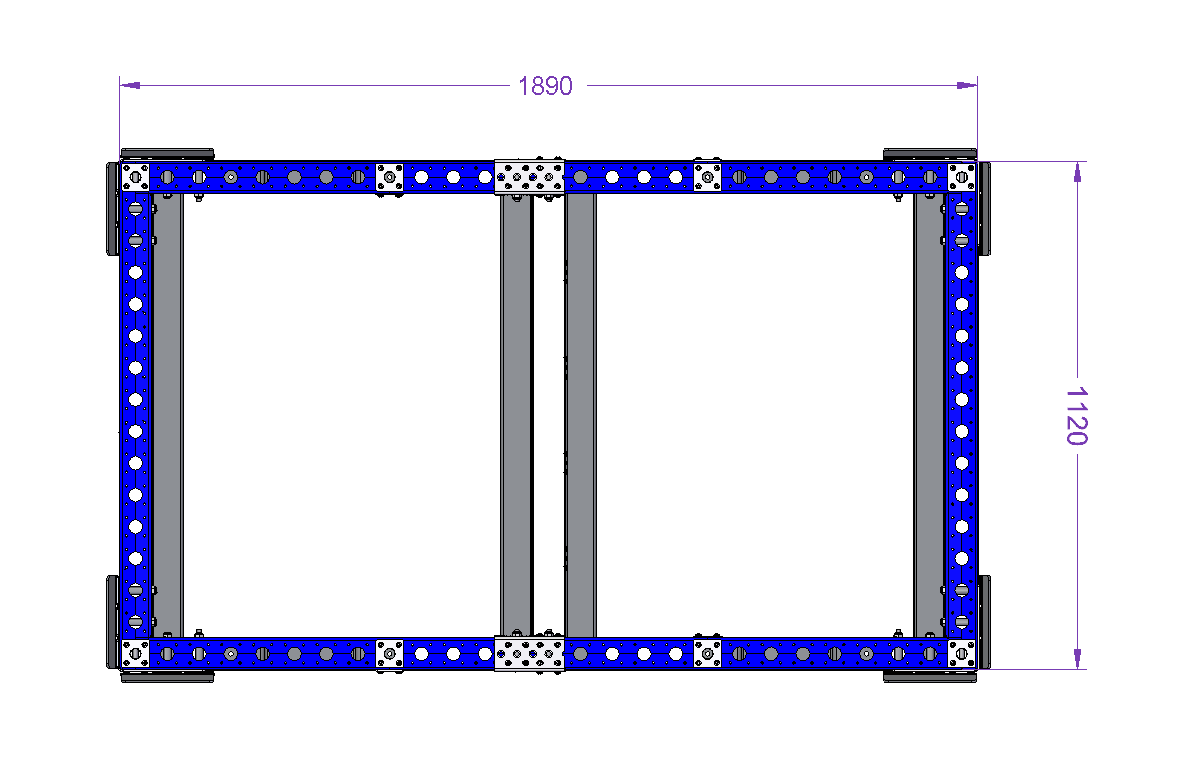

Length: 74 inch

Load capacity: 165 lbs

Width: 44 inch

Transportation method: Manual

More info

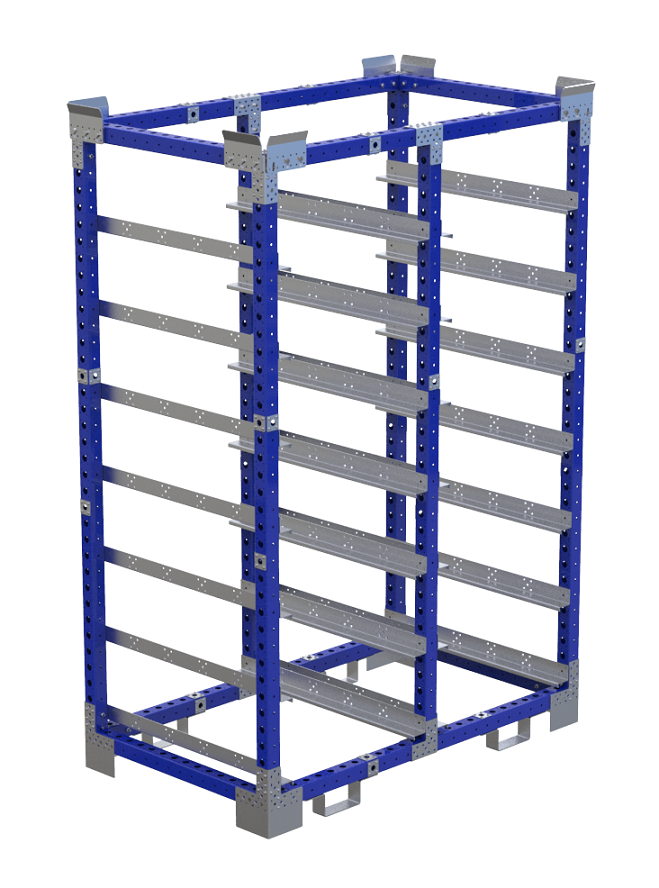

This rack was designed to store and transport windows but can also be used for similar parts like boxes and lighter pallets. L-Shaped profiles are bolted to the frame on both sides on which the part then rests on. The rack has fourteen slots, fork pockets and guides allowing you to stack two or more racks on each other

Parts included
FlexBeam™ - 1540 mm 12 Q-001-1295
FlexBeam™ - 1260 mm 8 Q-001-1299
FlexBeam™ 980 mm 12 Q-001-1303
FlexBeam™ 560 mm 8 Q-001-1309
FlexBeam™ 1120 mm FE 4 Q-001-1401
FlexBeam™ 980 mm FE 4 Q-001-1403
FlexPlate™ 48 Q-002-1001
Flexplate™ M10 40 Q-002-1162
Beam to Beam - Corner Plate Foot 4 Q-005-0130
Angled plate - 1120 mm 28 Q-005-0280
Beam to Beam Corner Plate 4 Q-005-1356
Guide Plate - 204 mm 8 Q-005-1422
64 mm FlexBeam™ Collet 32 Q-005-1426
Heavy Duty Joint M10 4 Q-005-1580
Fork Guide - 210 x 100 mm 4 Q-005-1923
Locking Nut M10 60 Q-006-1042
Hex Head - M10 x 95 mm 16 Q-006-1088
Hex Head - M10 x 30 mm 4 Q-006-1161
Extra Low Head - M10 x 90 mm 36 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 344 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 224 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
