Q-100-0436

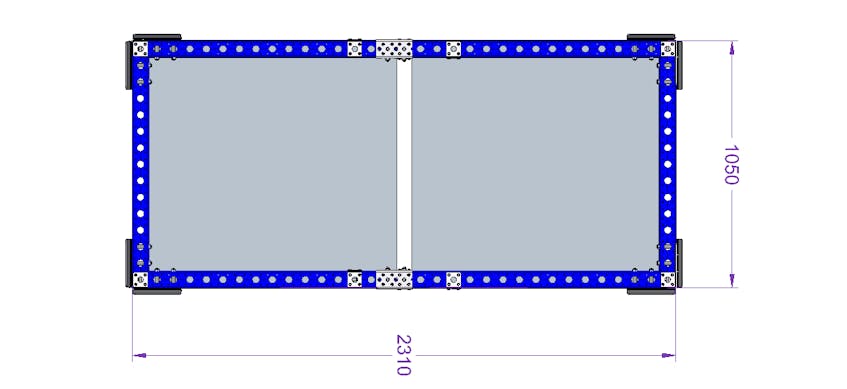

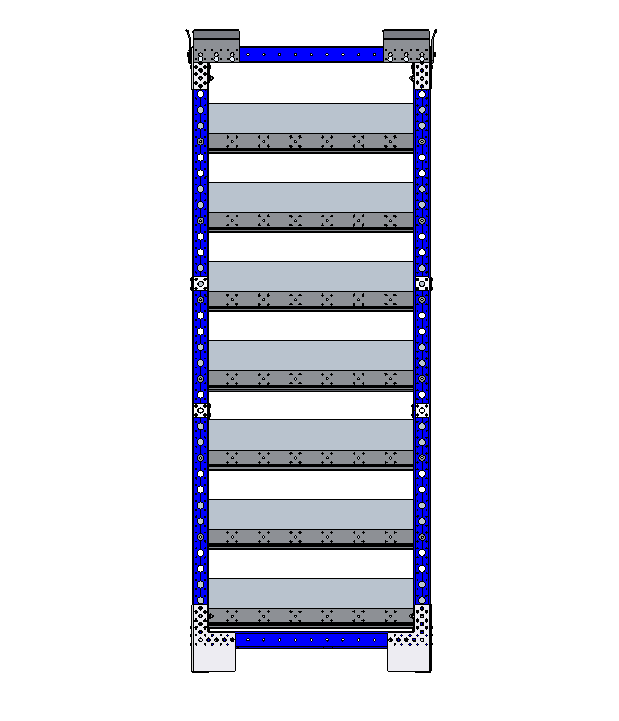

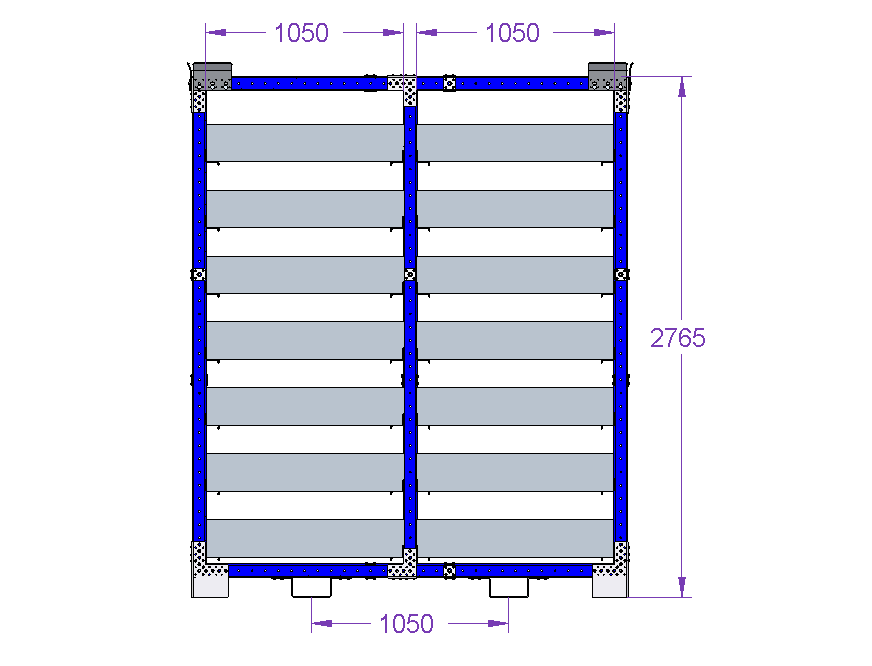

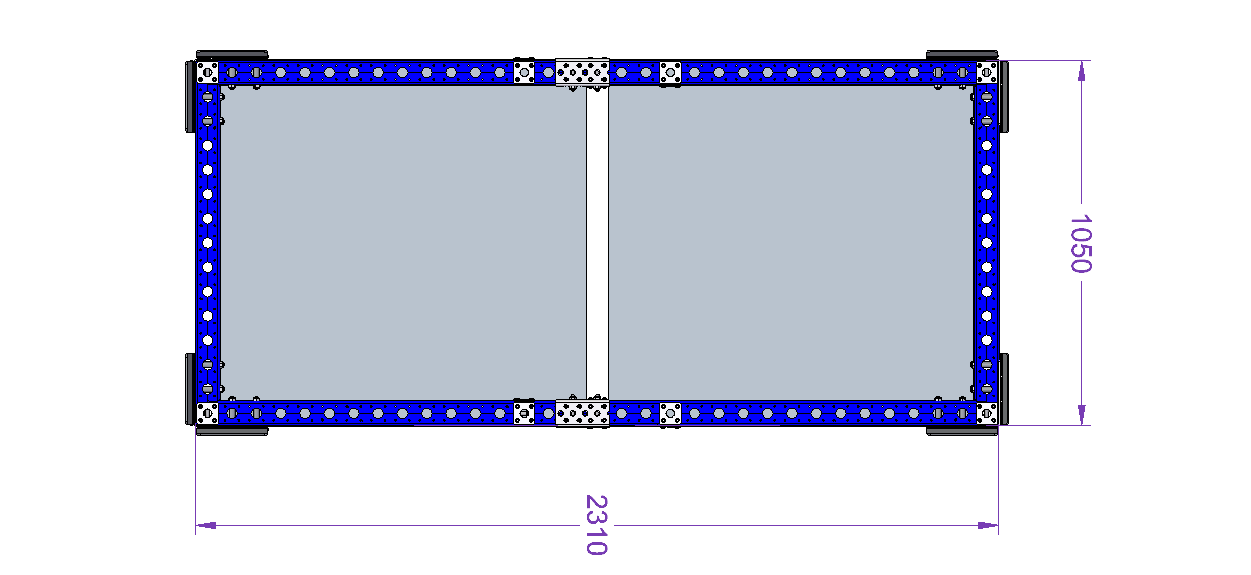

Window Cart 2310 x 1050 mm

Stackable rack used to store and transport windows or similar parts. The rack has fourteen slots and a pair of fork pockets.

Technical specifications

Category: Flat Shelf

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Length: 91 inch

Levels: 7

Load Capacity per Level: 165 lbs

Load capacity: 1157 lbs

Width: 41 inch

Transportation method: Manual

More info

This rack was designed to store and transport windows but can also be used for similar parts like boxes and lighter pallets. L-Shaped profiles are bolted to the frame on both sides on which the part then rests on. The rack has fourteen slots, fork pockets and guides allowing you to stack two or more racks on each other

Parts included
FlexBeam™ - 1540 mm 12 Q-001-1295
FlexBeam™ - 1330 mm 8 Q-001-1298
FlexBeam™ 980 mm 12 Q-001-1303
FlexBeam™ 910 mm 8 Q-001-1304
FlexBeam™ 1050 mm FE 4 Q-001-1402
FlexBeam™ 910 mm FE 4 Q-001-1404
FlexPlate™ 68 Q-002-1001
Flexplate™ M10 40 Q-002-1162
Beam to Beam - Corner Plate Foot 4 Q-005-0130
Angled plate - 1050 mm 28 Q-005-0285
Beam to Beam Corner Plate 4 Q-005-1356
Guide Plate - 204 mm 8 Q-005-1422
64 mm FlexBeam™ Collet 32 Q-005-1426
Heavy Duty Joint M10 4 Q-005-1580
Fork Guide - 210 x 100 mm 4 Q-005-1923
Locking Nut M10 60 Q-006-1042
Hex Head - M10 x 95 mm 16 Q-006-1088
Hex Head - M10 x 30 mm 4 Q-006-1161
Extra Low Head - M10 x 90 mm 36 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 424 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 224 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 5 Q-006-1410
