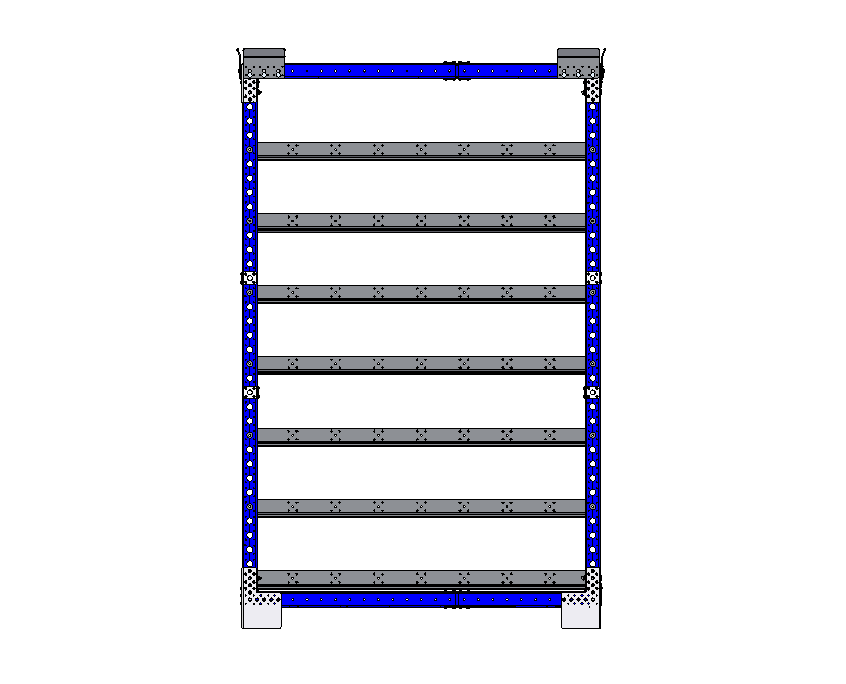

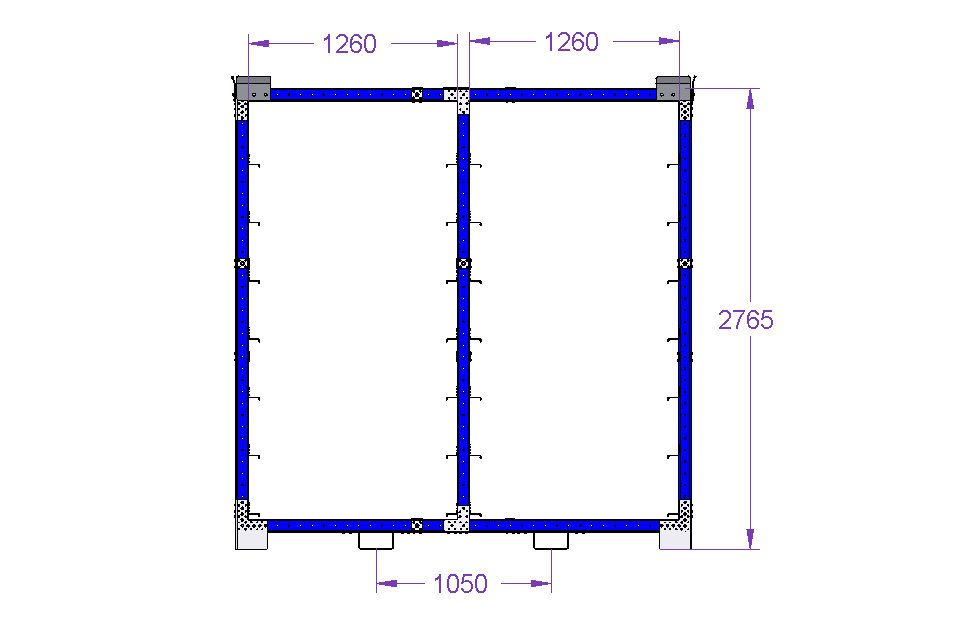

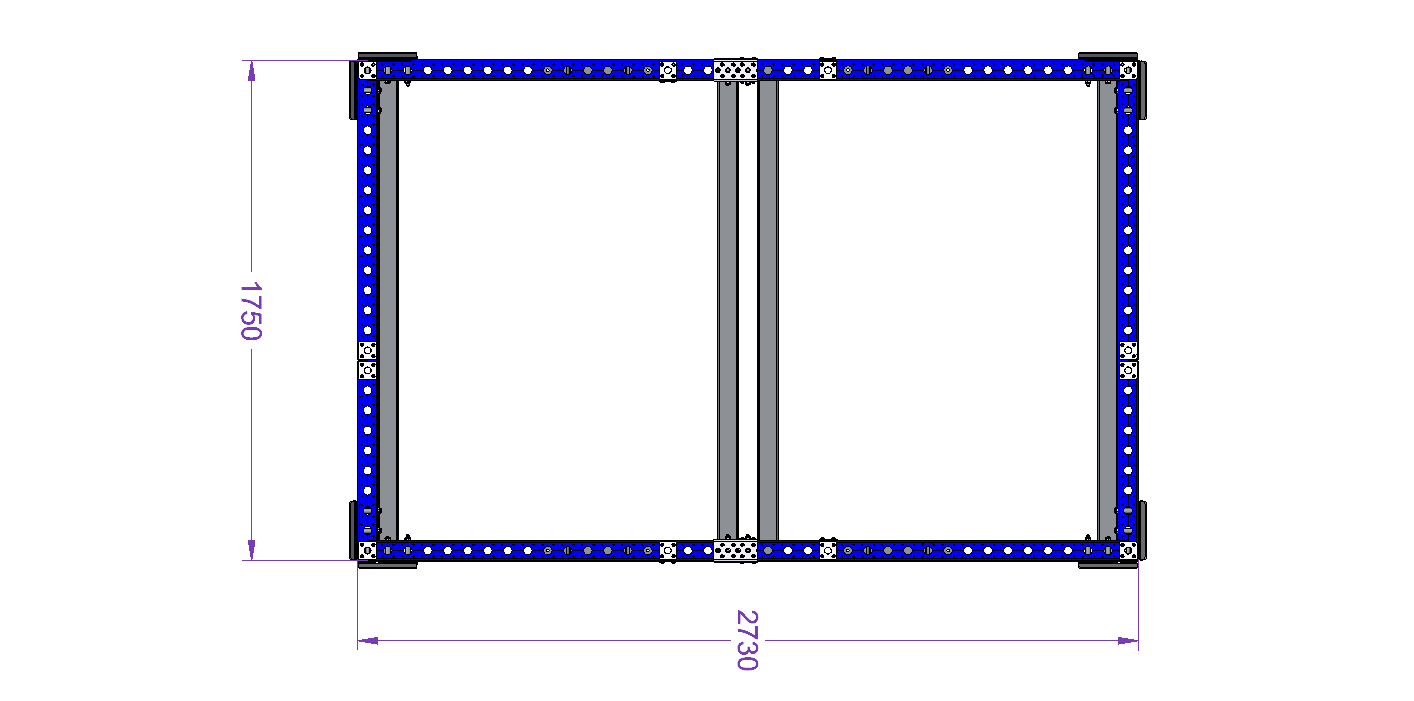

Window Cart 2730 x 1750 mm

Stackable rack used to store and transport windows or similar parts. The rack has fourteen slots and a pair of fork pockets.

Technical specifications

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Transportation method: Manual

Length: 107 inch

Width: 69 inch

Load capacity: 1157 lbs

Levels: 7

Load Capacity per Level: 165 lbs

Category: Flat Shelf

More info

This rack was designed to store and transport windows but can also be used for similar parts like boxes and lighter pallets. L-Shaped profiles are bolted to the frame on both sides on which the part then rests on. The rack has fourteen slots, fork pockets and guides allowing you to stack two or more racks on each other

Parts included
FlexBeam™ - 1610 mm 8 Q-001-1294
FlexBeam™ - 1540 mm 12 Q-001-1295
FlexBeam™ 1050 mm 8 Q-001-1302
FlexBeam™ 980 mm 12 Q-001-1303
FlexBeam™ 1050 mm FE 4 Q-001-1402
FlexBeam™ 700 mm FE 4 Q-001-1407
FlexBeam™ - 1610 mm FE 4 Q-001-1505
FlexPlate™ 84 Q-002-1001
Flexplate™ M10 40 Q-002-1162
Beam to Beam - Corner Plate Foot 4 Q-005-0130
Angled plate - 1750 mm 28 Q-005-0283
Beam to Beam Corner Plate 4 Q-005-1356
Guide Plate - 204 mm 8 Q-005-1422
64 mm FlexBeam™ Collet 32 Q-005-1426
Heavy Duty Joint M10 4 Q-005-1580
Fork Guide - 210 x 100 mm 4 Q-005-1923
Locking Nut M10 60 Q-006-1042
Hex Head - M10 x 95 mm 16 Q-006-1088
Hex Head - M10 x 30 mm 4 Q-006-1161
Extra Low Head - M10 x 90 mm 36 Q-006-1381
Self Tapping Screw M6 Torx H60 x 16 488 Q-006-1384
Countersunk Self Tapping Screw - M6 x 20 224 Q-006-1385
Extra Low Head Allen - M10 x 25 mm 4 Q-006-1410
