Q-100-1355

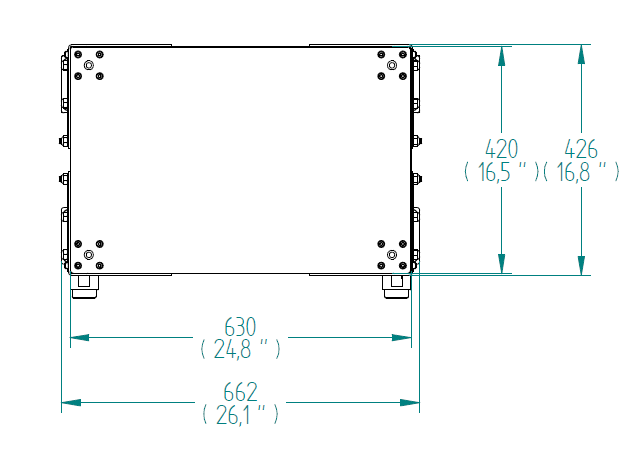

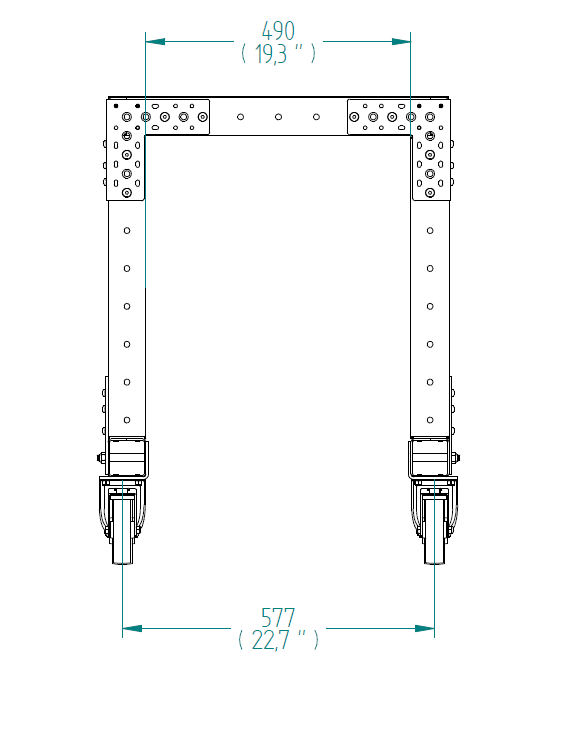

Work Table - 420 x 630 mm

This working table cart is designed to be used along assembly lines.

Technical specifications

Category: Specialized Carts

Transportation method: Manual

Industry: Automotive, Commercial Vehicles, Tier One Suppliers

Width: 17 inch

Length: 25 inch

Load capacity: 201 lbs

Caster size: 5 inch

Caster Type: Gray

More info

If you need to have a robust but flexible working table, this is the perfect option. This nice looking cart is equipped with four polyurethane/nylon casters, two of them have attached brakes and a powder-coated sheet metal table.

Parts included

FlexBeam™ 560 mm 4 Q-001-1309

FlexBeam™ 560 mm FE 4 Q-001-1409

FlexBeam™ 420 mm FE 6 Q-001-1411

125 mm Swivel Caster with Brake 2 Q-004-1364

Fixed Caster - 125 mm 2 Q-004-1365

Caster to Beam Attachment - 80 x 60 mm 4 Q-005-0265

Triangle Joint 4 Q-005-0483

Beam to Beam Corner Plate 4 Q-005-1356

64 mm FlexBeam™ Collet 16 Q-005-1426

Locking Nut M10 40 Q-006-1042

Locking Nut M8 16 Q-006-1181

M8 x 16 mm Countersunk 16 Q-006-1214

Extra Low Head - M10 x 90 mm 20 Q-006-1381

Self Tapping Screw M6 Torx H60 x 16 24 Q-006-1384

Countersunk Self Tapping Screw - M6 x 20 22 Q-006-1385

Extra Low Head Allen - M10 x 25 mm 20 Q-006-1410

Top plate - 630 x 420 mm 1 Q-016-0253
